DALE SKU # MAAU-SX118

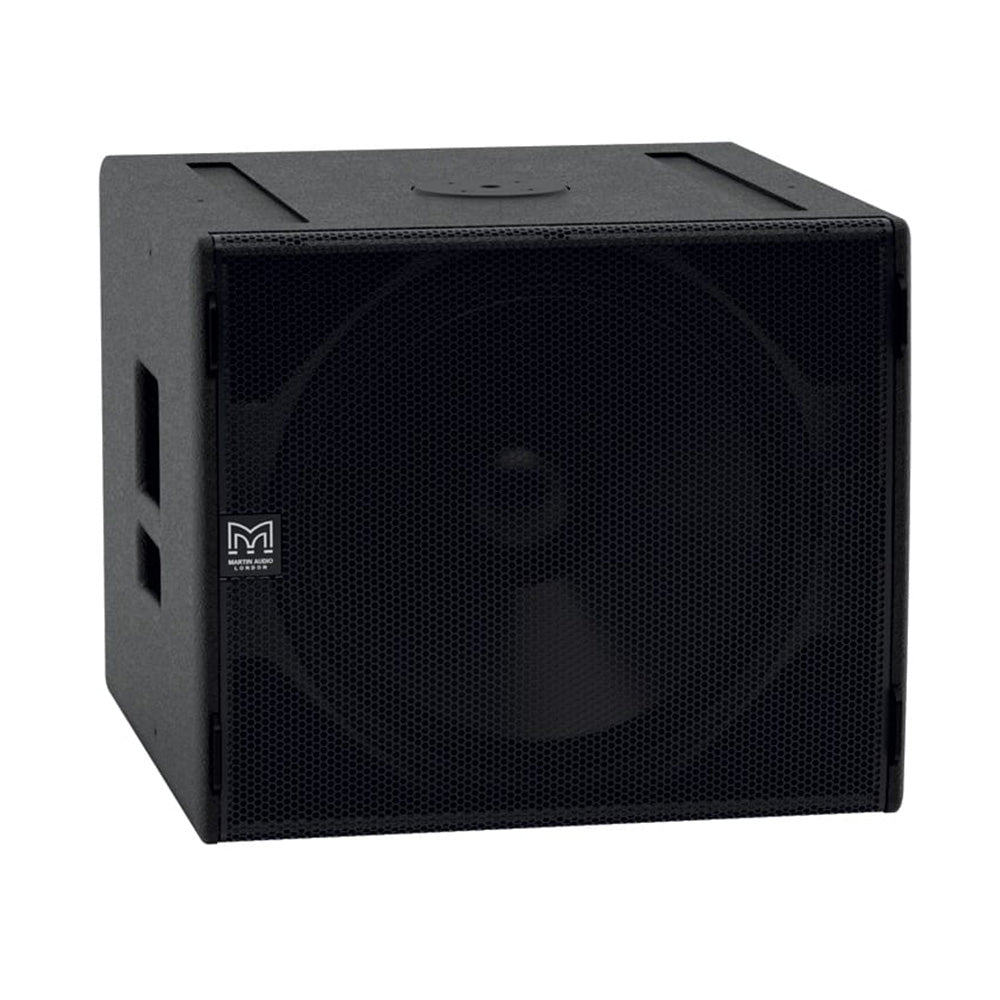

Martin Audio SX118 - Compact 18-Inch Passive Subwoofer

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.

    Features:

    • Compact, direct radiating subwoofer
    • 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • High output capability
    • Tour-grade plywood enclosure with flying inserts

    Applications:

    • Live sound reinforcement
    • Theatre sound
    • Corporate AV events


    An ideal partner for the WPM, it features a long-excursion 18" (460mm)/4" (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure.

    The design of the 18" driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. The enclosure is constructed from multi-laminate birch ply, finished with a durable textured coating and equipped with a steel grille, twin grab handles, skids, flying inserts for installation and a threaded pole socket for pole-mounting up to 4 WPM enclosures as a simple plug-and-play system.

    TYPE Compact, direct radiating subwoofer
    FREQUENCY RESPONSE 47Hz Ð 150Hz ±3dB,
    -10dB @ 41Hz
    DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    RATED POWER 1000W AES, 4000W peak
    SENSITIVITY 102dB
    MAXIMUM SPL 138dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) Omnidirectional/or Cardioid (paired)
    ENCLOSURE Multi-laminate birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel
    CONNECTORS 2 x NL4 type
    PIN CONNECTIONS (INPUT) LF: +1, -1 Link through: +2, -2
    PINS CONNECTIONS (LINK) LF: +1, -1 Link through: +2, -2
    FITTINGS
    • Two skids on base, with mating channels on top
    • Four rear-mounted 100mm (4in) castors
    • M20 top-mounted thread plate for pole mounting
    • 16 x M10 mounting points
    • 2 x bar handles, 1 on each side
    • 4 x fittings for optional transit cover
    DIMENSIONS (INCL SKIDS)
    • (W) 600mm x (H) 509mm x (D) 632mm
      (760mm including castors)
    • (W) 23.62in x (H) 20.04in x (D) 24.86in
      (29.90in including castors)
    WEIGHT 47kg (104lbs)

    The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.

    Features:

    • Compact, direct radiating subwoofer
    • 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • High output capability
    • Tour-grade plywood enclosure with flying inserts

    Applications:

    • Live sound reinforcement
    • Theatre sound
    • Corporate AV events


    An ideal partner for the WPM, it features a long-excursion 18" (460mm)/4" (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure.

    The design of the 18" driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. The enclosure is constructed from multi-laminate birch ply, finished with a durable textured coating and equipped with a steel grille, twin grab handles, skids, flying inserts for installation and a threaded pole socket for pole-mounting up to 4 WPM enclosures as a simple plug-and-play system.

    TYPE Compact, direct radiating subwoofer
    FREQUENCY RESPONSE 47Hz Ð 150Hz ±3dB,
    -10dB @ 41Hz
    DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    RATED POWER 1000W AES, 4000W peak
    SENSITIVITY 102dB
    MAXIMUM SPL 138dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) Omnidirectional/or Cardioid (paired)
    ENCLOSURE Multi-laminate birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel
    CONNECTORS 2 x NL4 type
    PIN CONNECTIONS (INPUT) LF: +1, -1 Link through: +2, -2
    PINS CONNECTIONS (LINK) LF: +1, -1 Link through: +2, -2
    FITTINGS
    • Two skids on base, with mating channels on top
    • Four rear-mounted 100mm (4in) castors
    • M20 top-mounted thread plate for pole mounting
    • 16 x M10 mounting points
    • 2 x bar handles, 1 on each side
    • 4 x fittings for optional transit cover
    DIMENSIONS (INCL SKIDS)
    • (W) 600mm x (H) 509mm x (D) 632mm
      (760mm including castors)
    • (W) 23.62in x (H) 20.04in x (D) 24.86in
      (29.90in including castors)
    WEIGHT 47kg (104lbs)
