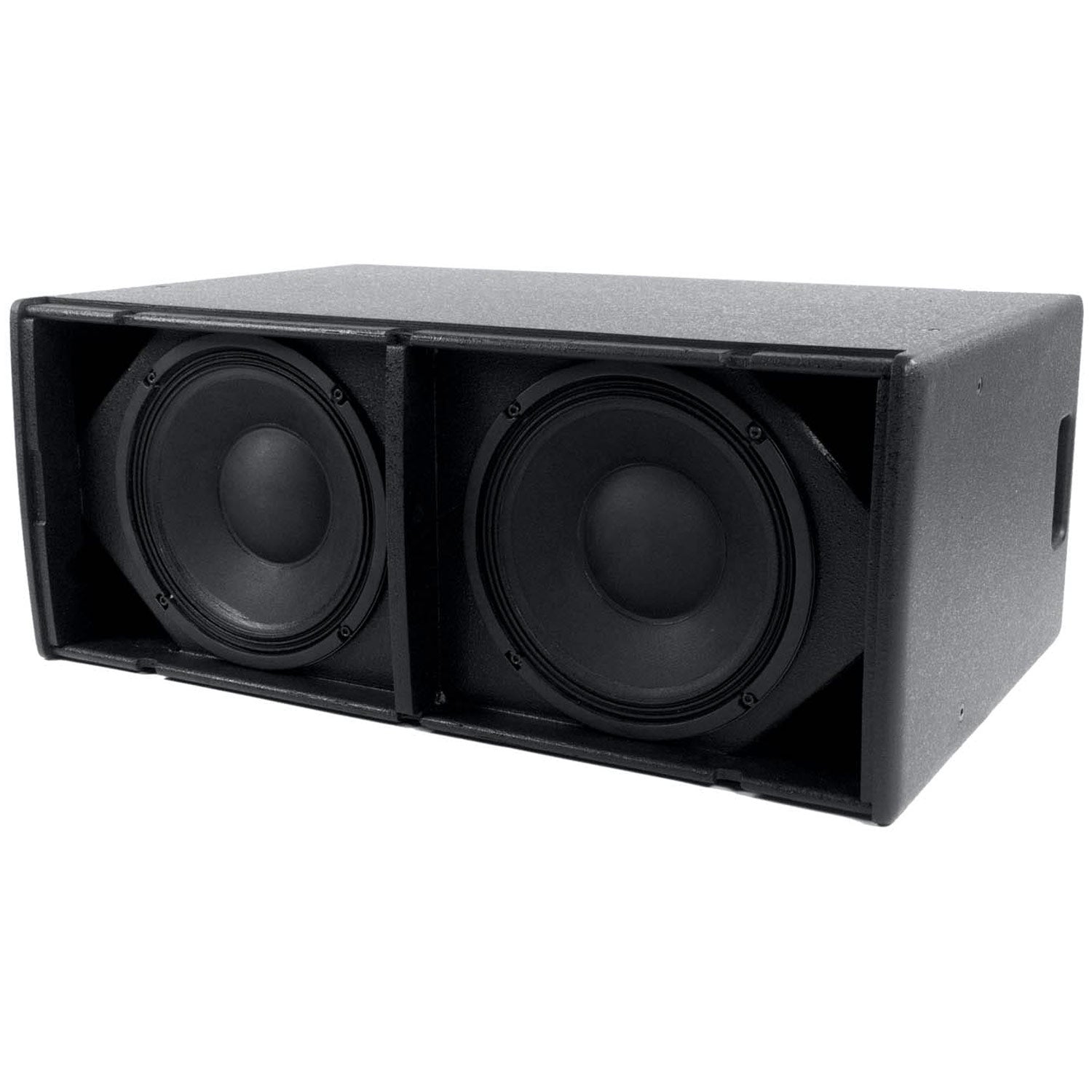

Martin Audio SX210 Slimline, Direct Radiating Subwoofer

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M10 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10" (250mm)/2" (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.

    Features:

    • Slimline direct-radiator subwoofer
    • 2 x 10" (250mm) drivers with 2" (50mm) voice coils
    • Large ports for reduced air noise
    • Perforated steel grille
    • 4? nominal impedance
    • M10 flying inserts

    The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.

    When used with full-range systems, crossover and EQ functions can be performed by the DX0.5 or DX4.0 system controller. The recommended amplifier is the VIA2502, or VIA5002 or VIA5004 depending upon the size of the overall system.

    Applications:

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Corporate AV events and conferences
    • Weddings and parties
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets
    TYPESlimline dual, direct radiating subwoofer
    FREQUENCY RESPONSE50Hz-150Hz ± 3dB, -10dB @ 42Hz
    DRIVER2 x 10" (250mm)/2" (50mm) voice coil, long excursion, ferrite magnet
    RATED POWER500W AES, 2000W peak
    SENSITIVITY103dB
    MAXIMUM SPL127dB continuous, 133dB peak (half space)
    NOMINAL IMPEDANCE4?
    DISPERSION (-6DB)Omnidirectional
    CROSSOVER80-120Hz active
    ENCLOSUREBirch/poplar ply
    FINISHBlack textured paint
    PROTECTIVE GRILLEBlack perforated steel
    CONNECTORS4 x NL4 type
    PIN CONNECTIONS (INPUT)1+/1-
    PIN CONNECTIONS (LINK)1+/- to 1+/-
    FITTINGS16 x M8 inserts, 2 x bar handles
    DIMENSIONS(W) 718mm x (H) 295mm x (D) 465mm
    (W) 28.3ins x (H) 11.4ins x (D) 18.3ins
    WEIGHT20kg (44.1lbs)

    The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M10 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10" (250mm)/2" (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.

    Features:

    • Slimline direct-radiator subwoofer
    • 2 x 10" (250mm) drivers with 2" (50mm) voice coils
    • Large ports for reduced air noise
    • Perforated steel grille
    • 4? nominal impedance
    • M10 flying inserts

    The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.

    When used with full-range systems, crossover and EQ functions can be performed by the DX0.5 or DX4.0 system controller. The recommended amplifier is the VIA2502, or VIA5002 or VIA5004 depending upon the size of the overall system.

    Applications:

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Corporate AV events and conferences
    • Weddings and parties
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets
    TYPESlimline dual, direct radiating subwoofer
    FREQUENCY RESPONSE50Hz-150Hz ± 3dB, -10dB @ 42Hz
    DRIVER2 x 10" (250mm)/2" (50mm) voice coil, long excursion, ferrite magnet
    RATED POWER500W AES, 2000W peak
    SENSITIVITY103dB
    MAXIMUM SPL127dB continuous, 133dB peak (half space)
    NOMINAL IMPEDANCE4?
    DISPERSION (-6DB)Omnidirectional
    CROSSOVER80-120Hz active
    ENCLOSUREBirch/poplar ply
    FINISHBlack textured paint
    PROTECTIVE GRILLEBlack perforated steel
    CONNECTORS4 x NL4 type
    PIN CONNECTIONS (INPUT)1+/1-
    PIN CONNECTIONS (LINK)1+/- to 1+/-
    FITTINGS16 x M8 inserts, 2 x bar handles
    DIMENSIONS(W) 718mm x (H) 295mm x (D) 465mm
    (W) 28.3ins x (H) 11.4ins x (D) 18.3ins
    WEIGHT20kg (44.1lbs)
