DALE SKU # MAAU-WPM

Martin Audio WPM - Optimized Wavefront Precision Passive Line Array Loudspeaker

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    While Martin Audio's Multi-cellular Loudspeaker Array [MLA] technology represents the ultimate in coverage control, with individually powered and processed cells within each enclosure, the scalable resolution of WPM [Wavefront Precision Mini] offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array optimisation.

    Features:

    • Ultra-compact line array
    • Scalable resolution for advanced array control
    • External, dedicated, multi-channel Class D amplification
    • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
    • Fast, integral 3-point flying systems for up to 16 enclosures
    • Side and rear handles for ease of handling and setting splay angles
    • 100° horizontal constant directivity pattern control
    • Consistent coverage achieved 'straight-out-of-the-box'
    • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
    • Improved audience coverage with reduced sound-spill

    Applications:

    • Touring sound reinforcement for small and medium-size venues
    • Fixed installations in concert halls, theatres, ballrooms and HoW
    • Sports stadium, arena installations & corporate AV events


    The WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array. It is also very powerful - 12-box array will throw beyond 35 metres (115ft) and produce live music at high levels in up to 3000-seat venues. It embodies the very latest acoustic technology in an ultra-compact enclosure and is the ideal system for small-to-medium scale theatres and live music venues, AV events and installations in concert halls, ballrooms and HoW.

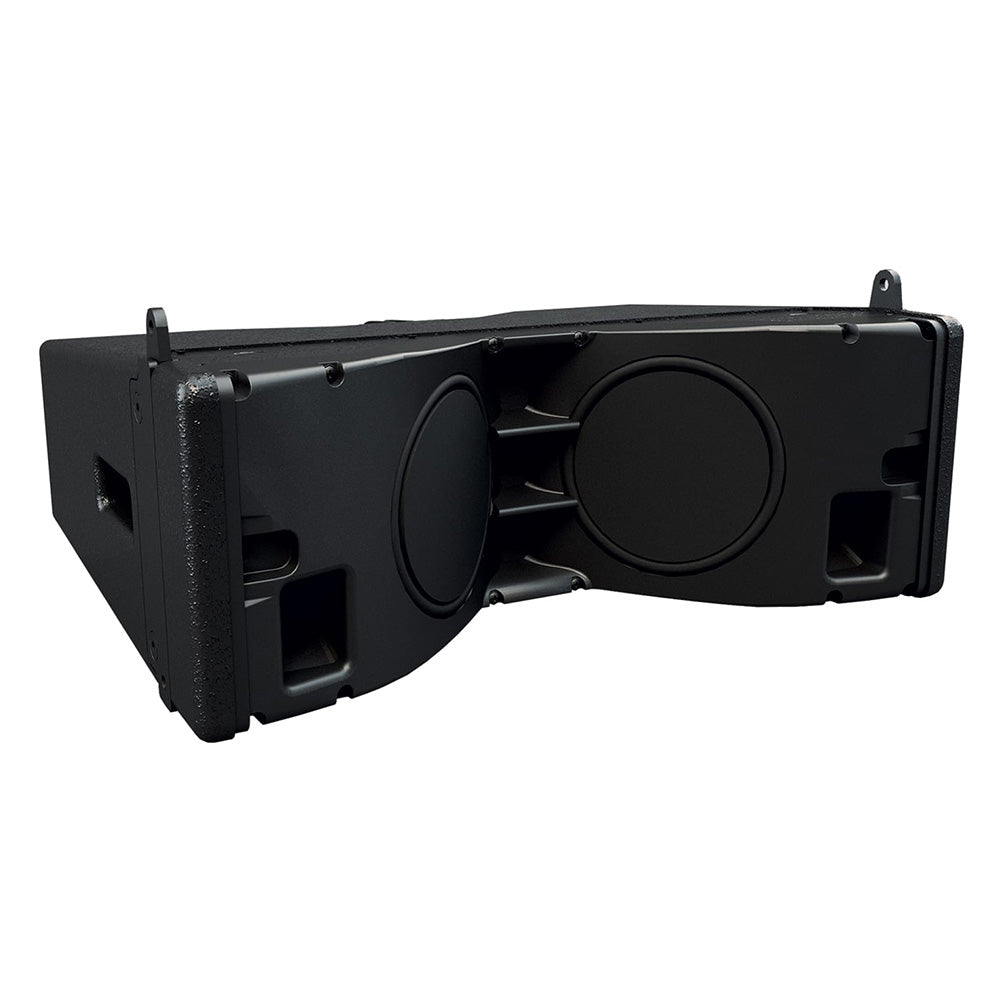

    A passive 2-way system with an impedance of 16?, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration. With a complement of 2 x 6.5" (165mm) LF drivers and a vertical column of 3 x 1.4" (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative. The LF drivers are located in the side walls of the HF horn - an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used. WPM's drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.

    In the triple-driver HF section, each individual HF wavefront is precisely-coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.

    TYPE Two-way, passive line array element
    FREQUENCY RESPONSE 76Hz-18kHz ± 3dB
    DRIVERS
    • LF:Ê2 x 6.5” (165mm) contoured-diaphragm /2” (50mm)
      edge wound CCAW voice coil, neodymium magnet drivers, reflex loaded
    • HF:Ê3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil,
      neodymium magnet compression drivers on constant directivity waveguide
    SYSTEM RESOLUTION 1 to 4 enclosures per amplifier channel
    MAXIMUM SPL 130dB peak (1 cabinet)
    NOMINAL IMPEDANCE 16½
    DISPERSION (-6DB)
    • 100¼ horizontal (-6dB), 125¼ horizontal (-10dB)
    • 10¡ vertical
    CROSSOVER 1.2kHz passive
    ENCLOSURE Vertical trapezoid with 5¼ wall angle, Multi-laminate birch and poplar-ply construction
    FINISH Black textured paint
    PROTECTIVE GRILLE Black HEX perforated steel
    CONNECTORS 2 x NL4 type
    INPUT CONNECTIONS 1+/1-
    FITTINGS
    • Integral 3-point rigging system
    • 2 x side pocket handles
    • 2 x rear grip handles
    FLOWN ARRAY MAXIMUM 16 enclosures in single array
    DIMENSIONS
    • (W) 500mm x (H) 185mm x (D) 377mm
    • (W) 19.7in x (H) 7.3in x (D) 14.8in
    WEIGHT 14kg (30.9lbs)

    While Martin Audio's Multi-cellular Loudspeaker Array [MLA] technology represents the ultimate in coverage control, with individually powered and processed cells within each enclosure, the scalable resolution of WPM [Wavefront Precision Mini] offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array optimisation.

    Features:

    • Ultra-compact line array
    • Scalable resolution for advanced array control
    • External, dedicated, multi-channel Class D amplification
    • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
    • Fast, integral 3-point flying systems for up to 16 enclosures
    • Side and rear handles for ease of handling and setting splay angles
    • 100° horizontal constant directivity pattern control
    • Consistent coverage achieved 'straight-out-of-the-box'
    • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
    • Improved audience coverage with reduced sound-spill

    Applications:

    • Touring sound reinforcement for small and medium-size venues
    • Fixed installations in concert halls, theatres, ballrooms and HoW
    • Sports stadium, arena installations & corporate AV events


    The WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array. It is also very powerful - 12-box array will throw beyond 35 metres (115ft) and produce live music at high levels in up to 3000-seat venues. It embodies the very latest acoustic technology in an ultra-compact enclosure and is the ideal system for small-to-medium scale theatres and live music venues, AV events and installations in concert halls, ballrooms and HoW.

    A passive 2-way system with an impedance of 16?, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration. With a complement of 2 x 6.5" (165mm) LF drivers and a vertical column of 3 x 1.4" (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative. The LF drivers are located in the side walls of the HF horn - an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used. WPM's drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.

    In the triple-driver HF section, each individual HF wavefront is precisely-coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.

    TYPE Two-way, passive line array element
    FREQUENCY RESPONSE 76Hz-18kHz ± 3dB
    DRIVERS
    • LF:Ê2 x 6.5” (165mm) contoured-diaphragm /2” (50mm)
      edge wound CCAW voice coil, neodymium magnet drivers, reflex loaded
    • HF:Ê3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil,
      neodymium magnet compression drivers on constant directivity waveguide
    SYSTEM RESOLUTION 1 to 4 enclosures per amplifier channel
    MAXIMUM SPL 130dB peak (1 cabinet)
    NOMINAL IMPEDANCE 16½
    DISPERSION (-6DB)
    • 100¼ horizontal (-6dB), 125¼ horizontal (-10dB)
    • 10¡ vertical
    CROSSOVER 1.2kHz passive
    ENCLOSURE Vertical trapezoid with 5¼ wall angle, Multi-laminate birch and poplar-ply construction
    FINISH Black textured paint
    PROTECTIVE GRILLE Black HEX perforated steel
    CONNECTORS 2 x NL4 type
    INPUT CONNECTIONS 1+/1-
    FITTINGS
    • Integral 3-point rigging system
    • 2 x side pocket handles
    • 2 x rear grip handles
    FLOWN ARRAY MAXIMUM 16 enclosures in single array
    DIMENSIONS
    • (W) 500mm x (H) 185mm x (D) 377mm
    • (W) 19.7in x (H) 7.3in x (D) 14.8in
    WEIGHT 14kg (30.9lbs)
