DALE SKU # MAAU-WPS

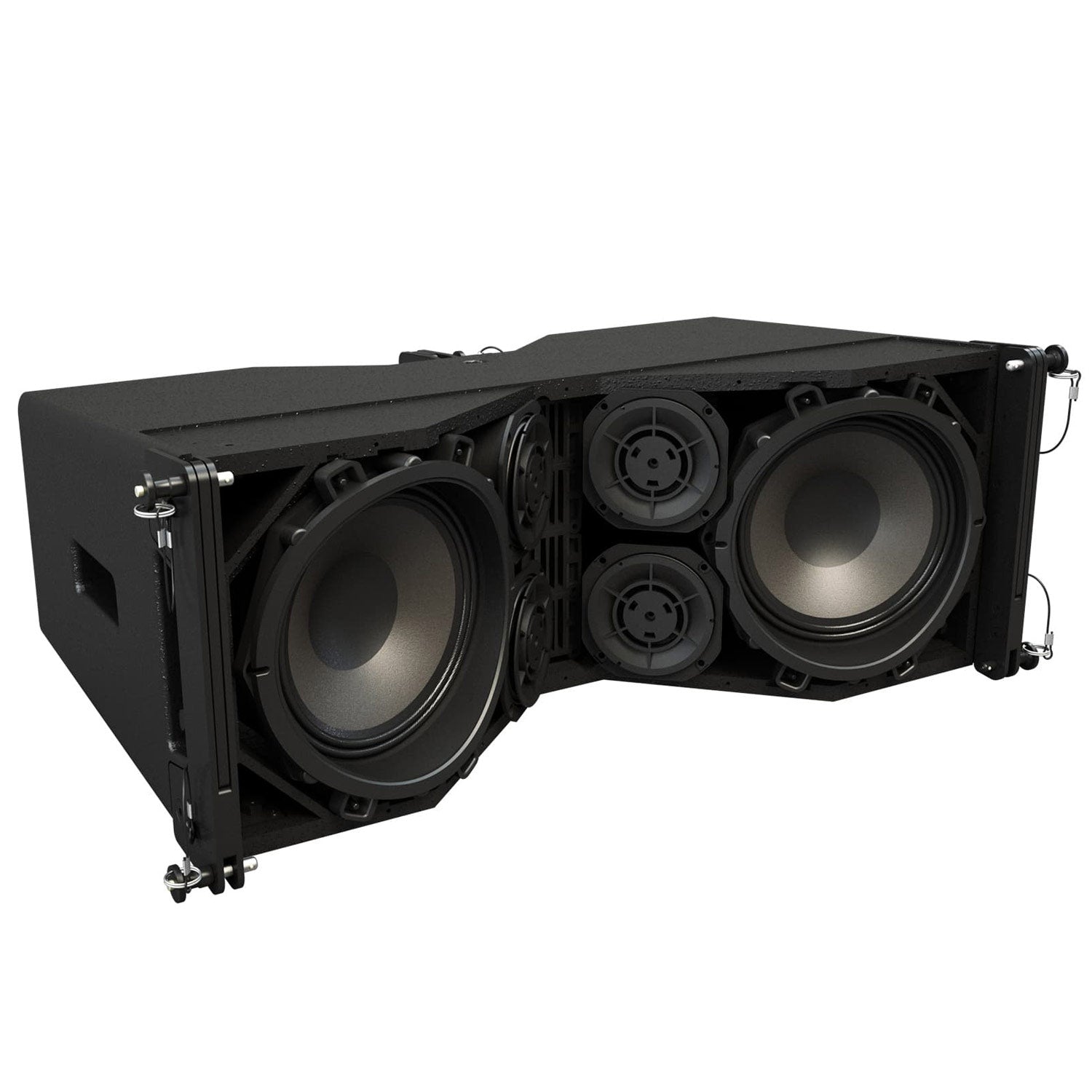

Martin Audio WPS Optimised 3-Way Line Array Loudspeaker

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The scalable resolution of WPS offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array control.

    Features:

    • Ultra-compact line array
    • Scalable resolution for advanced array control
    • External, dedicated, multi-channel Class D amplification
    • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
    • Fast, integral 3-point flying systems for up to 16 enclosures
    • Side and rear handles for ease of handling and setting splayangles
    • 100° horizontal constant directivity pattern control

    The WPS is a versatile, state-ot-the-art line array with a peak SPL of 133dB and is designed for small-to-medium scale touring and install applications that require a high output array with reduced weight and footprint. With exemplary coverage consistency and superb sound performance, the flexibility of WPS makes it an ideal system for live sound reinforcement and installations in theatres, concert halls and Houses of Worship. Return-on-investment within a rental company’s inventory is maximised by also deploying WPS arrays as front-fill, delay or side-hang support for larger WP systems.

    WPS is a passive 3-way system which integrates a high density of drive units in a very compact enclosure. It features 2 x 8" (200mm) LF drivers, 4 x 4" (100mm) midrange drivers and 4 x 1" (25mm) exit HF compression drivers loaded by a moulded HF horn which occupies the full width of the enclosure — defining the 100° horizontal constant directivity coverage pattern of both the HF and midrange sections.

    The 4" midrange drivers are compression-loaded to raise efficiency and enter the horn walls via annular slots close to the HF throat to sum effectively with the HF wavefront. In the HF section, four 1" exit compression drivers deliver pristine high frequency sound without the harshness and distortion associated with larger format devices.

    The 8" LF drivers are set back behind the walls of the HF horn, with a small volume of air in front of each driver increasing the output at the upper end of its operating range. The LF exit apertures are spaced apart horizontally to provide useful LF horizontal pattern control.

    For extended low frequency performance, WPS is designed to be partnered with the SXC118 cardioid subwoofer or its flyable variant, the SXCF118.

    Benefits:

    • Consistent coverage achieved 'straight-out-of-the-box'
    • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
    • Improved audience coverage with reduced sound-spill

    Applications:

    • Touring sound reinforcement for small and medium-size venues
    • Fixed installations in concert halls, theatres, ballrooms and HoW
    • Sports stadium, arena installations & corporate AV events
    TYPEThree-way, passive line array element
    FREQUENCY RESPONSE (5)70Hz-18000Hz ± 3dB
    DRIVERSLF: 2 x 8" (200mm)/2" (50mm) voice coil, long excursion, vented yoke, neodymium magnet drivers
    MF: 4 x 4" (100mm)/1" (25mm) coil, neodymium magnet drivers, compression loaded
    HF: 4 x 1" (25mm) exit/1.4" (35mm) HT Polymer diaphragm, neodymium magnet compression drivers
    SYSTEM AMPLIFIERiKON iK42
    SYSTEM RESOLUTION1 to 3 enclosures per amplifier channel (iK42)
    MAXIMUM SPL (9)133dB peak
    NOMINAL IMPEDANCE6?
    DISPERSION (-6DB)100¼ horizontal (-6dB), 120¼ horizontal (-10dB) - 10¡ vertical
    CROSSOVER520Hz, 1.6kHz internal passive
    ENCLOSUREVertical trapezoid with 5¼ wall angle, multi-laminate birch and poplar-ply construction
    FINISHBlack textured paint
    PROTECTIVE GRILLEBlack HEX perforated steel
    CONNECTORS2 x NL4 type
    INPUT CONNECTIONS1+/1-
    FITTINGS3-point rigging system
    2 x side pocket handles
    2 x rear grip handles
    FLOWN ARRAY MAXIMUM16 (installation) and 24 (touring) enclosures in a single array
    DIMENSIONS(W) 650mm x (H) 261mm x (D) 400mm
    (W) 25.6in x (H) 10.3in x (D) 15.8in
    WEIGHT27kg (60lbs)

    The scalable resolution of WPS offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array control.

    Features:

    • Ultra-compact line array
    • Scalable resolution for advanced array control
    • External, dedicated, multi-channel Class D amplification
    • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
    • Fast, integral 3-point flying systems for up to 16 enclosures
    • Side and rear handles for ease of handling and setting splayangles
    • 100° horizontal constant directivity pattern control

    The WPS is a versatile, state-ot-the-art line array with a peak SPL of 133dB and is designed for small-to-medium scale touring and install applications that require a high output array with reduced weight and footprint. With exemplary coverage consistency and superb sound performance, the flexibility of WPS makes it an ideal system for live sound reinforcement and installations in theatres, concert halls and Houses of Worship. Return-on-investment within a rental company’s inventory is maximised by also deploying WPS arrays as front-fill, delay or side-hang support for larger WP systems.

    WPS is a passive 3-way system which integrates a high density of drive units in a very compact enclosure. It features 2 x 8" (200mm) LF drivers, 4 x 4" (100mm) midrange drivers and 4 x 1" (25mm) exit HF compression drivers loaded by a moulded HF horn which occupies the full width of the enclosure — defining the 100° horizontal constant directivity coverage pattern of both the HF and midrange sections.

    The 4" midrange drivers are compression-loaded to raise efficiency and enter the horn walls via annular slots close to the HF throat to sum effectively with the HF wavefront. In the HF section, four 1" exit compression drivers deliver pristine high frequency sound without the harshness and distortion associated with larger format devices.

    The 8" LF drivers are set back behind the walls of the HF horn, with a small volume of air in front of each driver increasing the output at the upper end of its operating range. The LF exit apertures are spaced apart horizontally to provide useful LF horizontal pattern control.

    For extended low frequency performance, WPS is designed to be partnered with the SXC118 cardioid subwoofer or its flyable variant, the SXCF118.

    Benefits:

    • Consistent coverage achieved 'straight-out-of-the-box'
    • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
    • Improved audience coverage with reduced sound-spill

    Applications:

    • Touring sound reinforcement for small and medium-size venues
    • Fixed installations in concert halls, theatres, ballrooms and HoW
    • Sports stadium, arena installations & corporate AV events
    TYPEThree-way, passive line array element
    FREQUENCY RESPONSE (5)70Hz-18000Hz ± 3dB
    DRIVERSLF: 2 x 8" (200mm)/2" (50mm) voice coil, long excursion, vented yoke, neodymium magnet drivers
    MF: 4 x 4" (100mm)/1" (25mm) coil, neodymium magnet drivers, compression loaded
    HF: 4 x 1" (25mm) exit/1.4" (35mm) HT Polymer diaphragm, neodymium magnet compression drivers
    SYSTEM AMPLIFIERiKON iK42
    SYSTEM RESOLUTION1 to 3 enclosures per amplifier channel (iK42)
    MAXIMUM SPL (9)133dB peak
    NOMINAL IMPEDANCE6?
    DISPERSION (-6DB)100¼ horizontal (-6dB), 120¼ horizontal (-10dB) - 10¡ vertical
    CROSSOVER520Hz, 1.6kHz internal passive
    ENCLOSUREVertical trapezoid with 5¼ wall angle, multi-laminate birch and poplar-ply construction
    FINISHBlack textured paint
    PROTECTIVE GRILLEBlack HEX perforated steel
    CONNECTORS2 x NL4 type
    INPUT CONNECTIONS1+/1-
    FITTINGS3-point rigging system
    2 x side pocket handles
    2 x rear grip handles
    FLOWN ARRAY MAXIMUM16 (installation) and 24 (touring) enclosures in a single array
    DIMENSIONS(W) 650mm x (H) 261mm x (D) 400mm
    (W) 25.6in x (H) 10.3in x (D) 15.8in
    WEIGHT27kg (60lbs)
