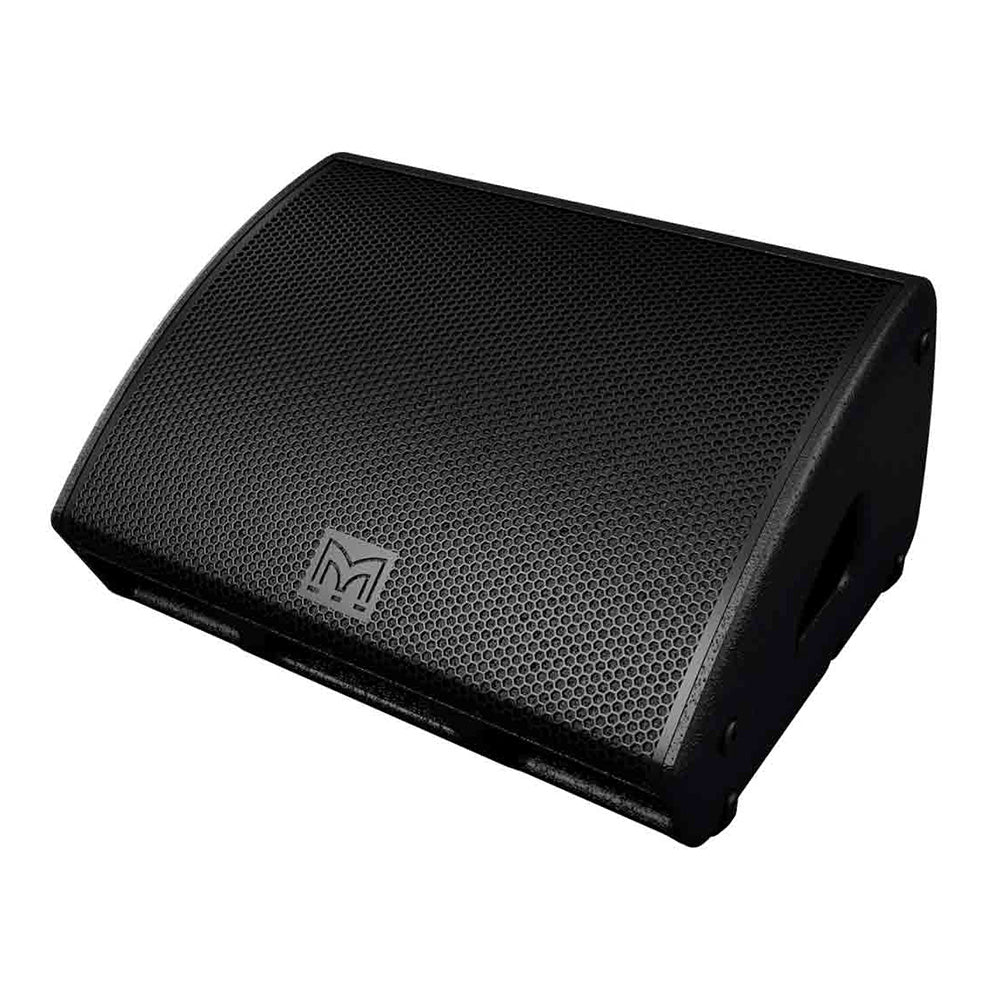

Martin Audio XE300 Bi-Ampable Passive 2-Way Coaxial Stage Monitor


  • Dale #:

    MAAU-XE300
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The XE300 is the definitive, high-performance compact monitor. It features a high-specification 12" (300mm) LF /1.4" exit HF Coaxial Differential Dispersion driver to deliver perfect sound over the artist's listening plane. The LF driver section has a 3" (75mm) voice coil and efficient motor with... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The XE300 is the definitive, high-performance compact monitor. It features a high-specification 12" (300mm) LF /1.4" exit HF Coaxial Differential Dispersion driver to deliver perfect sound over the artist's listening plane. The LF driver section has a 3" (75mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.4" (35mm) exit HF compression driver with a 3" (75mm) pure titanium diaphragm.

Features:

  • Very high-SPL, compact two-way stage monitor
  • Coaxial 'point source' performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, rectangular coverage plane at head-height
  • Complete system with iK42 for consistent high performance
  • Visually-appealing, low-profile plywood enclosures
  • Built-in risers for steeper monitor angle when required
  • Side panel rubber feet for extra protection when up-ended
  • Easy to carry and manoeuvre
  • M8 rigging inserts


The unique Coaxial Differential Dispersion technology produces a horizontal coverage pattern which varies from 60° when the performer is directly over the monitor, narrowing to 30° further back. This narrowing delivers a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.

The XE300 enclosure is constructed from multi-laminate birch ply, with integral ergonomic handles and finished with a hard-wearing paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet on the base prevent movement onstage with additional rubber feet on the side panels providing added protection if the monitor is upended when carrying.

Frontal reflex ports couple with the floor to increase LF output and inbuilt risers can be used to increase the monitoring angle for longer-throw applications.

XE Series monitors are designed as a complete system with the iK42 4-channel Class D Amplifier, offering a unique combination of power and audio performance seamlessly combined with advanced DSP, proprietary VU-NET™ software control and Dante™ digital audio networking. State of the art components and a finely optimised design results in generous power reserves that ensures pristine sound quality is maintained even under the most extreme conditions. As well as maximising the capability of the monitor, this ensures that the monitor engineer and artist can be confident that they will experience this same high level of consistent performance from an XE monitor anywhere in the world.

More +

Product Specs

TYPE Two-way, bi-amp/passive, Coaxial Differential Dispersion Stage Monitor
FREQUENCY RESPONSE (5) 67Hz-18kHz ± 3dB,
-10dB @ 55Hz
DRIVERS
  • LF: 12” (300mm)/3” (75mm) voice coil, dual-gap neodymium motor system
  • HF: 1.4” (35mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER (2)
  • LF: 350W AES, 1400W peak
  • HF: 80W AES, 320W peak
MAXIMUM SPL (9) Bi-amp: 140dB peak. Passive: 139dB peak
SYSTEM AMPLIFIER iKON® iK42
NOMINAL IMPEDANCE
  • LF/FR: 6Ω
  • HF: 8Ω
DISPERSION (-6DB) 60-30° horizontal, 90° vertical
CROSSOVER 1.1kHz
ENCLOSURE Birch/beech ply and hardwood
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
BAFFLE ANGLE 27.5° (40° with risers)
CONNECTORS 4 x NL4 type
PIN CONNECTIONS LF/FR: 1+/-, HF: 2+/-
FITTINGS
  • 2 x pocket handles
  • Protective rubber feet on base and sides
  • Built-in risers
  • 4 x M8 inserts
DIMENSIONS (W) 550mm x (H) 290mm x (D) 470mm
(W) 21.7ins x (H) 11.4ins x (D) 18.5ins
DIMENSIONS INCL FEET (W) 556mm x (H) 293mm) x (D) 470mm
(W) 21.9ins x (H) 11.5ins x (D) 18.5ins
WEIGHT 19kg (41.9lbs)
