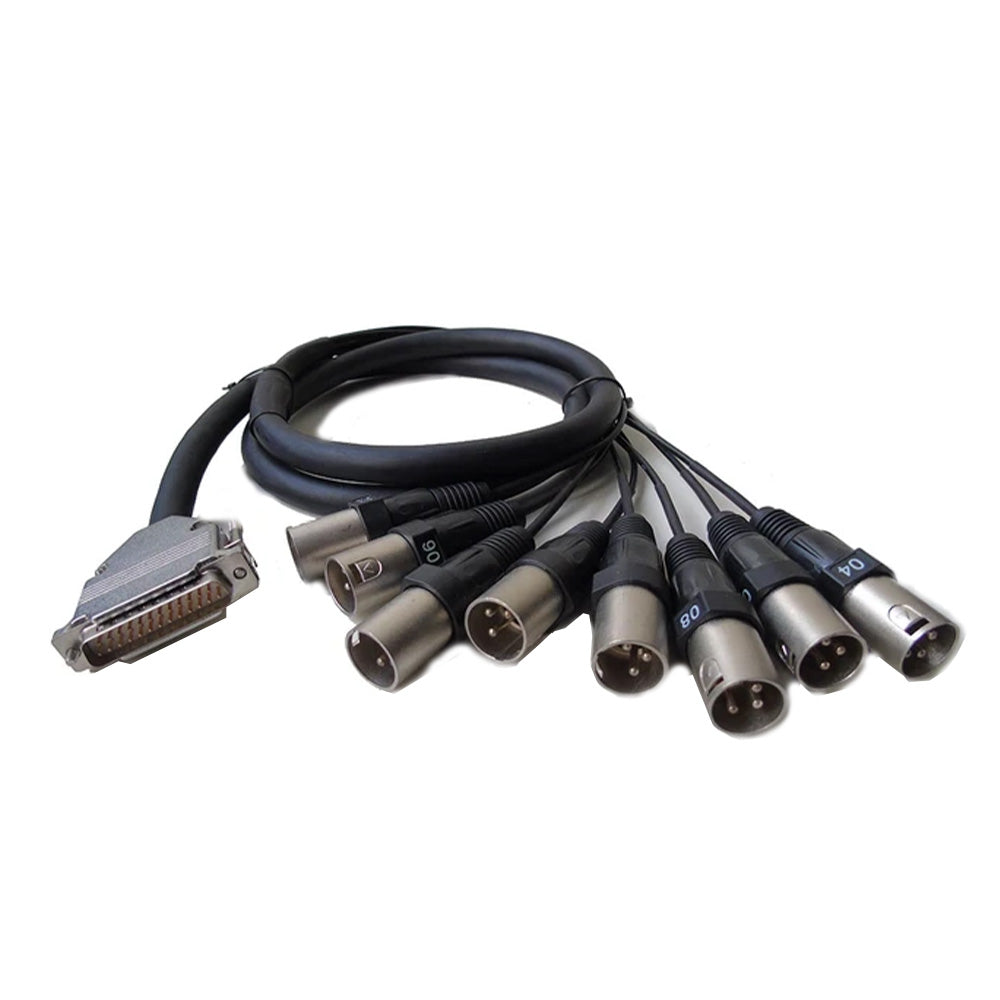

Merging Technologies CON-D25-XLRM - DB25 to 8 XLR Male Output Snake
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IOC-DA8(P) modules connect the line outputs using DB25 D-SUB connections.
To connect the DSUB connection to the module, align the Male cable connector with the female DSUB port on the module. Then, with slight pressure, guide the connector into place. If your DSUB connector has retention screws on either side, then fasten them finger-tight once the connector has been pushed into place. Note: The pinout of the DB-25 is as per AES59 (Tascam Analog).
* THESE CONNECTIONS ARE NOT MEANT TO SUPPORT ANY SIGNIFICANT WEIGHT.* Ensure that there is no strain from the connected cable as any significant pressure on the module's DSUB connector could damage the Hapi unit.
The IOC-DA8(P) modules connect the line outputs using DB25 D-SUB connections.
To connect the DSUB connection to the module, align the Male cable connector with the female DSUB port on the module. Then, with slight pressure, guide the connector into place. If your DSUB connector has retention screws on either side, then fasten them finger-tight once the connector has been pushed into place. Note: The pinout of the DB-25 is as per AES59 (Tascam Analog).
* THESE CONNECTIONS ARE NOT MEANT TO SUPPORT ANY SIGNIFICANT WEIGHT.* Ensure that there is no strain from the connected cable as any significant pressure on the module's DSUB connector could damage the Hapi unit.
