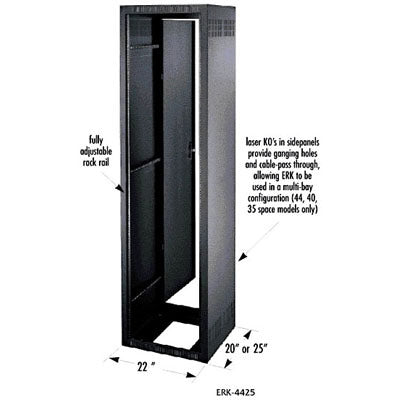

Middle Atlantic ERK-2720 - 27 Space Stand Alone Rack Enclosure
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This Middle Atlantic ERK 19" Stand-Alone Enclosure ERK-2720 is a fully welded steel rack with 27U capacity designed to hold 19" wide equipment. Its steel frame and 1/8" thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 650 lb. of essential equipment when used in conjunction with ERK-Z4 brackets.
This rack comes standard with (1) pair of 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The top plate additionally includes a UHF/VHF knockout. A large cable entry point is included in the bottom panel with grounding/bonding studs in the base. This model also features a solid top with fan knockouts and a solid rear door.
This enclosure system is gang-able, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as optional rear rackrails and a vented door. This model is UL Listed in the United States and Canada.
| " | Solid Construction |
| All-steel construction and structural-steel braces guarantee exceptional strength and years of use. |
|
| " | Seismic Certified |
| Protects up to 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets. |
|
| " | No-Clog, Rack-Rail Threads |
| All rack rails finished in durable "e-coat" to prevent clogged threads. |
|
| " | Industry-Standard Design |
| Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment. |
|
| " | Customization |
| Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system. |
|
| " | Pre-Installed Washers |
| Pre-installed washers on all 10-32 threaded rackscrews save installation time. |
|
| " | Grounding/Bonding Studs |
| Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards. |
|
| " | Free Layout & Specifications Software |
| RackTools free layout and specification software included for effective system design help. |
|
| " | Quality Guaranteed |
| Limited Lifetime Warranty to Original Purchaser |
| Construction | Welded, steel frame and 1/8" thick, structural-steel, internal braces |
| Finish | Durable Black Textured Powder Coat |
| Shelf | Not Included |
| Cabinet | Accepts 19" Equipment (Width) Depth 20" Capacity 47-1/2" (27U) |
| Mobility | N/A |
| Dimensions (WxHxD) | 19" x 51-3/8" x 20" |
| Weight Capacity | 2,500 lb (1134 kg) |
| Weight | 116 lbs |
This Middle Atlantic ERK 19" Stand-Alone Enclosure ERK-2720 is a fully welded steel rack with 27U capacity designed to hold 19" wide equipment. Its steel frame and 1/8" thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 650 lb. of essential equipment when used in conjunction with ERK-Z4 brackets.
This rack comes standard with (1) pair of 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The top plate additionally includes a UHF/VHF knockout. A large cable entry point is included in the bottom panel with grounding/bonding studs in the base. This model also features a solid top with fan knockouts and a solid rear door.
This enclosure system is gang-able, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as optional rear rackrails and a vented door. This model is UL Listed in the United States and Canada.
| " | Solid Construction |
| All-steel construction and structural-steel braces guarantee exceptional strength and years of use. |
|
| " | Seismic Certified |
| Protects up to 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets. |
|
| " | No-Clog, Rack-Rail Threads |
| All rack rails finished in durable "e-coat" to prevent clogged threads. |
|
| " | Industry-Standard Design |
| Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment. |
|
| " | Customization |
| Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system. |
|
| " | Pre-Installed Washers |
| Pre-installed washers on all 10-32 threaded rackscrews save installation time. |
|
| " | Grounding/Bonding Studs |
| Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards. |
|
| " | Free Layout & Specifications Software |
| RackTools free layout and specification software included for effective system design help. |
|
| " | Quality Guaranteed |
| Limited Lifetime Warranty to Original Purchaser |
| Construction | Welded, steel frame and 1/8" thick, structural-steel, internal braces |
| Finish | Durable Black Textured Powder Coat |
| Shelf | Not Included |
| Cabinet | Accepts 19" Equipment (Width) Depth 20" Capacity 47-1/2" (27U) |
| Mobility | N/A |
| Dimensions (WxHxD) | 19" x 51-3/8" x 20" |
| Weight Capacity | 2,500 lb (1134 kg) |
| Weight | 116 lbs |
