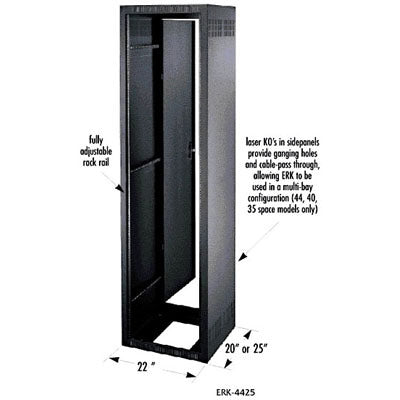

Middle Atlantic ERK-2725 - 27 Space Stand Alone Rack Enclosure


  • Dale #:

    MIDD-ERK2725
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

This Middle Atlantic ERK 19 Stand-Alone Enclosure ERK-2725 is a fully welded steel rack with 27U capacity designed to hold 19 wide equipment. Its steel frame and 1/8 thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to p... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

This Middle Atlantic ERK 19 Stand-Alone Enclosure ERK-2725 is a fully welded steel rack with 27U capacity designed to hold 19 wide equipment. Its steel frame and 1/8 thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 650 lb. of essential equipment when used in conjunction with ERK-Z4 brackets.

This rack comes standard with (1) pair of 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2, 3/4, 1 and 1-1/2 openings). The top plate additionally includes a UHF/VHF knockout. A large cable entry point is included in the bottom panel with grounding/bonding studs in the base. This model also features a solid top with fan knockouts and a solid rear door.

This enclosure system is gang-able, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as optional rear rackrails and a vented door. This model is UL Listed in the United States and Canada.


Features:
  • Solid Construction -
  • All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
  • Seismic Certified -
  • Protects up to 1,000 lbs. of essential equipment when used in conjunction with MRK-Z4 brackets.
  • No-Clog, Rack-Rail Threads -
  • All rack rails finished in durable "e-coat" to prevent clogged threads.
  • Industry-Standard Design -
  • Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
  • Customization -
  • Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
  • Pre-Installed Washers -
  • Pre-installed washers on all 10-32 threaded rackscrews save installation time.
  • Grounding/Bonding Studs -
  • Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
  • UL Listed -
  • This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
  • Free Layout & Specifications Software -
  • RackTools free layout and specification software included for effective system design help.
  • Quality Guaranteed -
  • Limited Lifetime Warranty to Original Purchaser

    More +

    Product Specs

    ConstructionWelded, steel frame and 1/8 thick, structural-steel, internal braces
    FinishDurable Black Textured Powder Coat
    ShelfNot Included
    CabinetAccepts 19 Equipment (Width)
    Depth 25"
    Capacity 47-1/2 (27U)
    MobilityN/A
    Dimensions (WxHxD)22 x 51-3/8 x 25"
    Weight Capacity2,500 lb (1134 kg)
    Weight132 lbs
