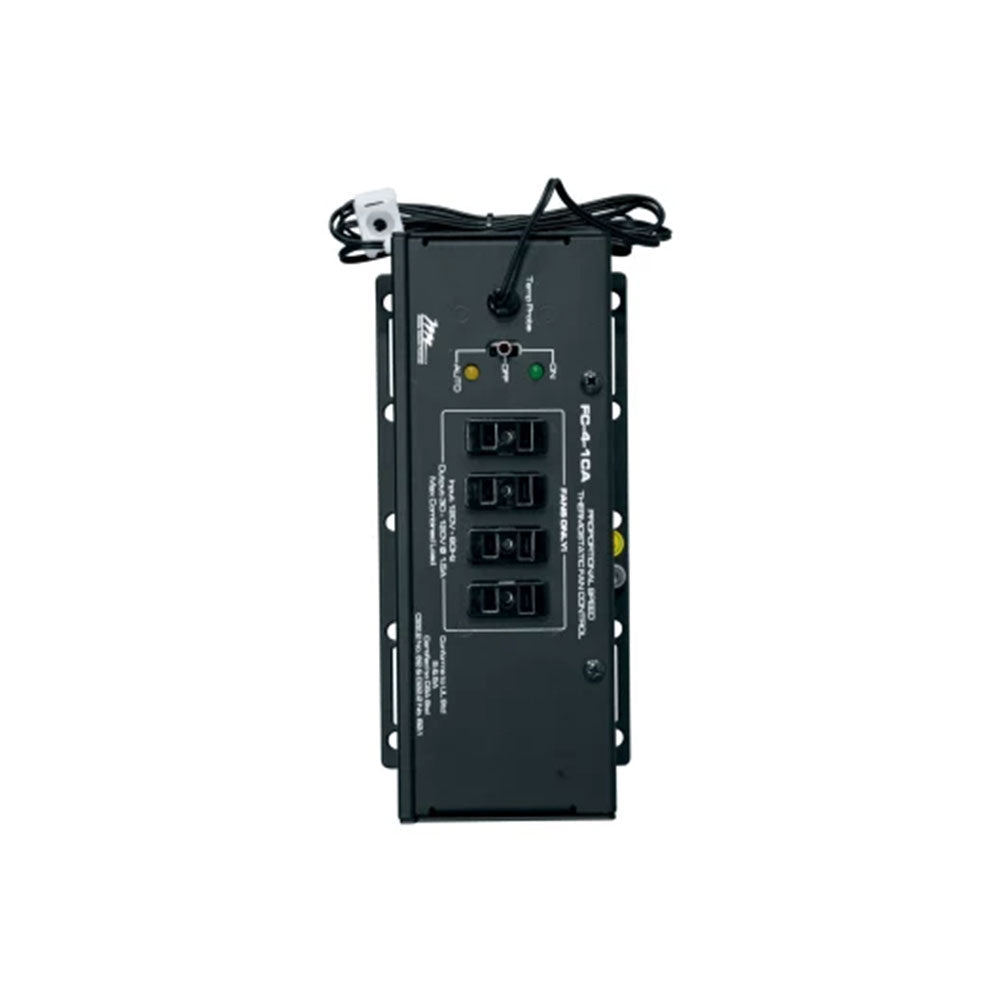

Middle Atlantic FC-4-1CA - Thermostatic Fan Controller (4 Fans)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Proportional speed thermostatic fan control extends both equipment and fan life and reduces service calls by varying the fan speed of up to four fans based on temperature. The fan control includes 3 user selectable temperature ranges, a local on/off switch, status LEDs, and a temperature probe with a 5 ft. wire. This control is designed to work specifically with AC fans that are offered by Middle Atlantic Products, or other fans with similar specifications. Max fan load is 1.5 Amps at 120 volts.
Features:
- Mounts to rackrail brackets or any flat surface
- Has four controlled outlets for fans
- Proportional speed thermostatic control extends equipment and fan life
- Can control up to four fans based on the temperature in the enclosure
- Features three temperature ranges and proportional/full on switch
| Depth | 2.68 in (6.81 cm) |
| Height | 8.45 in (21.46 cm) |
| Primary Package Weight | 3.9 lbs (1.77 kg) |
| Volts AC | 120V |
| Width | 4 in (10.16 cm) |
| Component Type | Active |
| Number of Controlled Fans | 4 |
| Receptacle Type | NEMA 1-15R |
| Certifications | Greenguard RoHS UL Listed |
| UL Standards Tested | 244A 508 |
Proportional speed thermostatic fan control extends both equipment and fan life and reduces service calls by varying the fan speed of up to four fans based on temperature. The fan control includes 3 user selectable temperature ranges, a local on/off switch, status LEDs, and a temperature probe with a 5 ft. wire. This control is designed to work specifically with AC fans that are offered by Middle Atlantic Products, or other fans with similar specifications. Max fan load is 1.5 Amps at 120 volts.
Features:
- Mounts to rackrail brackets or any flat surface
- Has four controlled outlets for fans
- Proportional speed thermostatic control extends equipment and fan life
- Can control up to four fans based on the temperature in the enclosure
- Features three temperature ranges and proportional/full on switch
| Depth | 2.68 in (6.81 cm) |
| Height | 8.45 in (21.46 cm) |
| Primary Package Weight | 3.9 lbs (1.77 kg) |
| Volts AC | 120V |
| Width | 4 in (10.16 cm) |
| Component Type | Active |
| Number of Controlled Fans | 4 |
| Receptacle Type | NEMA 1-15R |
| Certifications | Greenguard RoHS UL Listed |
| UL Standards Tested | 244A 508 |
