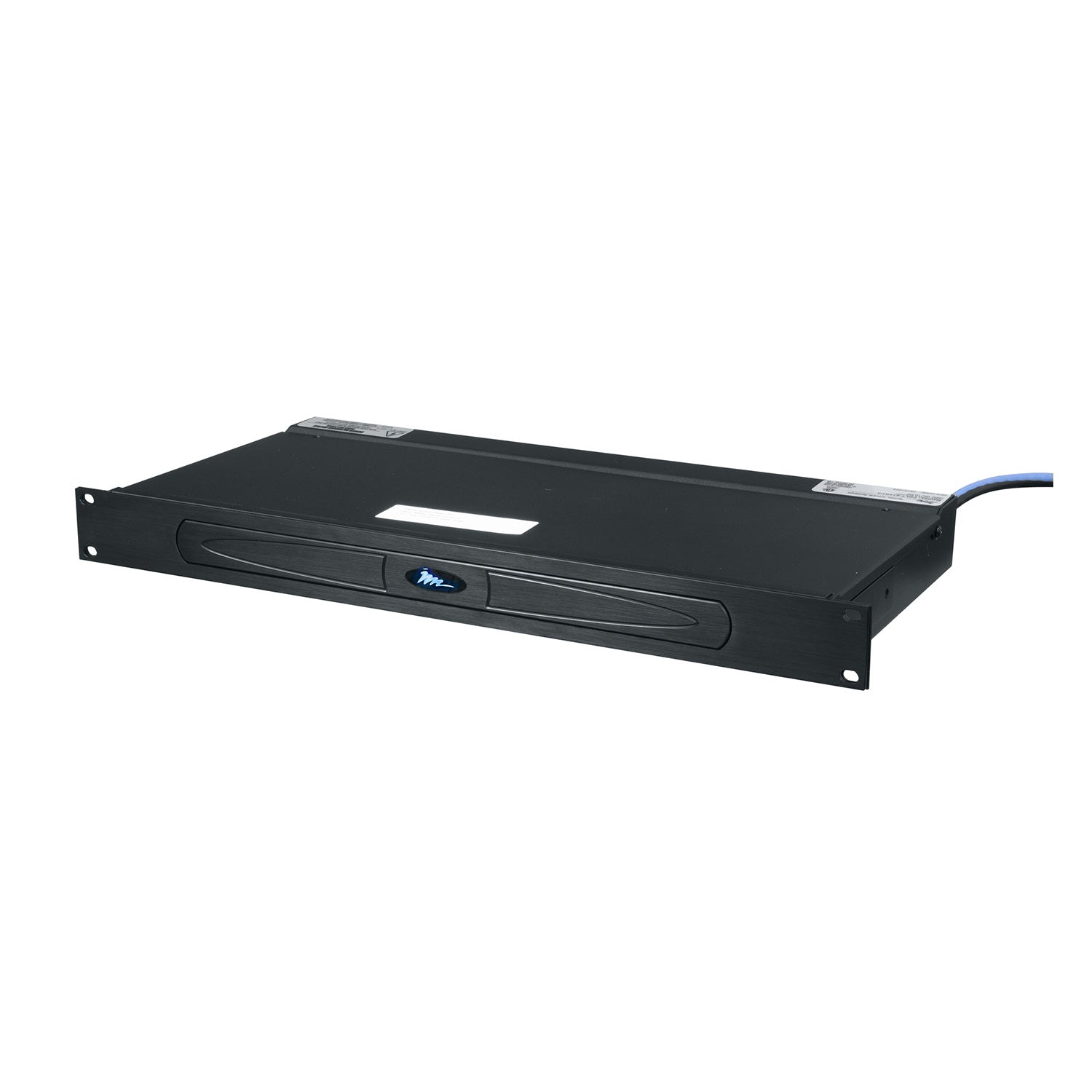

Middle Atlantic PDLT-815RVA - Rack Light and Power Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PDLT-815RVA combines power distribution and lighting in convenient one space package! A retractable front light pod illuminates rack components. Includes surge protection; will not pass noise to ground. It also includes two rear USB power ports to power LT-GN series work lights.
Features:
- Retractable LED light
- Dimmable LED bar provides evenly distributed illumination for component viewing
- 2 rear USB style output ports for connection of LED gooseneck work lights
- 8 circuit-breaker protected NEMA 5-15R rear outlets
- 2 stage surge suppression protects against damage from power surges and spikes (status notification via local LED and dry contact warns when surge protection is compromised, PDLT-815RV-RN only)
- Constructed of 18-gauge steel
- Clean ground surge suppressor design will not pass noise contamination to the ground
- Face available with flat black powder coat finish (PDLT-815RV-RN), black brushed anodized finish (PDLT-815RVA)
- ETL Listed in the US and Canada
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.25 |
| Height | 1.75 |
| Primary Package Weight | 11.4 |
| Rack Units | 1 RU |
| Volts AC | 115 VAC |
| Width | 19 in |
| Cable Type | Corded |
| Finish | Black Brushed and Anodized |
| Material | Steel |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| Certifications | ETL Listed |
The PDLT-815RVA combines power distribution and lighting in convenient one space package! A retractable front light pod illuminates rack components. Includes surge protection; will not pass noise to ground. It also includes two rear USB power ports to power LT-GN series work lights.
Features:
- Retractable LED light
- Dimmable LED bar provides evenly distributed illumination for component viewing
- 2 rear USB style output ports for connection of LED gooseneck work lights
- 8 circuit-breaker protected NEMA 5-15R rear outlets
- 2 stage surge suppression protects against damage from power surges and spikes (status notification via local LED and dry contact warns when surge protection is compromised, PDLT-815RV-RN only)
- Constructed of 18-gauge steel
- Clean ground surge suppressor design will not pass noise contamination to the ground
- Face available with flat black powder coat finish (PDLT-815RV-RN), black brushed anodized finish (PDLT-815RVA)
- ETL Listed in the US and Canada
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.25 |
| Height | 1.75 |
| Primary Package Weight | 11.4 |
| Rack Units | 1 RU |
| Volts AC | 115 VAC |
| Width | 19 in |
| Cable Type | Corded |
| Finish | Black Brushed and Anodized |
| Material | Steel |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| Certifications | ETL Listed |
