Millennia AOO-316 - 8-Channel Analog Output Option for HV-316
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

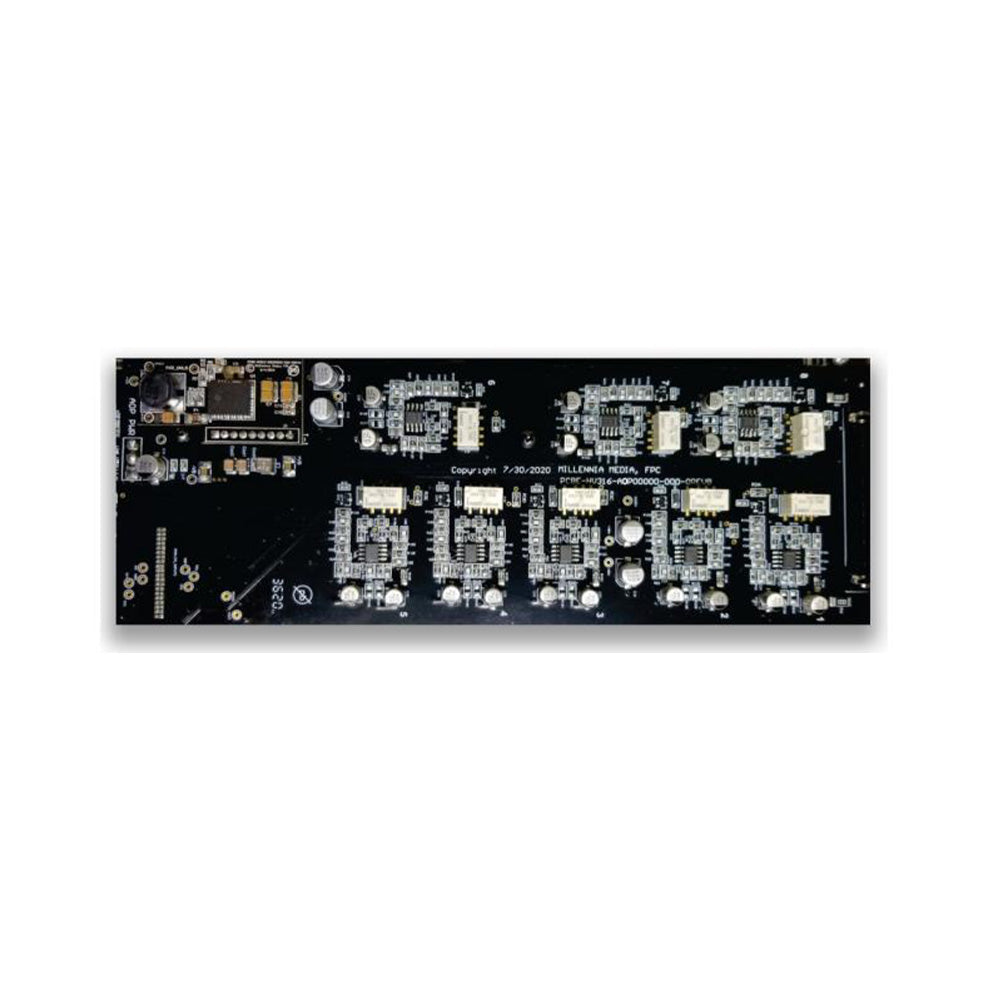

The AOO Analog Output Option card provides 8 channels of HV-3 balanced output stages, effectively identical to HV-3C, HV-3D, etc. The AOO takes a direct balanced signal feed from the analog gain stage of each HV-316 mic preamp -- there is no ADC or DAC in the analog output path. Analog outputs are terminated on a 25-pin sub-D connector using the AES59/Tascam balanced format standard. The AOO card is a factory-installed option.
| Frequency Response (+0 / -3 dB) | sub 8 Hz to beyond 200 kHz |
| Noise (60 dBu Gain, 10 Hz - 30 kHz, Inputs common) | -130ÊdBu EIN |
| Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, 0 dBFS Out | < .005%, (<.001%Typ.) |
| Intermodulation Distortion (50 Hz / 7 kHz), 35 dB Gain, 0 dBFS | < .0009% |
| Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, 0 dBFS | < 2 degrees deviation |
| Slew Rate (35 dB Gain) | > 25 Volts per microsecond |
| Maximum Output Level (20 Hz - 40 kHz) | +22 dBu |
| Output Impedance | 24.3 Ohms |
The AOO Analog Output Option card provides 8 channels of HV-3 balanced output stages, effectively identical to HV-3C, HV-3D, etc. The AOO takes a direct balanced signal feed from the analog gain stage of each HV-316 mic preamp -- there is no ADC or DAC in the analog output path. Analog outputs are terminated on a 25-pin sub-D connector using the AES59/Tascam balanced format standard. The AOO card is a factory-installed option.
| Frequency Response (+0 / -3 dB) | sub 8 Hz to beyond 200 kHz |
| Noise (60 dBu Gain, 10 Hz - 30 kHz, Inputs common) | -130ÊdBu EIN |
| Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, 0 dBFS Out | < .005%, (<.001%Typ.) |
| Intermodulation Distortion (50 Hz / 7 kHz), 35 dB Gain, 0 dBFS | < .0009% |
| Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, 0 dBFS | < 2 degrees deviation |
| Slew Rate (35 dB Gain) | > 25 Volts per microsecond |
| Maximum Output Level (20 Hz - 40 kHz) | +22 dBu |
| Output Impedance | 24.3 Ohms |
