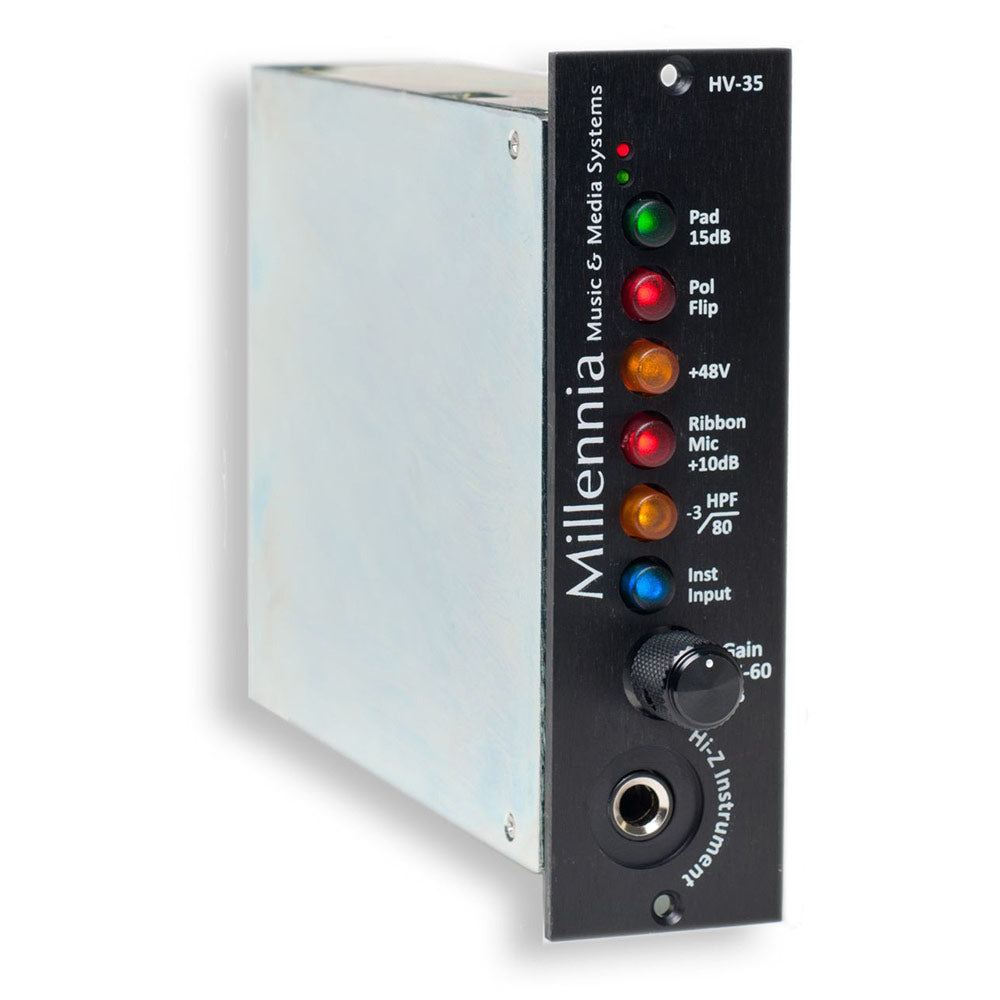

Millennia HV-35 500 Series Microphone and Instrument Preamp


  • Dale #:

    MILL-HV35
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The HV35 is an incredibly quiet and transparent 500 Series mic preamp. It is equipped with an 80Hz rolloff, 15 dB pad, and a DC coupled ribbon mic setting complete with 10dB gain boost. It also has a front mounted 1/4 instrument input for added flexibility. Features: Continuously variable gain c... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HV35 is an incredibly quiet and transparent 500 Series mic preamp. It is equipped with an 80Hz rolloff, 15 dB pad, and a DC coupled ribbon mic setting complete with 10dB gain boost. It also has a front mounted 1/4 instrument input for added flexibility.

Features:

  • Continuously variable gain control
  • Front panel instrument input
  • DC coupled ribbon mic with 10dB gain boost setting
  • 80 Hz rolloff filter
  • 48V phantom power
  • 15 dB Pad
  • Polarity flip
  • API 500 series compatible format

More +

Product Specs

Minimum Gain 8.5 dB
Maximum Gain
(continuously variable) 60 dB (70 dB in Ribbon Mode)
Frequency Response
+0 / -3 dB sub 3 Hz to beyond 300 kHz
Noise
60 dB Gain, 10 Hz - 30 kHz, Inputs common -130 dB EIN
Total Harmonic Distortion + Noise
35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out < .001%, Typ. < .0005% (< 5 ppm)
Intermodulation Distortion
(50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out < .0009%
Phase Response
35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out < 2 degrees deviation
Common Mode Rejection Ratio
35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. > 65 dB, Typ > 85 dB
Slew Rate
35 dB Gain, +27 dBu Out > 25 Volts per microsecond
Maximum Input Level
20 Hz - 40 kHz +20 dBu (no attenuator pads required)
Maximum Output Level
20 Hz - 40 kHz +28 dBu
Phantom Input Impedance
1 kHz 6,750 ohms
Output Impedance 24.3 Ohms (x2)
Phantom Powering +48 V dc, +/- 2 V dc
Dimensions/Shipping Weight 1.5" W x 5.25" H x 6" D, 3 lbs..
