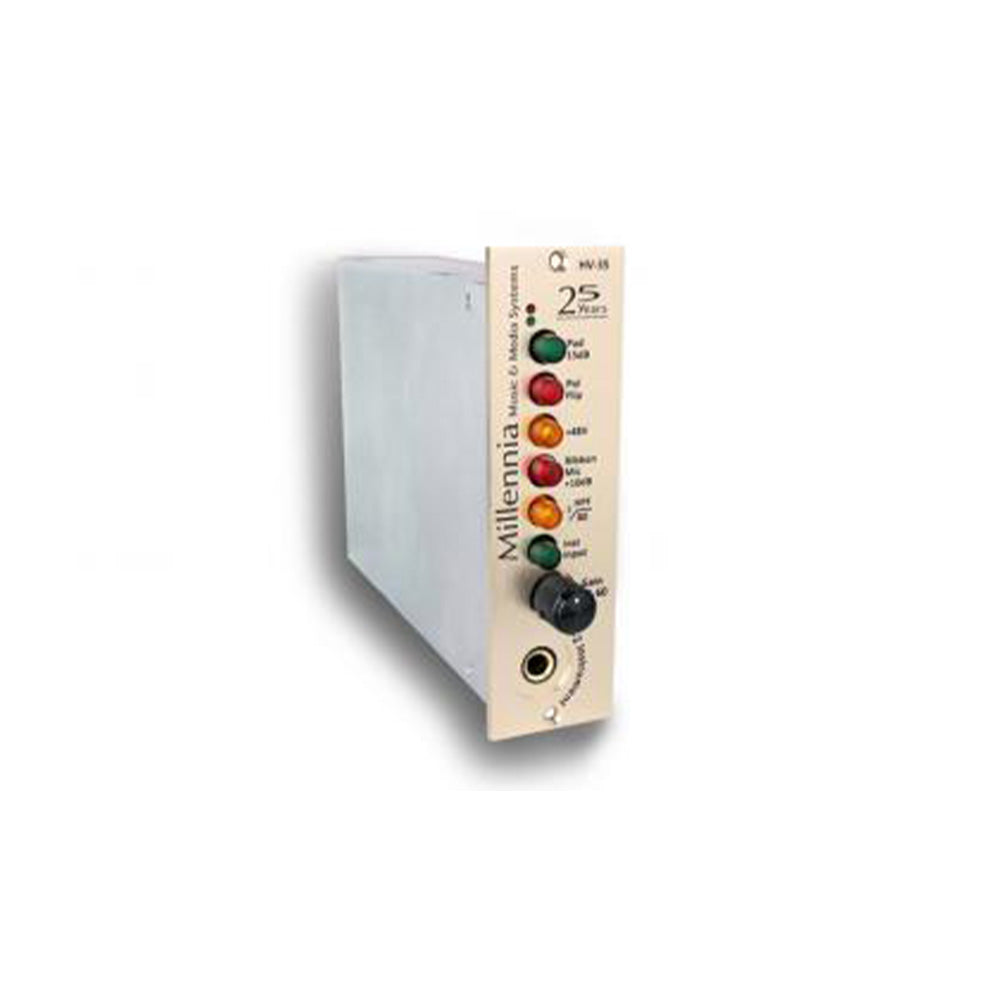

Millennia HV-35-ANIV - 20th Anniversary 500 Series Microphone Preamp Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
To celebrate their 25th anniversary, along with their 2020 induction into the prestigious NAMM Technology Hall of Fame, Millennia has made a special limited edition HV-35 Anniversary micamp. Production is limited to 100 individually-numbered units with a silver finish.
Sporting a silver anodized finish and 25 Year logo, each HV-35-ANIV is hand-signed by John La Grou and the Millennia team.
Features:
- Continuously variable gain control
- Front panel instrument input
- DC coupled ribbon mic with 10dB gain boost setting
- 80 Hz rolloff filter
- 48V phantom power
- 15 dB Pad
- Polarity flip
- API 500 series compatible format
| Minimum Gain | 14.5 dB, 1dB with Pad |
| Maximum Gain (continuously variable) | 60 dB (70 dB in Ribbon Mode) |
| Frequency Response (-3 dB) | <Ê10 Hz toÊ> 200 kHz typical -1.0 dB @ 10 Hz typical -1.5 dB @ 200 kHz |
| Noise (60 dBu Gain, 10 Hz - 30 kHz, Inputs common) | -130 dB EIN |
| Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out) | < .003%, Typical < .001% |
| Intermodulation Distortion (50 Hz / 7 kHz) 35 dB Gain | < .0006% +12 dBu Out < .001% +20 dBu Out |
| Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out) | < 2 degrees deviation |
| Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.) | > 65 dB, Typ> 85 dB |
| Slew Rate (35 dB Gain, +24 dBu Out) | > 25 Volts per microsecond |
| Maximum Input Level (20 Hz - 40 kHz) | +12dBu @ 0.02% THD+N +18dBu @ 0.02% THD+NÊwith pad< |
| Maximum Output Level | 1 kHz @ 35dB of gain, THD+N is: < 0.001% at +26dBu output < 0.05% @ +28 dBu output. |
| Input Impedance (1 kHz) | 2k2 phantom / 1M inst |
| Output Impedance | 24.3 Ohms (x2) |
| Phantom Powering |
provided by 500 rack |
| Dimensions/Shipping Weight | 1.5” W x 5.25” H x 6” D, 2 lbs.. |
