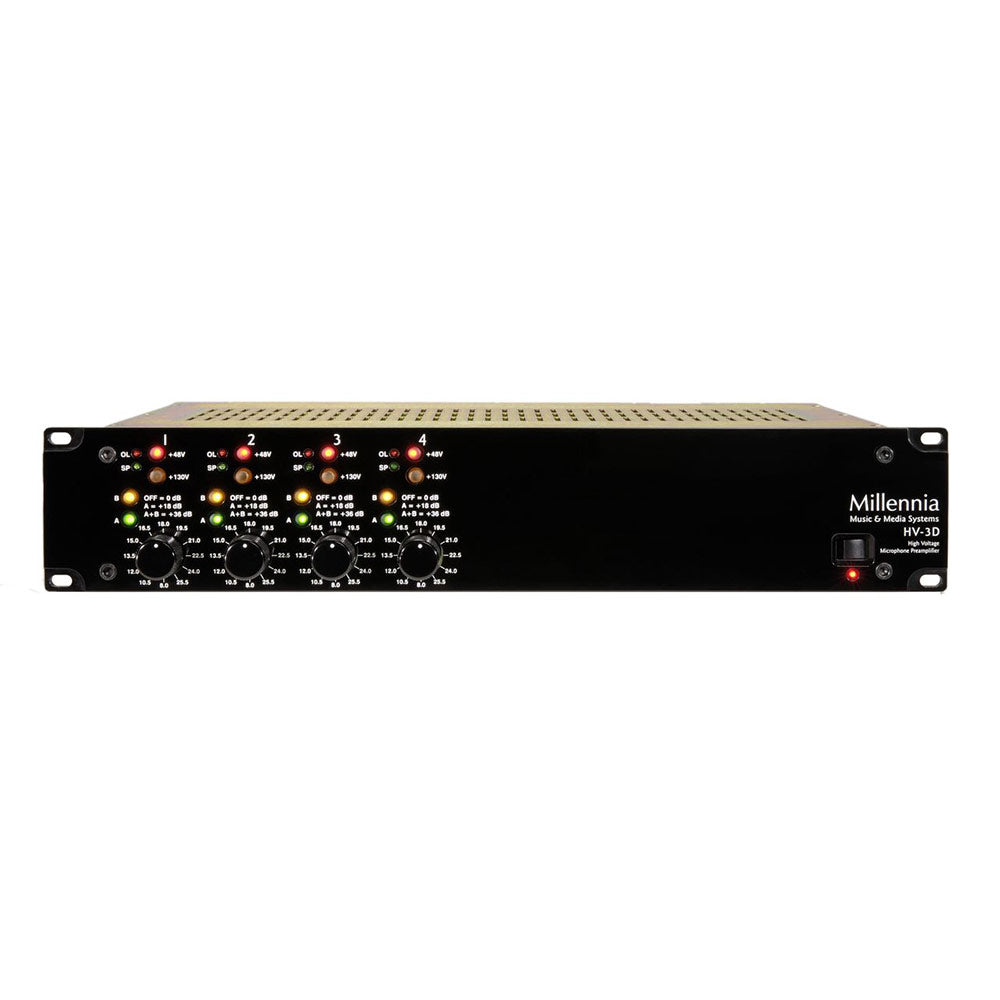

Millennia HV-3D~4 4 Channel Class A Microphone Preamp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Millennia HV-3D~4 4 Channel Class A Microphone Preamp
Sale price$3,200.00
Regular price$3,555.00
Description
The HV-D4 is a rackmountable four channel version of the HV-3 mic preamp. High resolution (HR) gain switches are standard. BK and DC options available.
Features:
- Unsurpassed ambience retrieval
- Transformerless design with matched hi-speed discrete transistor octet has 23 dB input headroom: no attenuator "pads" needed
- Uncolored timbral accuracy at all dynamic levels
- Entirely balanced audio path with precision components maintains signal integrity: THD under 5 ppm (.0005%)
- Effortless, vividly realistic, musical performance
- Laser-trimmed FET-based output stage has 32 dB headroom: drives 1000 foot (300 m) cable runs with ease
- Standard 36-step gain controls (1.5 dB per step) are stereo matched to .08 dB
- Ultra-clean toroid power supply
- Gold audio connectors and switches
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- Welded 16 gauge steel rack chassis
| Minimum Gain | 8.5 dB |
| Maximum Gain | åÊ |
| (1.5 dB per step, 36 steps) | 65 dB (up to 75 dB on request) |
| Frequency Response | åÊ |
| +0 / -3 dB | sub 3 Hz to beyond 300 kHz |
| Noise | åÊ |
| 60 dB Gain, 10 Hz - 30 kHz, Inputs common | -133 dB EIN |
| Total Harmonic Distortion + Noise | åÊ |
| 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out | < .001%, Typ. < .0005% (< 5 ppm) |
| Intermodulation Distortion | åÊ |
| (50 Hz / 7 kHz) 35 dB Gain, +27 dBu Out | < .0009% |
| Phase Response | åÊ |
| 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out | < 2 degrees deviation |
| Common Mode Rejection Ratio | åÊ |
| 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. | > 65 dB, Typ> 85 dB |
| Slew Rate | åÊ |
| 35 dB Gain, +27 dBu Out | > 25 Volts per microsecond |
| Maximum Input Level | åÊ |
| 20 Hz - 40 kHz | +23 dBu (no attenuator pads required) |
| Maximum Output Level | åÊ |
| 20 Hz - 40 kHz | +32 dBu |
| Phantom Input Impedance | åÊ |
| 1 kHz | 6,750 ohms |
| Output Impedance | 24.3 Ohms (x2) |
| DPA (B&K) Mic Powering | +130 V dc max, (non-phantom) |
| Phantom Powering | +48 V dc, +/- 2 V dc |
| Power Consumption | 45 watts maximum |
| Power Requirements | Selectable: 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19" W x 3.5" H x 12.5" D, 25 lbs. |
