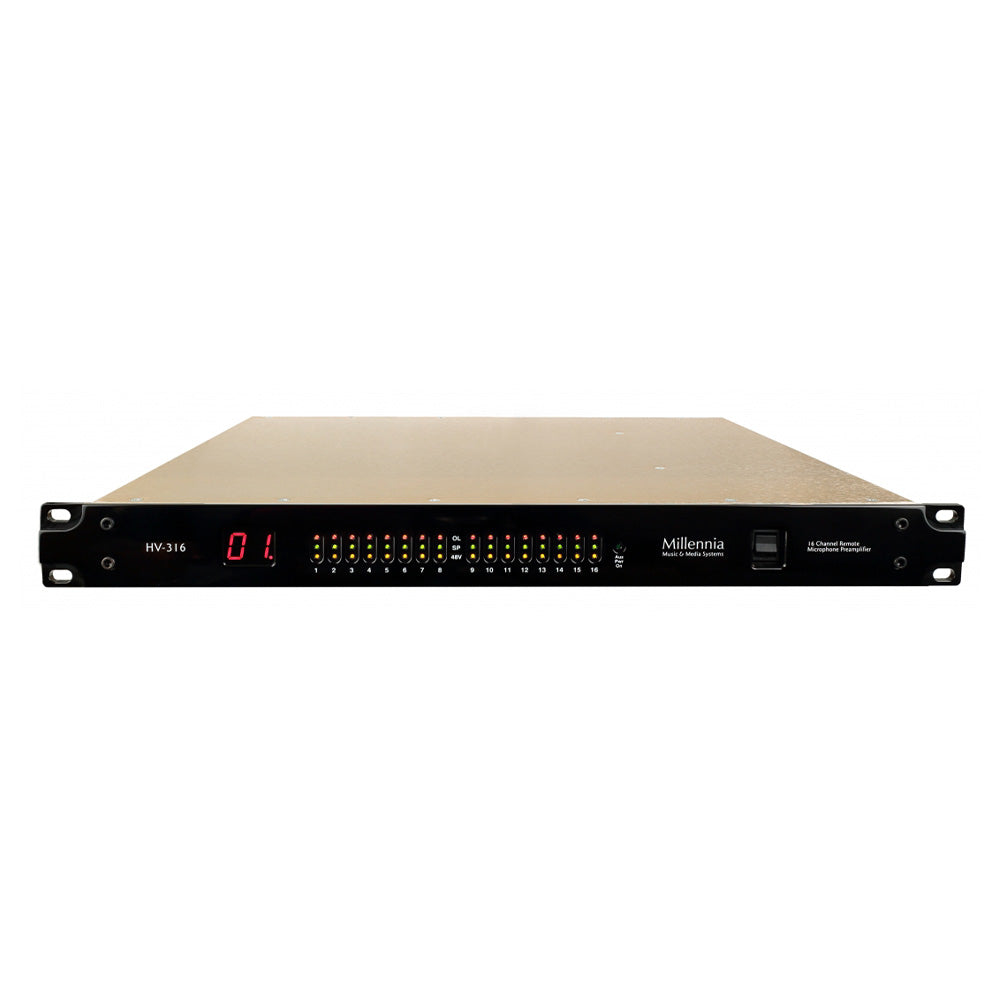

Millennia HV316/16 - 16-Channel Remote Controlled Dante Microphone Preamp


  • Dale #:

    MILL-HV31616
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The HV-316 is a finely tuned instrument intended for critical professional applications - it offers the world's most sonically neutral microphone preamplification. Up to 16 HV-316s can be simultaneously controlled plus an additional 16 HV-3Rs - a total of 384 channels on one system. A high-speed ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HV-316 is a finely tuned instrument intended for critical professional applications - it offers the world's most sonically neutral microphone preamplification. Up to 16 HV-316s can be simultaneously controlled plus an additional 16 HV-3Rs - a total of 384 channels on one system. A high-speed Ethernet control interface makes this possible without any significant system control latency, even if all 384 channels were to change parameters simultaneously. The MIDI control interface is compatible with Avid’s Pro Tools® PRE remote microphone preamplifier protocol. As defined by Avid, up to 4 HV-316 (8 HV-316/8) units can be simultaneously controlled with MIDI in Pro Tools.

Features:

  • 16 channels of pristine Millennia HV-3 microphone preamplifiers in a road-hardened 1U chassis (8 channel option)
  • Effortless, vividly realistic, dynamically uniform HV-3 musical performance
  • Dante network output standard -- analog output option.
  • Both 12VDC (battery) and 80-264VAC worldwide powering
  • Redundant power supply for fail-safe, glitch-free operation
  • Paralleled next-generation AKM A-to-D conversion assuring over 120dB dynamic range
  • Designed for ultra-high-temperature continuous operation (65C / 150F)
  • RF pi filter shielding provided on analog and digital feeds, destroys mobile interference
  • Control up to 256 channels at once via conventional Ethernet.
  • +34dBu input headroom for use in the most extreme audio environments
  • Matched discrete-octet transistor gain topology, the classic Millennia HV-3 double-balanced circuit
  • Ælogic Mac / Windows third-generation software offers total control for both HV-316 and HV-3R on the same network
  • High-definition meters, grouping, linking, scene management, temperature monitoring
  • Entirely balanced audio path with precision components maintains signal integrity: THD under 10 PPM (.001%)
  • Laser-trimmed FET-based output stage (analog output option) drives 1000-foot (300m) cable runs with ease
  • All channels matched to 0.08 dB
  • Advanced power supply rated for 650,000 hours MTBF operation
  • Aluminum 16-gauge rack chassis, ultra-lightweight, just 10 pounds
  • Billet aluminum laser etched front-panel
  • Lovingly hand-built and quality-assured in Northern California USA

More +

Product Specs

Minimum Gain 1 dB
Maximum Gain (1 dB per step) 64 dB
Attenuator Pad -20 dB
Frequency Response (analog output option) (+0 / -3 dB) sub 8 Hz to beyond 200 kHz (analog)
Noise (60 dBu Gain, 10 Hz - 30 kHz, Inputs common) -130 dB EIN
Total Harmonic Distortion + Noise (35 dB Gain) < .005%, (<.001% Typ.)
Intermodulation Distortion (50 Hz / 7 kHz), 35 dB Gain, 0 dBFS < .0009%
Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, 0 dBFS < 2 degrees deviation
Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.) > 65 dB, Typ > 85 dB
Slew Rate (35 dB Gain) > 25 Volts per microsecond
Maximum Input Level (20 Hz - 40 kHz) +34 dBu (pad in)
Maximum Output Level (20 Hz - 40 kHz) +22 dBu (analog output option)
Phantom Input Impedance (1 kHz) 6,750 ohms
Output Impedance 24.3 Ohms (analog output option)
Phantom Powering +48 V dc, +/- 2 V dc, 15 ma per channel in reserve
Power Consumption 100 watts maximum
AC: Universal 80-264V, 47-63 Hz
DC: 12V
Dimensions/Shipping Weight 19" W x 1.75" H x 16" D, 10 lbs. (16ch), 9 lbs (8ch)
DANTE
Physical Layer Ethernet
Connectors Dual RJ-45 (Primary / Secondary)
Cable Quality CAT-5e or better
Transmission Speed 1Gbps
Supported Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Minimum Dante Latency 250 µS
Supported Modes Redundant / Switched
AES67 Support Planned (Dante embedded)
Certifications FCC CFR 47 Part 15 Subpart B, Class A
ICES-03 Issue 6 (Canada)
ANSI C63.4-2014 EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013
Compliance RoHS 2011/65/EU (and delegated directive (EU) 2015/863)
WEEE 2012/19/EU + REACH
Environmental -10o to +65oC / +15o to +150oF (fans enabled)
-10o to +45oC / +15o to +115oF (fans disabled)
10% to 80% RH Maximum Altitude: 5,000 meters
