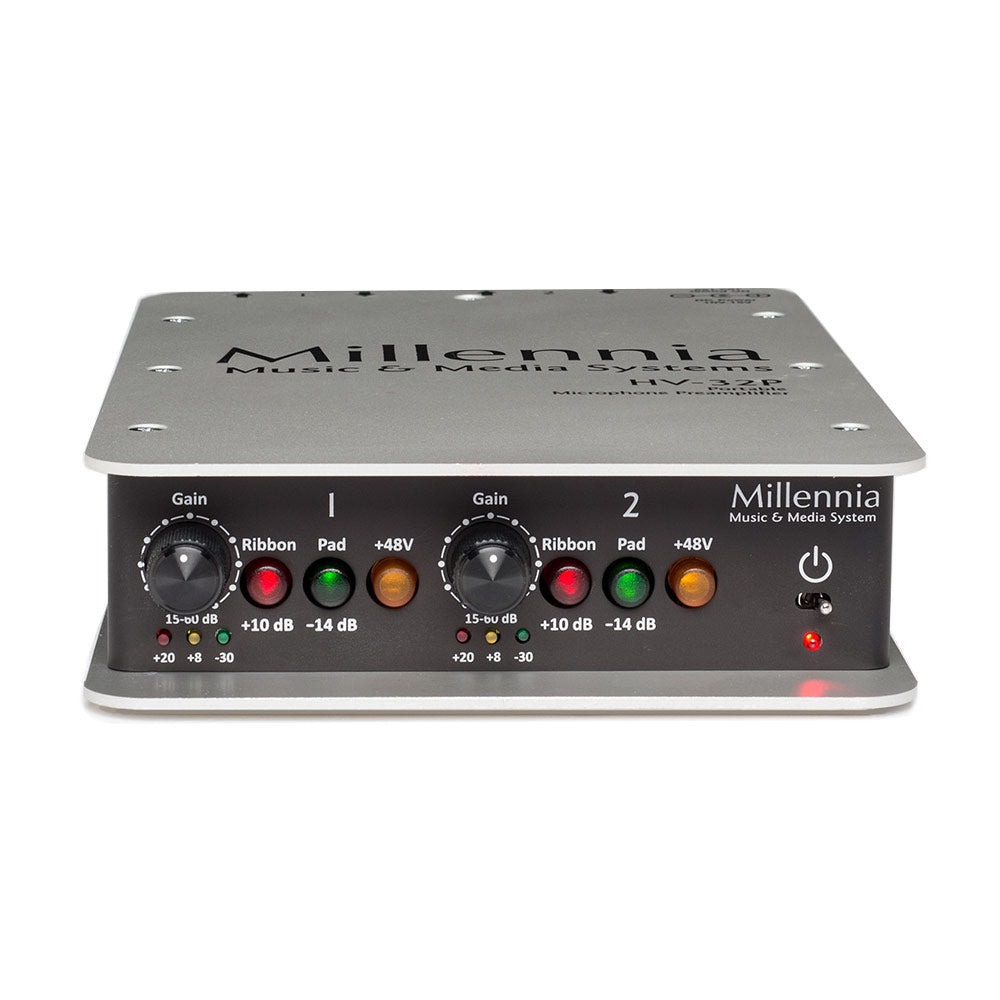

Millennia Media HV-32P Portable 2-Channel Microphone Preamplifier


  • Dale #:

    MILL-HV32P
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

check out a great review of the HV-35 & HV-32P in Recording Magazine HERE

Description

Packed into rugged aluminum chassis and powered from 12-15 VDC so they can go anywhere, Millennia’s dual-channel HV-32P is equipped with two 200 Series HV-32 preamps on board, essentially a dual portable version of the 500 Series HV-35 preamp. Carry it with you, stack multiple units horizontally ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Packed into rugged aluminum chassis and powered from 12-15 VDC so they can go anywhere, Millennia’s dual-channel HV-32P is equipped with two 200 Series HV-32 preamps on board, essentially a dual portable version of the 500 Series HV-35 preamp. Carry it with you, stack multiple units horizontally or vertically, bolt three of them into a Middle Atlantic rack shelf—these preamps are designed to deliver Millennia quality from desktop to treetop.

Features:

  • Continuously variable gain control
  • DC coupled ribbon mic with 10dB gain boost setting
  • 48V phantom power
  • 15 dB PadPolarity flip
  • 12 to 15V operation - 100 to 240V line lump power supply, 12V output, included

More +

Product Specs

Minimum Gain 14.5 dB, 1dB with Pad
Maximum Gain

(continuously variable)

60 dB (70 dB in Ribbon Mode)

Frequency Response @-3 dB  < 10 Hz to  > 200 kHz
typical -1.0 dB @ 10 Hz
typical  -1.5 dB @ 200 kHz
Noise

60 dB Gain, 10 Hz - 30 kHz, Inputs common

-130 dB EIN
Total Harmonic Distortion + Noise

35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out

< .003%, Typical < .001%
Intermodulation Distortion

(50 Hz & 7 kHz) 35 dB Gain

< .0006% +12 dBu Out
< .001% +20 dBu Out
Phase Response

35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out

< 2 degrees deviation
Common Mode Rejection Ratio

35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.

> 65 dB, Typ > 85 dB
Slew Rate

35 dB Gain, +24 dBu Out

> 25 Volts per microsecond
Maximum Input Level

20 Hz - 40 kHz

+12dBu @ 0.02% THD+N
+18dBu @ 0.02% THD+N with pad

Maximum Output Level


1 kHz @ 35dB of gain, THD+N is:
< 0.001% at +26dBu output
< 0.05% @ +28 dBu output.

Phantom Input Impedance

1 kHz

2,210 ohms
Output Impedance

24.3 Ohms (x2)

Phantom Powering

48V dc +/- 2V dc

Dimensions/Shipping Weight 5.67 W x 1.69” H x 8.19” D, 2 lbs..
