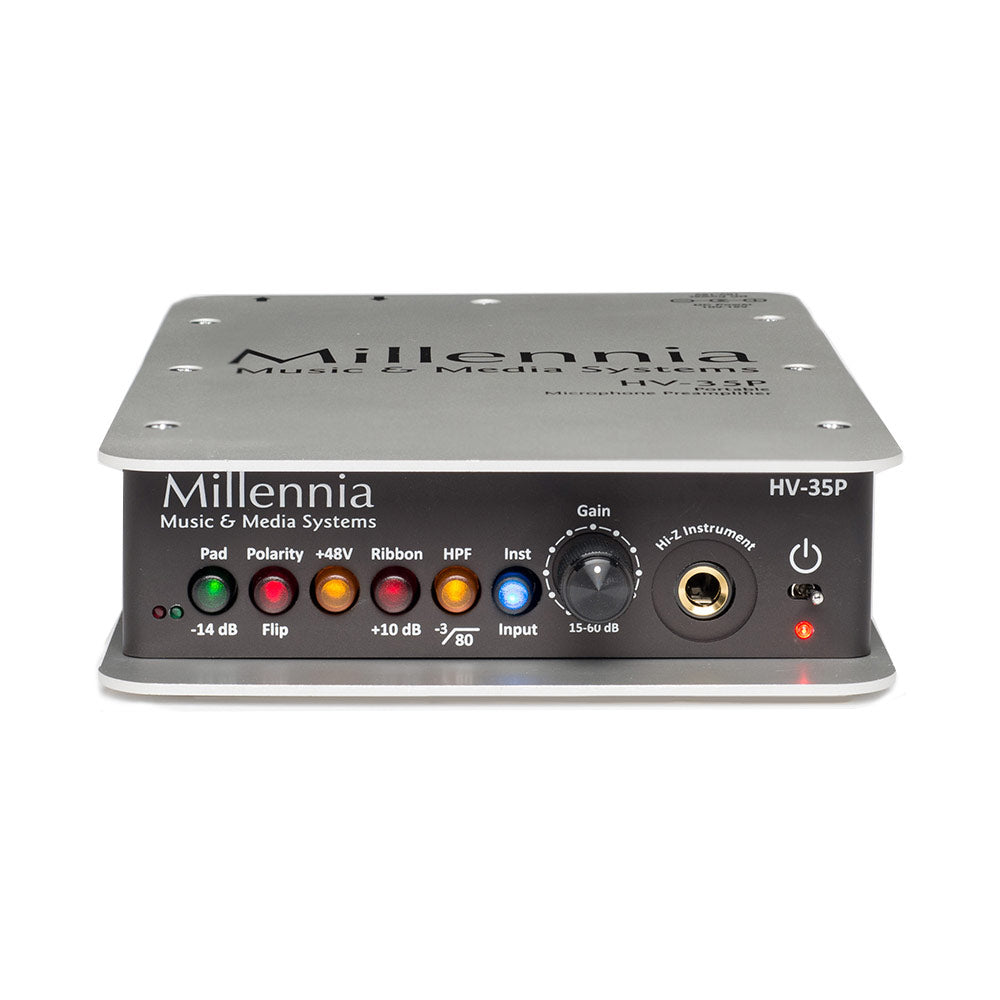

Millennia Media HV-35P Portable Single Channel Microphone Preamplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Packed into rugged aluminum chassis and powered from 12-15 VDC so they can go anywhere, Millennia's single-channel HV-35P is equipped with a 500 Series HV-35 preamps on board, essentially a fully portable version of the 500 Series HV-35 preamp. Carry it with you, stack multiple units horizontally or vertically, bolt three of them into a Middle Atlantic rack shelf-these preamps are designed to deliver Millennia quality from desktop to treetop.
Features:
- Continuously variable gain control
- Front panel instrument input
- DC coupled ribbon mic with 10dB gain boost setting
- 80 Hz rolloff filter
- 48V phantom power
- 15 dB Pad
- Polarity flip
- 12 to 15V operation - 100 to 240V line lump power supply, 12V output, included
| Minimum Gain | 14.5 dB, 1dB with Pad |
| Maximum Gain | |
| (continuously variable)åÊ | 60 dB (70 dB in Ribbon Mode) |
| Frequency Response @-3 dB | åÊ<åÊ10 Hz toåÊ> 200 kHz typical -1.0 dB @ 10 Hz typicalå -1.5 dB @ 200 kHz |
| Noise | åÊ |
| 60 dB Gain, 10 Hz - 30 kHz, Inputs common | -130 dB EIN |
| Total Harmonic Distortion + Noise | åÊ |
| 35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out | < .003%, Typical < .001% |
| Intermodulation Distortion | åÊ |
| (50 Hz / 7 kHz) 35 dB Gain | < .0006% +12 dBu Out < .001% +20 dBu Out |
| Phase Response | åÊ |
| 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out | < 2 degrees deviation |
| Common Mode Rejection Ratio | åÊ |
| 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. | > 65 dB, Typ> 85 dB |
| Slew Rate | åÊ |
| 35 dB Gain, +24 dBu Out | > 25 Volts per microsecond |
| Maximum Input Level | åÊ |
| 20 Hz - 40 kHz | +12dBu @ 0.02% THD+N +18dBu @ 0.02% THD+NåÊwith pad |
| Maximum Output Level | åÊ |
| åÊ | 1 kHz @ 35dB of gain, THD+N is: < 0.001% at +26dBu output < 0.05% @ +28 dBu output. |
| Phantom Input Impedance | åÊ |
| 1 kHz | 2,210 ohms |
| Output Impedance | 24.3 Ohms (x2) |
| Phantom Powering | 48V dc +/- 2V dc |
| Dimensions/Shipping Weight | 5.67 W x 1.69" H x 8.19" D, 2 lbs.. |
