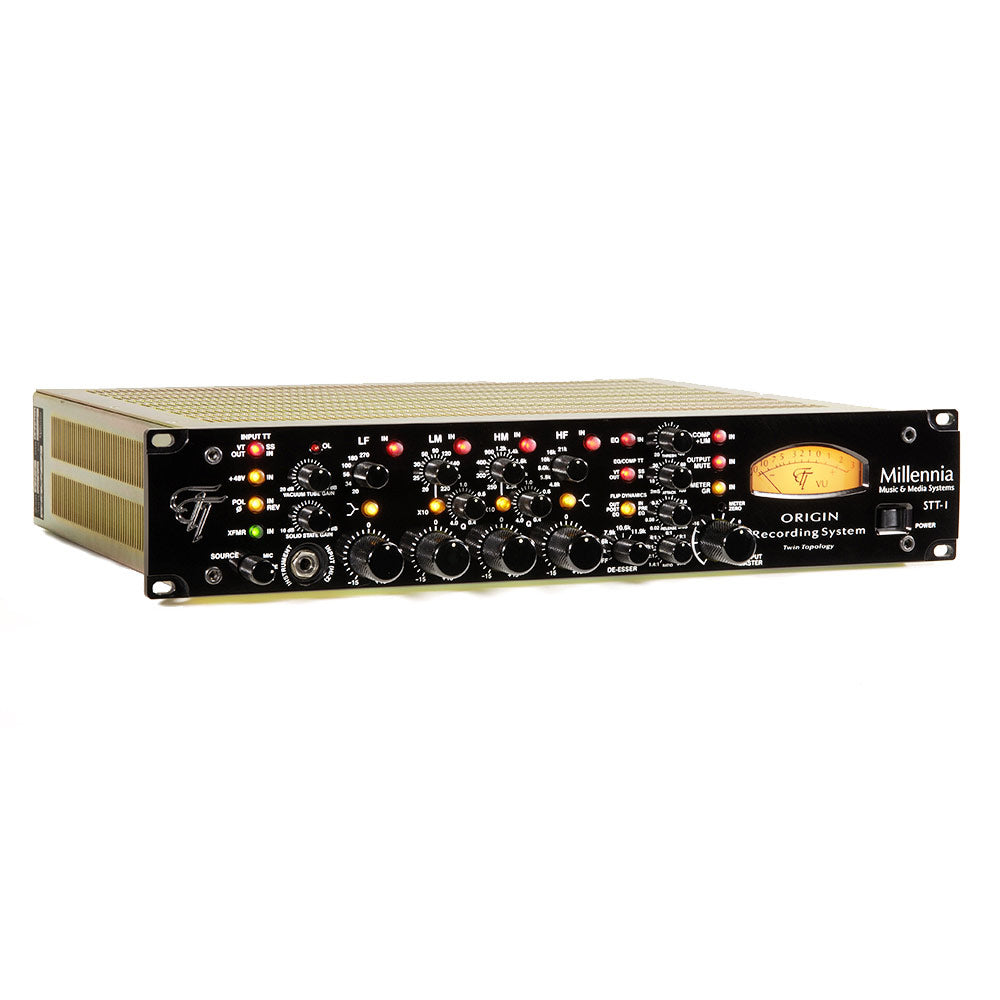

Millennia STT-1 Origin Dual Topology Channel Strip
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Millennia STT-1 Origin Dual Topology Channel Strip
Sale price$4,050.00
Regular price$4,500.00
Description
The STT-1 "Origin" represents the best of all worlds for recording, thanks to its Twin Topology circuit. Choose from an MV-2B vacuum tube or HV-3 solid state path to suit your application. You can further shape your sound with the NSEQ-2 mastering grade EQ, an opto compressor, and de-esser circuit.
Features:
- Twin Mic Preamps - M-2B vacuum tube or HV-3 discrete solid state
- Twin NSEQ-2 Mastering-Grade Parametric Eqs - vacuum tube or discrete solid state
- Three Opto Compressor/Limiter Paths - TCL vacuum tube, discrete solid state, passive
- Twin Opto De-Esser Paths - vacuum tube or discrete solid state
- Vacuum tube or discrete solid state line level paths
- Input coupling with or without MIT-01 audio transformer
- 1/4" vacuum tube DI input - route via tube or solid state gain path
- Effortless, lifelike musical performance at all levels
- Musically rich vacuum tubes available
- Gold audio connectors, tube sockets, relays and switches
- 3/8" thick radius extruded aluminum face plate
- Durable black mirror-gloss anodized finish
- Mil spec 16 gauge cold-rolled steel chassis
- Ultra-clean toroid power supply: internal sub-chassis
- Hand machined aluminum knobs, illuminated IT&T pushbuttons
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- True audio VU meter for output level or dynamics gain reduction
| Microphone Preamplifiers / General | |
| Twin Topology Mic Preamplifier Selection | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology EQ / Compressor | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology Input Coupling | Switchable, Transformer or Transformerless |
| Maximum Output Level (Balanced) | + 32 dBu |
| Frequency Response | |
| +0 / -3 dB (S/S) | sub 5 Hz to beyond 300 kHz |
| Equivalent Input Noise | -131 dBu (SS, Common Source, Direct Out) |
| THD + Noise | |
| 20 Hz - 22 kHz (S/S) | < .05 %, typ < .003 % |
| Common Mode Rejection Ratio (S/S) | > 40 dB, Typ> 70 dB @ 60 Hz. |
| Input Impedance (Mic) | 6,200 ohms |
| Input Impedance (Line) | 2,200 ohms (x2) |
| Input Impedance (Di - Instrument) | > 1 megohm |
| Output Impedance (Balanced) | 24.3 ohms (x2) |
| Parametric Equalizer | |
| Maximum EQ Boost/Cut Range (21 Step Detented) | +/- 15 dB |
| EQ Frequencies | |
| Low Range Switch (Centers - Peak/Shelf Selectable) | 20, 34, 56, 100, 180, 270 |
| Low Mid Sweep | 20 Hz - 220 Hz or 200 Hz - 2.2 kHz. 10X Range switch selectable. |
| Hi Mid Sweep | 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz. 10X Range switch selectable. |
| High Range Switch (Centers - Peak/Shelf Selectable) | 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k |
| "Q" Range | Q = 0.4 to 4.0 Adjustable on middle ranges, Q = 1.0 Fixed on low / high ranges |
| Optoelectronic Compressor/Limiter | |
| Threshold Range | Infinite to +20 dBu |
| Attack Range | 2 ms to 100 ms |
| Release Range | 80 ms to 3.0 s |
| Compression Ratio Range | minimum 1.4 : 1, maximum 30 : 1 |
| De-Essing Frequency Switch | OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k |
| Power Consumption | 50 watts maximum |
| Power Requirements Selectable | 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19" W x 3.5" H x 15.5" D, 25 lbs. |
The STT-1 "Origin" represents the best of all worlds for recording, thanks to its Twin Topology circuit. Choose from an MV-2B vacuum tube or HV-3 solid state path to suit your application. You can further shape your sound with the NSEQ-2 mastering grade EQ, an opto compressor, and de-esser circuit.
Features:
- Twin Mic Preamps - M-2B vacuum tube or HV-3 discrete solid state
- Twin NSEQ-2 Mastering-Grade Parametric Eqs - vacuum tube or discrete solid state
- Three Opto Compressor/Limiter Paths - TCL vacuum tube, discrete solid state, passive
- Twin Opto De-Esser Paths - vacuum tube or discrete solid state
- Vacuum tube or discrete solid state line level paths
- Input coupling with or without MIT-01 audio transformer
- 1/4" vacuum tube DI input - route via tube or solid state gain path
- Effortless, lifelike musical performance at all levels
- Musically rich vacuum tubes available
- Gold audio connectors, tube sockets, relays and switches
- 3/8" thick radius extruded aluminum face plate
- Durable black mirror-gloss anodized finish
- Mil spec 16 gauge cold-rolled steel chassis
- Ultra-clean toroid power supply: internal sub-chassis
- Hand machined aluminum knobs, illuminated IT&T pushbuttons
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- True audio VU meter for output level or dynamics gain reduction
| Microphone Preamplifiers / General | |
| Twin Topology Mic Preamplifier Selection | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology EQ / Compressor | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology Input Coupling | Switchable, Transformer or Transformerless |
| Maximum Output Level (Balanced) | + 32 dBu |
| Frequency Response | |
| +0 / -3 dB (S/S) | sub 5 Hz to beyond 300 kHz |
| Equivalent Input Noise | -131 dBu (SS, Common Source, Direct Out) |
| THD + Noise | |
| 20 Hz - 22 kHz (S/S) | < .05 %, typ < .003 % |
| Common Mode Rejection Ratio (S/S) | > 40 dB, Typ> 70 dB @ 60 Hz. |
| Input Impedance (Mic) | 6,200 ohms |
| Input Impedance (Line) | 2,200 ohms (x2) |
| Input Impedance (Di - Instrument) | > 1 megohm |
| Output Impedance (Balanced) | 24.3 ohms (x2) |
| Parametric Equalizer | |
| Maximum EQ Boost/Cut Range (21 Step Detented) | +/- 15 dB |
| EQ Frequencies | |
| Low Range Switch (Centers - Peak/Shelf Selectable) | 20, 34, 56, 100, 180, 270 |
| Low Mid Sweep | 20 Hz - 220 Hz or 200 Hz - 2.2 kHz. 10X Range switch selectable. |
| Hi Mid Sweep | 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz. 10X Range switch selectable. |
| High Range Switch (Centers - Peak/Shelf Selectable) | 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k |
| "Q" Range | Q = 0.4 to 4.0 Adjustable on middle ranges, Q = 1.0 Fixed on low / high ranges |
| Optoelectronic Compressor/Limiter | |
| Threshold Range | Infinite to +20 dBu |
| Attack Range | 2 ms to 100 ms |
| Release Range | 80 ms to 3.0 s |
| Compression Ratio Range | minimum 1.4 : 1, maximum 30 : 1 |
| De-Essing Frequency Switch | OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k |
| Power Consumption | 50 watts maximum |
| Power Requirements Selectable | 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19" W x 3.5" H x 15.5" D, 25 lbs. |
