Description

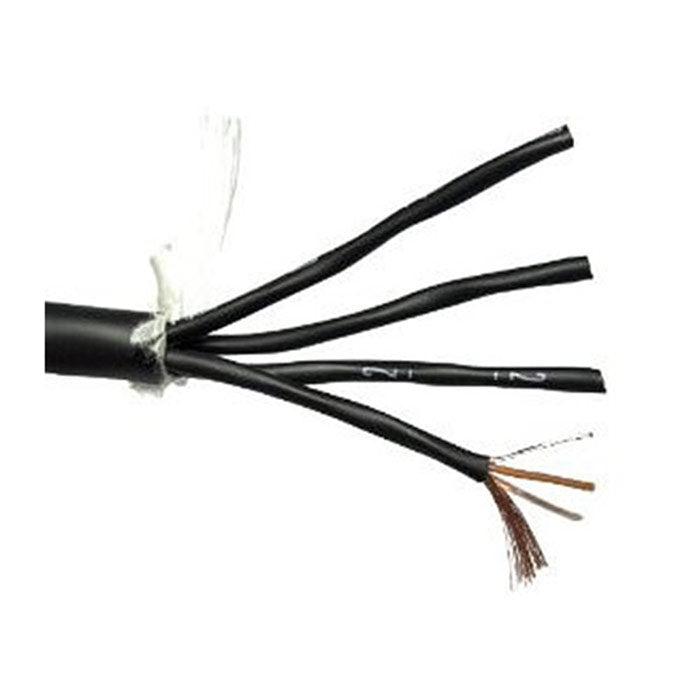

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.
Features:
- Individually twisted shielded pairs, available in 2 to 48 channels.
- XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
- Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
- Easy cable identification system:
- Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
- Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs.
- Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
No. Of Channels | 4 |
Overall Diameter | 8.6(0.339) |
Jacket Thickness | 1.0(0.039) |
Weight (kg/100m) (kg/328Ft) | 9 |
Maximum Length Available | 506m (1,659Ft) |
Conductor | 30/0.08A (0.15mm_) #26AWG (30_#40AWG) |
Insulation | 1.0¯ XLPE (Cross Linked Polyethylene) (0.039) |
Drain Wire | 7/0.18TA (0.18mm_) #25AWG (7_#33AWG) |
Served Shield | Approx. 58/0.10A Served (spiral) Shield |
Jacket (Covering) | 2.8¯ Flexible PVC (0.110) |
DC Resistance at 20¡C | Inner Pair Conductor 0.13 /m(0.040 /Ft) Shield 0.031 /m(0.0095 /Ft) |
Capacitance at 1kHz, 20¡C (Partial Capacitance Value) | K0 130pF/m(40pF/Ft) K1 12pF/m(3.7pF/Ft) |
Inductance | 0.6µH/m(0.18µH/Ft) |
Electrostatic Noise (Hum Pick-up)* | 2.5mV Max. |
Electromagnetic Noise at 10kHz* (Inductance of the toroidal core: 595µH) | 0.1mV Max. |
Microphonics* Method: Stepping on cable | 50mV Max. at 50k / Load |
Voltage Breakdown | Must withstand at DC 500V/15sec. |
Insulation Resistance at DC 125V, 20¡C | 100000 M / _ m Minimum |
Tensile Strength of one pair (26¡C, 65% RH) | 274N |
Emigration | Non-emigrant to ABS resin |
Applicable Temperature | -20¡C +70¡C(-4¡F +158¡F) |
Standard | UL13 CL2X 60¡C / UL 20002 AWM 30V 60¡C VW-1 |
