DALE SKU # MOTU-8453

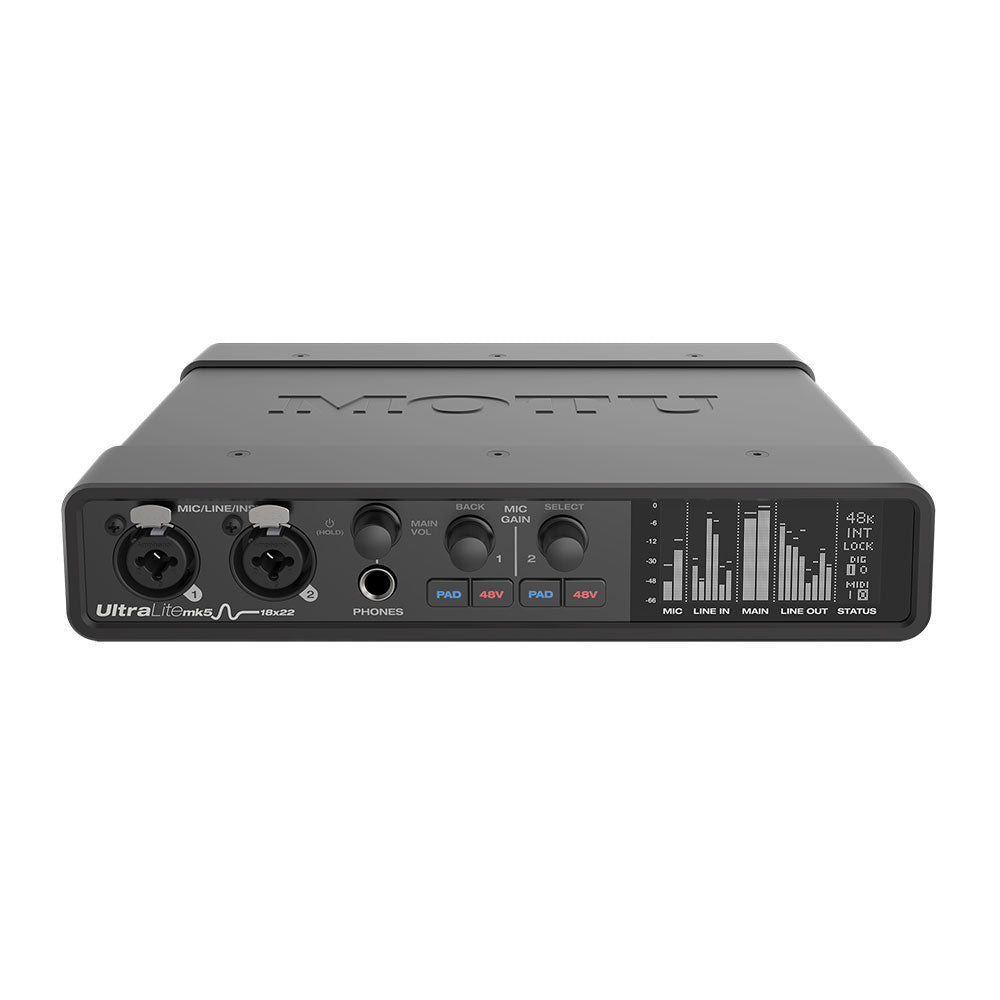

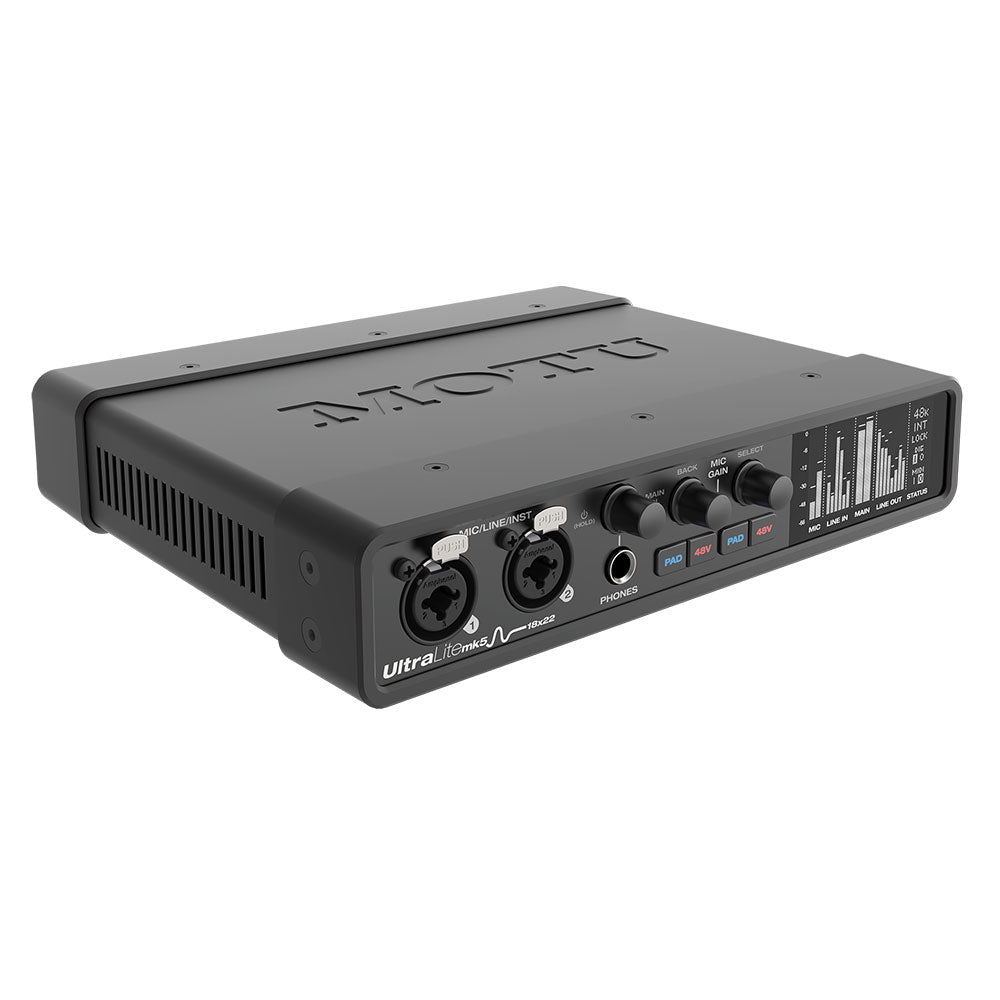

MOTU UltraLite Mk5 - USB-C Audio Interface

Sale price$699.95
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The latest in MOTU's popular, award-winning UltraLite interface series, the UltraLite-mk5 is an 18-input, 22-output audio interface with DSP mixing, effects processing and best-in-class analog audio quality for on-the-go mobile audio recording. Connect to a computer through hi-speed USB 2.0 with optimized ultra-low latency drivers (audio class compliant, compatible with USB 3.0 and iOS) and record at sample rates up to 192 kHz with two combo XLR/TRS mic/line/h-Z guitar inputs, six line-level analog inputs, ten analog outputs, 8-channel optical I/O (with support for 2-channel TOSLink), RCA S/PDIF digital I/O, MIDI I/O and a headphone output. Monitor live inputs directly on any analog output pair with DSP-driven mixing. Create a separate, unique monitor mix for each output (monitor outs, phones, etc.) Apply on-board effects, including reverb, 4-channel parametric EQ and dynamics processing to inputs and mix busses. Use the UltraLite-mk5 as a stand-alone mixer and control everything from new CueMix™ 5 software running on your laptop, iPad™, iPhone™, tablet and smartphone. From studio to stage, the UltraLite-mk5 delivers exceptional sound quality, state-of-the-art operation and rock-solid performance.

    Features:

    • 18 x 22 USB audio interface - 2 combo XLR/TRS mic/line/hi-Z guitar inputs, 6 analog ins, 10 analog outs, headphone out, S/PDIF digital I/O and 8-channel optical I/O for 40 simultaneous audio channels.
    • Superb analog quality with ultra-low latency - Analog outputs deliver 125 dB dynamic range. Optimized drivers deliver rock-solid performance and industry-leading low latency.
    • DSP-driven monitor mixing - Mix live inputs to any analog output pair. Create a separate, unique mix for each output pair (six separate mix busses). Include computer channels in each mix.
    • On-board effects - Apply reverb, 4-channel parametric EQ and dynamics processing to inputs and bus mixes.
    • Universal connectivity - Connects to any computer with hi-speed USB 2.0 (audio class compliant, compatible with USB 3.0 and iOS). Compatible with all audio software.
    • Comprehensive metering - The high-resolution OLED display lets you view all signal activity at a glance with detailed metering for all analog I/O.
    • CueMix 5 app - Control mixing and settings from your Mac, PC or iOS device.
    • Performer Lite - Workstation software with over 100 included instruments, dozens of effects and 6 GB of included loops to make music right away.


    Superb sound with ultra-low latency
    The UltraLite-mk5 provides flexible and mobile USB2 audio connectivity to your computer with ultra-low latency and superb analog quality at sample rates up to 192 kHz. You get all the I/O you need, including two combo XLR/TRS mic/line/hi-Z guitar inputs, six line-level analog inputs, ten analog outputs, 8-channel optical digital I/O, S/PDIF digital I/O, MIDI I/O and a headphone output.

    Built for studio and stage
    Housed in a compact, sturdy enclosure you can take anywhere, the UltraLite-mk5 is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 I/O channels.

    All the I/O you need
    Connect all of your audio gear, including speakers, headphones, mics, guitars, synths, keyboards, drum machines, effects processors and even MIDI devices.

    On-board mixing
    Record, monitor, route and process all live inputs using the on-board multi-bus mixer, with ultra-low latency and no processor strain on your computer.

    DSP-driven effects processing
    Apply hardware-based, DSP-driven effects processing to your mix, independent of your host computer, including reverb, EQ and compression.

    Advanced extras
    Use "loopback" USB channels to mix live inputs with computer output for live streaming and podcasting.

    Mobile recording and mixing
    After recording and mixing in the studio, take the UltraLite-mk5 on the road with your laptop for mobile recording and live mixing.

    Proven performance
    From studio to stage, the UltraLite-mk5 delivers renowned driver support, exceptional sound quality, state-of-the-art operation and rock-solid performance.

    Technical Specifications

    Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
    Mic/line/guitar inputs 2 x XLR/TRS "combo" jacks
    1 M½ impedance on the line/instr inputs

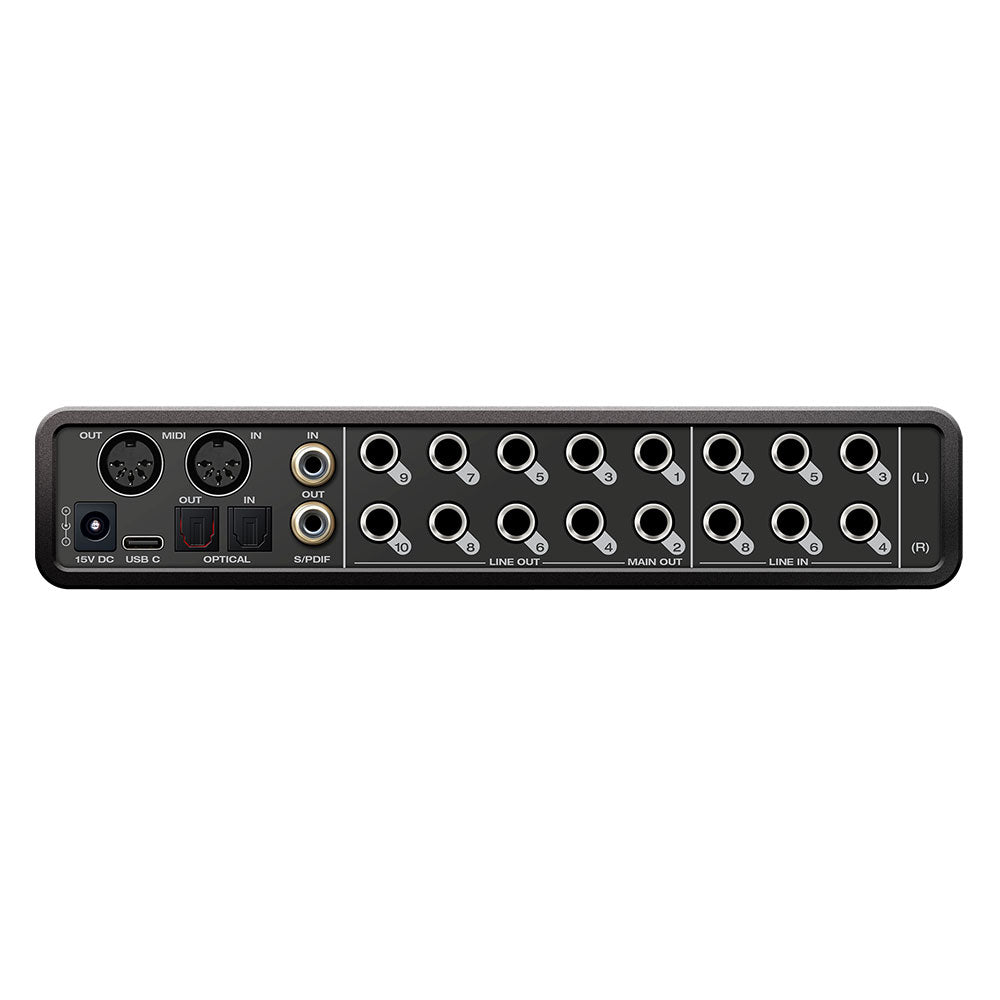

    Analog inputs 6 x 1/4" TRS line in (balanced)
    Analog outputs 10 x 1/4" TRS line out (balanced, DC coupled)
    Digital I/O 1 bank (8 ch) of ADAT optical at 1x sample rates
    1 bank (4 ch) of SMUX optical at 2x sample rates
    Switchable to stereo TOSLink (optical S/PDIF)
    1 x stereo S/PDIF on RCA (up to 96 kHz)
    Computer I/O 1 x USB-C 2.0 audio class compliant
    Compatible with USB Type A (with adapter or C-to-A cable)
    Total audio I/O 18 in / 22 out (40 total) at 1x sample rates
    14 in / 18 out (32 total) at 2x sample rates
    8 in / 12 out (20 total) at 4x sample rates
    MIDI I/O 1 x MIDI IN 1 x MIDI OUT
    16 MIDI channels to/from computer host
    Headphone 1 x 1/4" TRS stereo phone
    Phantom power 2 x individual +48V

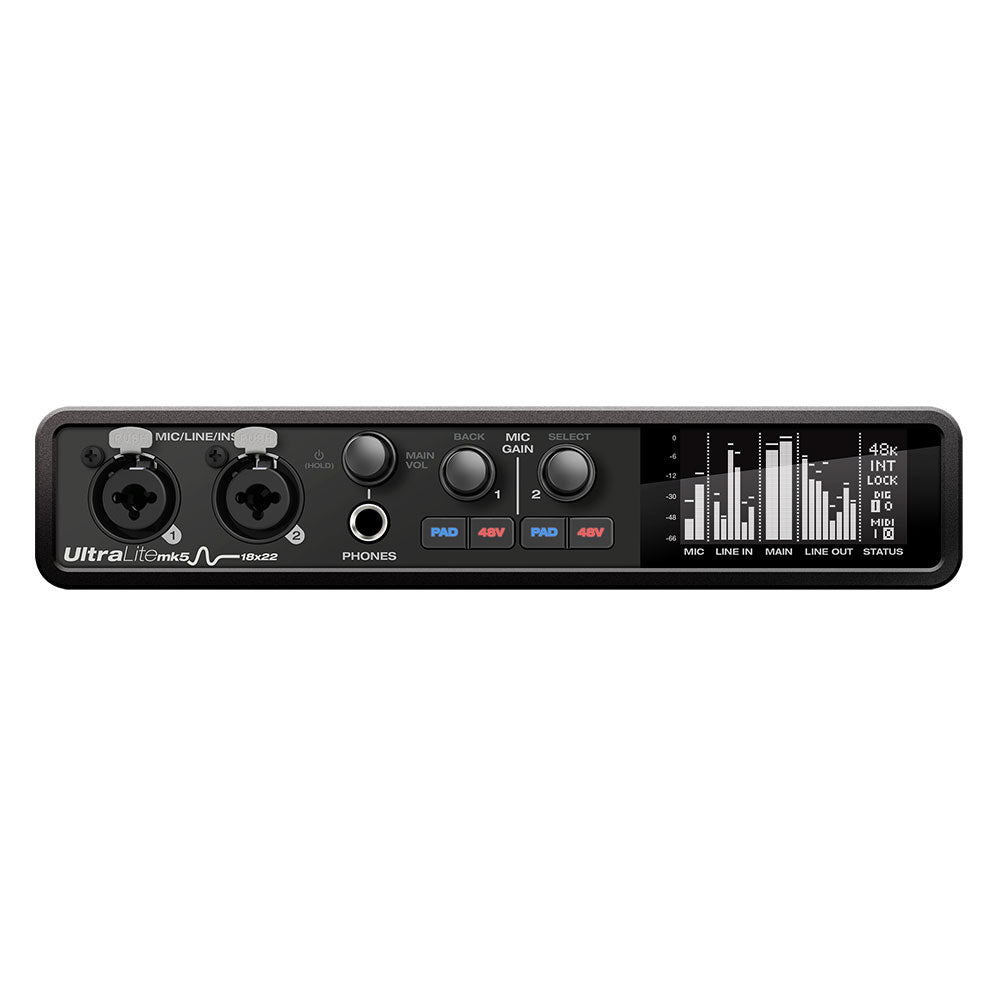

    Front panel 2 x XLR/TRS combo inputs
    1 x 1/4" TRS headphone output
    1 x potentiometer ¥ phone/monitor vol
    2 x potentiometer ¥ mic/instr input gain
    4 x switches ¥ (2) 48V and (2) pad
    1x high-resolution white OLED display for metering/status
    Power External 12-18V DC power supply
    1.0A max ¥ tip pos or neg
    Dimensions (width x depth x height, enclosure only) 8.6 x 6.9 x 1.75 inches
    22 x 17.5 x 4.5 cm
    Weight 2.875 lbs / 1.31 kg
    System Requirements
    Mac System Requirements Intel Core i3 Mac or faster (including the new M1 Macs)
    4 GB RAM; 8 GB or more recommended
    macOS version 10.11 or later
    (Optional driver requires 10.13 or later)
    Available USB port
    A large hard drive (at least 500 GB for recording)
    Windows System Requirements Intel Core i3 PC (or AMD equivalent)
    4 GB RAM; 8 GB or more recommended
    Windows 10
    Available USB port
    A large hard drive (at least 500 GB for recording)
    Class-Compliant Support USB audio class compliant for plug-and-play operation on Mac or iOS (no driver required)
    Included Software CueMix 5
    MOTU Performer Lite
    6GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU
    Compatible Mac Software The UltraLite-mk5 ships with standard Core Audio drivers for macOS for compatibility with virtually all Core Audio-compatible apps, including:
    MOTU Performer Lite
    MOTU Digital Performer
    Avid Pro Tools (version 9 or later)
    Apple Logic Pro
    Apple Logic Express
    Apple Garage Band
    Apple SoundTrack Pro
    Ableton Live
    Presonus Studio One
    Propellerhead Record / Reason
    Steinberg Cubase
    Cockos Reaper
    Native Instruments Kontakt
    Waves stand-alone apps (and plug-ins, via compatible host)
    Compatible Windows Software The UltraLite-mk5 ships with standard ASIO and Wave drivers for Windows 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
    MOTU Performer Lite
    MOTU Digital Performer
    Avid Pro Tools (version 9 or later)
    Ableton Live
    Cakewalk Sonar
    Cockos Reaper
    Image Line FL Studio
    Native Instruments Kontakt
    Presonus Studio One
    Propellerhead Record / Reason
    Sony Vegas Pro
    Sony Sound Forge
    Sony Acid
    Steinberg Cubase
    Waves stand-alone apps (and plug-ins, via compatible host)
