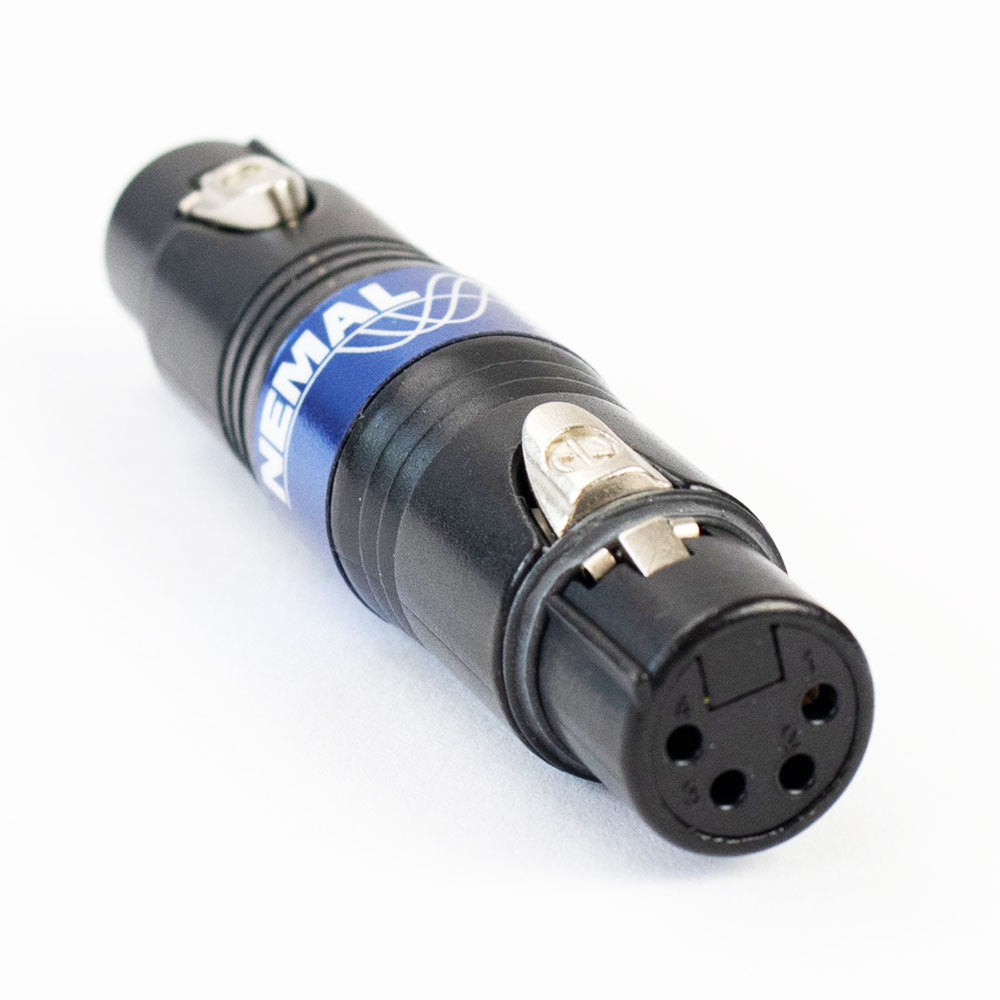

Nemal Electronics XLR4F4F - 4-Pin XLR Female to 4-Pin XLR Female Adapter
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Nemal Pro Audio XLR adapters allow you to quickly and reliably connect equipment and cables with differing XLR pin counts and genders. Manufactured in Nemal's Miami plant, these adapters incorporate Neutrik gold-plated contacts in an attractive, rugged custom machined black housing. The adapters are extremely robust and compact.
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Temperature range | -30 ¡C to +80 ¡C |
| Lifetime | > 1000 mating cycles |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 3 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7.5 A |
| Rated Voltage | <50V |
Nemal Pro Audio XLR adapters allow you to quickly and reliably connect equipment and cables with differing XLR pin counts and genders. Manufactured in Nemal's Miami plant, these adapters incorporate Neutrik gold-plated contacts in an attractive, rugged custom machined black housing. The adapters are extremely robust and compact.
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Temperature range | -30 ¡C to +80 ¡C |
| Lifetime | > 1000 mating cycles |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 3 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7.5 A |
| Rated Voltage | <50V |
