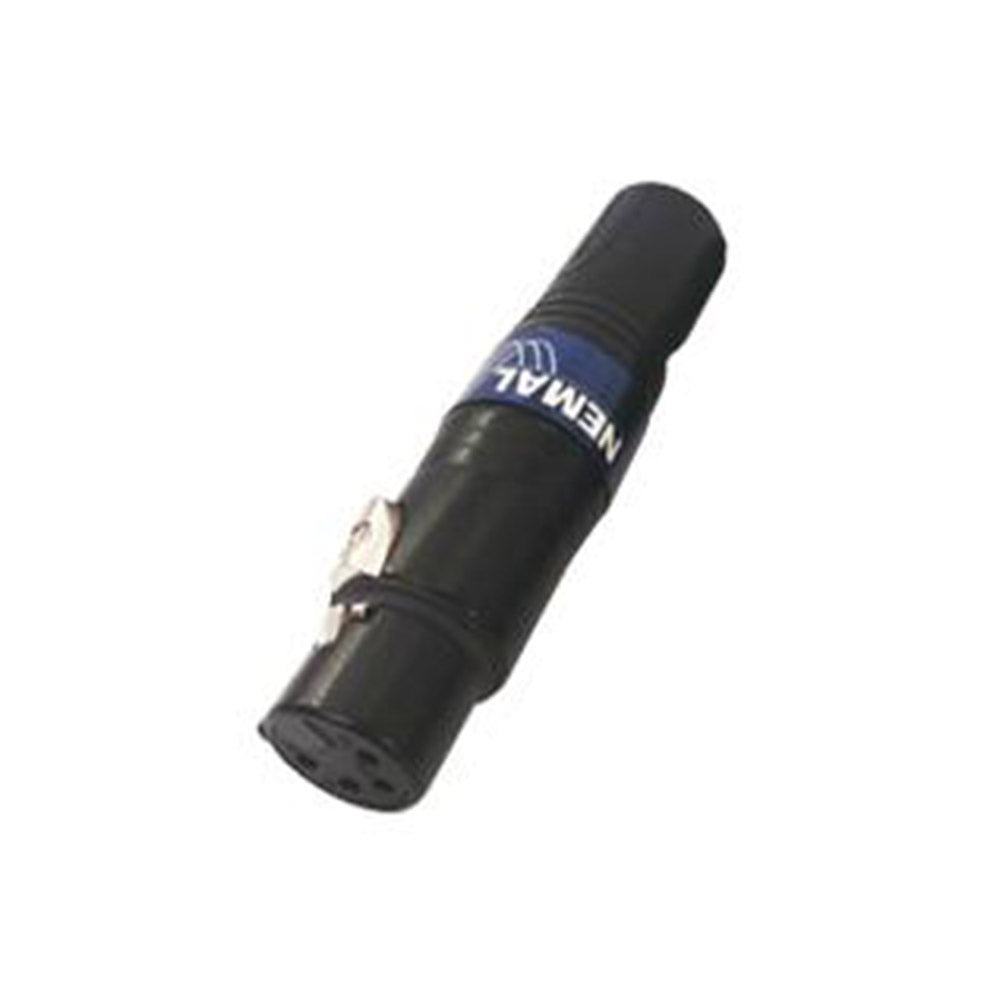

Nemal XLR 4-Pin Female to 5-Pin Male Inline Adapter
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description
Nemal Pro Audio XLR adapters allow you to quickly and reliably connect equipment and cables with differing XLR pin counts and genders. Manufactured in their Miami plant, these adapters incorporate Neutrik gold-plated contacts in an attractive, rugged custom machined black housing. The adapters are extremely robust and compact.
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Temperature range | -30 ¡C to +80 ¡C |
| Lifetime | > 1000 mating cycles |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 3 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7.5 A |
| Rated Voltage | <50V |
Nemal Pro Audio XLR adapters allow you to quickly and reliably connect equipment and cables with differing XLR pin counts and genders. Manufactured in their Miami plant, these adapters incorporate Neutrik gold-plated contacts in an attractive, rugged custom machined black housing. The adapters are extremely robust and compact.
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Temperature range | -30 ¡C to +80 ¡C |
| Lifetime | > 1000 mating cycles |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 3 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7.5 A |
| Rated Voltage | <50V |
