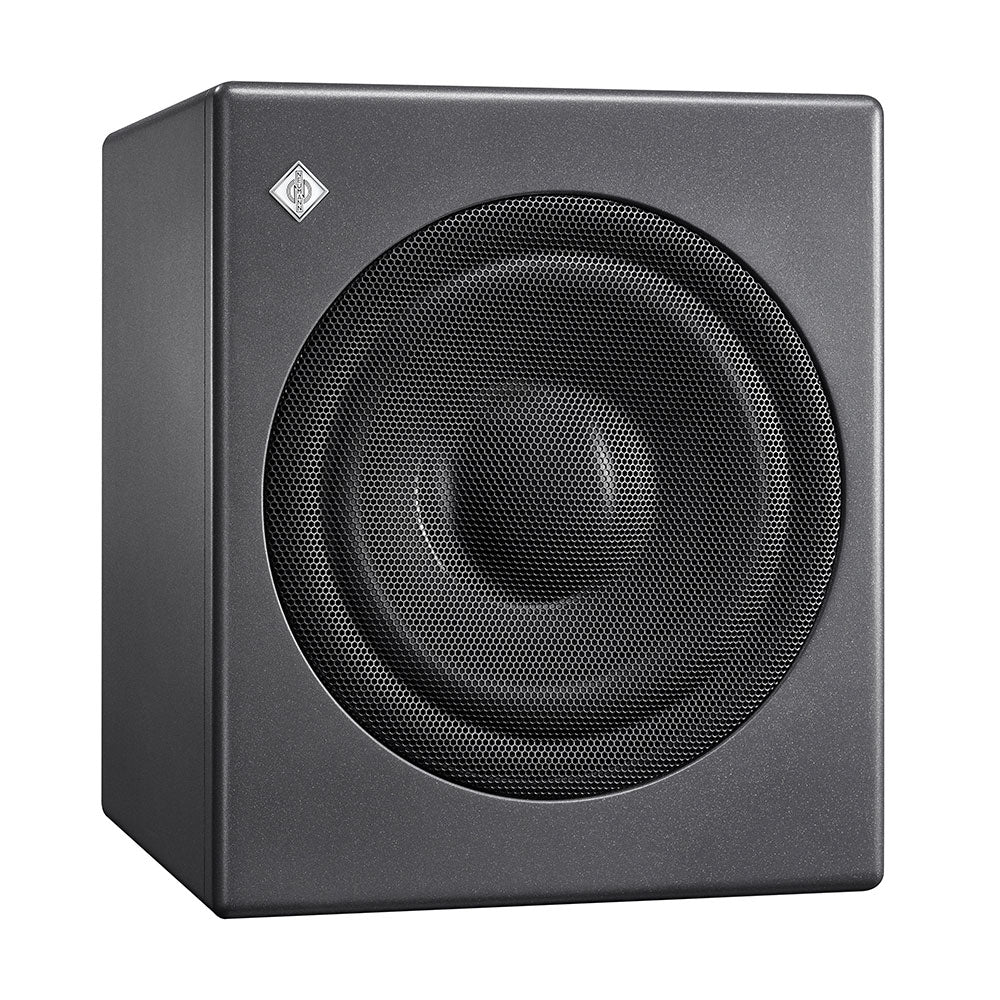

Neumann KH 750 DSP Compact DSP-Controlled Studio Subwoofer
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The KH 750 is the ideal choice for smaller rooms and smaller studio monitors, such as the KH 80 DSP. It has a unique and flexible 2.0/0.1 Bass Manager that allows for the subwoofer to be used in many different system configurations. The back panel features analog and digital inputs and outputs, four routing modes, fourth-order DSP crossovers and adaptable acoustical controls to allow for seamless system integration.
Via standard IP networking, Neumann.Control gives full access to all the functions of the KH 750 DSP Subwoofer that are not currently available via the back panel. Systems of loudspeakers can be defined, from mono to 3D, aligned for a good in-room sound, and then operated centrally: Setup, Align, Operate. At last, you do not need to be an expert to bring a subwoofer into a room, even a small room.
The KH 750 DSP subwoofer is designed to complement Neumann's extensive range of monitors, and can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.
Features:
- Decreases the bass extension of the monitoring system
- Increases the maximum SPL of loudspeakers
- Decreases harmonic and intermodulation distortion of loudspeakers
- Reproduces the LFE channel
- Reproduces the "Sub" signal of a bass managed multichannel source
- Makes a Plane Wave Bass ArrayTM system
- Works as an extension for KH 810, KH 870 and KH 805 subwoofer systems
| Acoustics | |
| Free field frequency response | ±6 dB 16 ... 800 Hz |
| Free field frequency response | ±3 dB 18 É 750 Hz |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
| Sine wave output with a THD < 0.5 % at 1 m in half space | 95 dB SPL (>70 Hz) |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 105.0 dB SPL |
| Dolby DARDT. Max SPL bass managed | 113 dB |
| Acoustical Principle | Sealed |
| Analog Inputs and Outputs | |
| Analog input(s) | 2 x XLR: analog electronically balanced |
| Analog input impedance | >13k Ohms |
| Max. input level | +24 dBu |
| Common mode rejection ratio (CMRR) | > 56 dB @ 15 kHz |
| Max. input level | < +24 dBu |
| Common mode rejection ratio (CMRR) | > 56 dB @ 15 kHz |
| Volume control | via Neumann.Control software |
| Volume control range; resolution | 0 É -° dB; 0.1 dB |
| Analog dynamic range; THD+N (A-D-A) | 119 dB(A); <0.003% (-90 dB) |
| Digital Inputs and Outputs | |
| Digital input(s) | BNC (75 ½): AES3; S/P-DIF |
| Digital output(s) | BNC (75 ½): AES3 |
| Digital converter: resolution; design | 16 É 24-bit DAC; _· |
| Digital converter: sampling rate | 22.05; 24; 32; 44.1; 48; 64; 88.2; 96; 176.4; 192 kHz |
| Digital internal sampling rate | 48 kHz |
| Output sampling rate | 48 kHz |
| Dynamic range | A-D-A (Converter) >120 dB(A) |
| Dynamic range | D-A >123 dB(A) |
| Digital sensitivity | -18 dBFS = 100 dB SPL at 1 m |
| Latency ADA / DA | 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase) |
| Delay: User adjustable delay range | 0 ... 100 ms and 2 x 0 ... 20.8 ms |
| Delay: Resolution: time; distance | 0.1 ms; 3.44 cm (1 3/8Ó) |
| Delay: Max. frames Audio-video synchronisation (lip sync) | 2.5 (40 ms) frames; 3 (33 ms) frames |
| Delay: Time-of-flight maximum distance | 2 x 7.16 m (23' 5") |

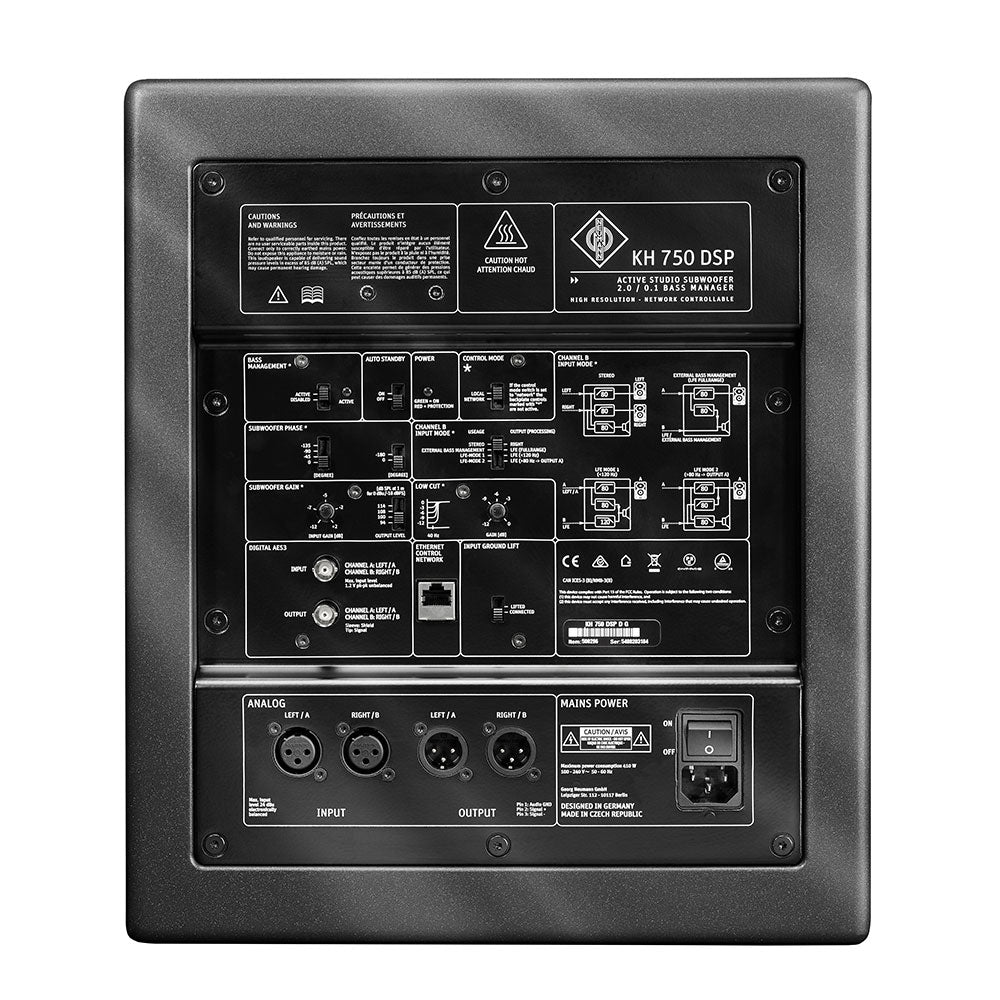

| Use Interfaces /Backplate) | |
| Input gain control (sensitivity) | +2 ... -12 dB |
| Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
| Input Select | BNC (75 ½): AES3; S/P-DIF |
| Electronics - Controller | |
| Controller design | Digital; active |
| Crossover frequency | 80 Hz fixed or 60 ... 100 Hz via Neumann.Control |
| Crossover slope | 24 dB/oct; 4th order |
| Equalization: via Neumann.Control software | 8 x full parametric IIR + low / high shelf global balance |
| Automatic room calibration via MA 1 | via PAK 1 accessory and Neumann.Control software |
| FIR phase correction | on outputs: Linear phase (170 Hz ... 16 kHz; +/- 45¡); Analog emulation |
| Protection circuitry | Peak limiter Amplifier thermo limiter woofer temperature limiter electronics temperature limiter power supply temperature limiter power amplifier temperature protection amplifier over current protection amplifier over current protection power supply |
| Infrasonic filter: frequency; slope | 6,5 Hz; 12 dB/oct. |
| Remote control | Neumann.Control software via an RJ45 connector carrying standard IP data |
| Display: On; Normal Operation | Green LED |
| Display: Identification | Flashing red LED |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Red LED |
| Electronics - Amplifiers and Power Supply | |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 256 W |
| Mains Power Supply: input voltage; frequency | SMPS: 100-240 V; 50/60 Hz |
| Power consumption (230 V / 100 V): Standby | <300 mW |
| Power consumption (230 V / 100 V): Idle | 18 W |
| Power consumption (230 V / 100 V): Full output | 410 W |
| Standby | Disabled; 90 mins (default); user defined in software |
| Mechanics | |
| Cabinet material | Wood cabinet, aluminum electronics panel |
| Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) / black (RAL 9005) |
| Operating conditions | +10¡ C to +40¡ C (+50¡ F to +104¡ F); <75% RH, non-condensing |
| Transport/storage conditions | -25¡ C to +60¡ C (-13¡ F to 140¡ F); <90% RH; non-condensing |
| Woofer | 265 mm (10") with protecting black metal grille |
| Product dimensions (height x width x depth) | 383 x 330 x 383 mm (15 1/8" x 13" x 15 1/8") |
| External net volume | 48.4 liters |
| Product weight | 19.5 kg (43 lbs) |
| Packed dimensions (height x width x depth), mm (inches) | 515 X 395 X 490 mm |
| Packed weight | 22.0 kg (48 lbs 8 oz) |
| Packed cube | 0.100 m_ |
| Delivery includes | 1 x KH 750 DSP G Mains cable(s) - depending on variant: EU; UK; US; CCC; KC 1 x Getting Started Quickly guide 1 x Operating Manual |
| Acoustical Axis horizontal | 165 mm |
| Acoustical Axis vertical (from bottom) | 192 mm |
