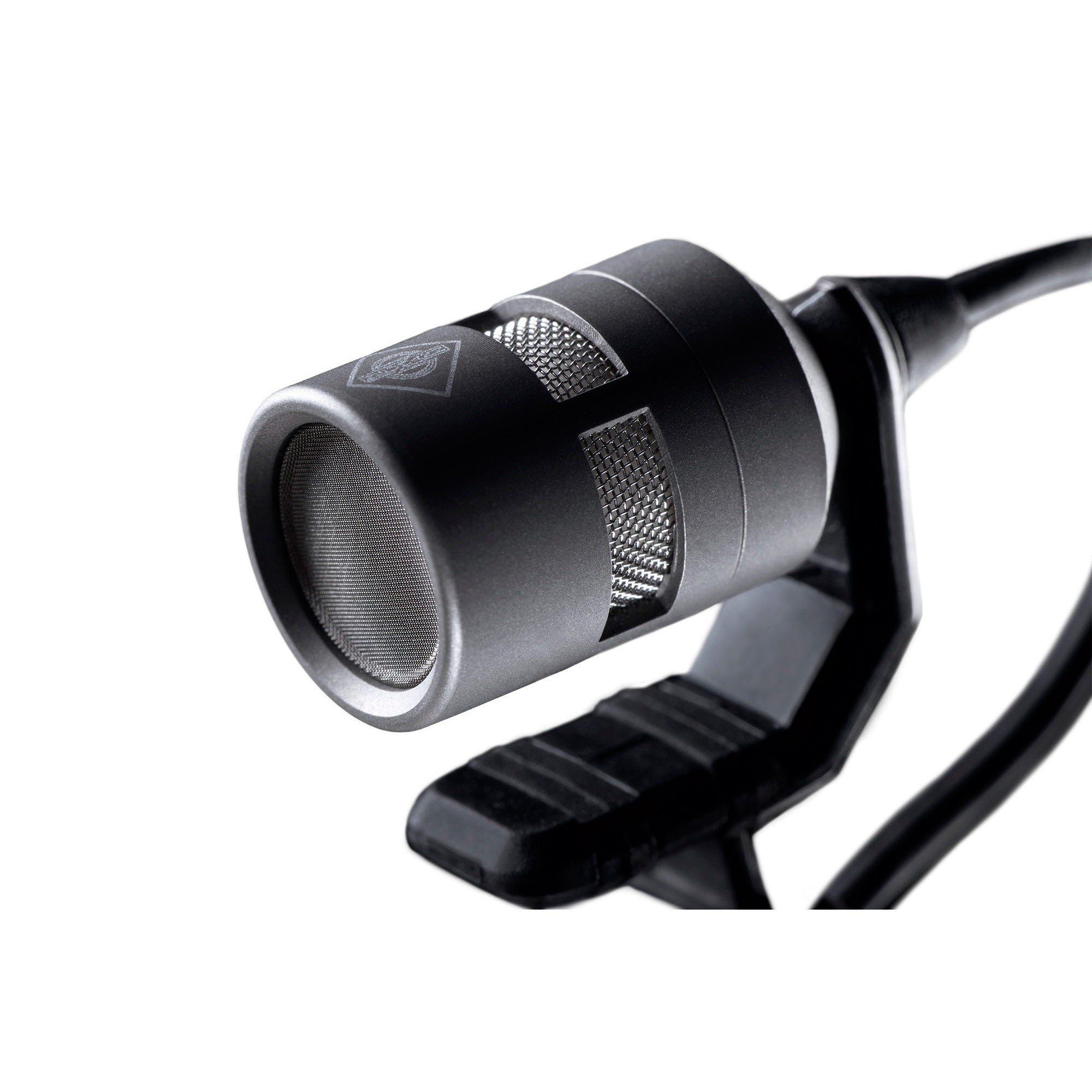

Neumann KK 14 - Capsule Head for MCM Microphone System


  • Dale #:

    NEUM-KK14
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

As part of the Miniature Clip Mic System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications. Features: Layered capsule design overcomes former electret restrictions Enhanced clarity across critical frequency ranges Cardioid pattern ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

As part of the Miniature Clip Mic System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications.

Features:

  • Layered capsule design overcomes former electret restrictions
  • Enhanced clarity across critical frequency ranges
  • Cardioid pattern
  • Unmatched tonal consistency
  • Road-tough and long-lasting design


RAISING THE ELECTRET PRINCIPLE TO A NEW LEVEL
The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.

THE 8 PARTS OF PERFECTION
To get there, Neumann engineers rethought the production process for electret-based microphones. Where classic solutions rely on highly integrated designs, Neumann chose a layered structure where every module of the KK 14 is built and designed to deliver the perfect result. The components are then assembled by hand in Germany. This eliminates typical compromises and opens the spectrum for formerly unmatched acoustic qualities. While the titanium housing is one ingredient to a road-tough design, it is also an expression of the inner elegance in design and engineering.

TONAL CONSISTANCY AND ROAD-TOUGH DESIGN
The layered design also delivers a yet unheard level of tonal consistency ‒ every capsule sounds exactly the same. It saves engineers the time needed for basic EQing and delivers consistent sound right from the early soundcheck.

As a part of the Neumann Miniature Clip Mic MCM System, the new series comes with an unparalleled low cost of ownership. The system is designed for years instead of just a season. Its modular design also allows for easy replacements. Nine mounting clips allow for reliable positioning on any instrument while staying gentle to every surface. The system connects to all the important wireless systems and includes cable options for a 3.5 mm jack, Lemo, 4-pin mini-XLR, MicroDot, or wired connection.

More +

Product Specs

Acoustical operating principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm 3.6 mV/Pa ≅ -49 dBV
Rated Impedance 10 Ohms
Equivalent noise level, CCIR 1 31 dB
Equivalent noise level, A-weighted 2 23 dB-A
Maximum SPL for THD 0.5% 3 153 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4 63 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5 71 dB
Maximum output voltage 12 dBu
Power supply max. 10 V, with Rfeed = 20 kohms
Weight 2.3 g
Diameter 12 mm
Length 11 mm
Current consumption 0.22 mA
Operating temperature range 0 °C - +40 °C
Operating Humidity range 0 %…90 % rel. hum
Storage temperature range −20 °C - +70 °C
Storage Humidity range 0 %…95 % rel. hum
