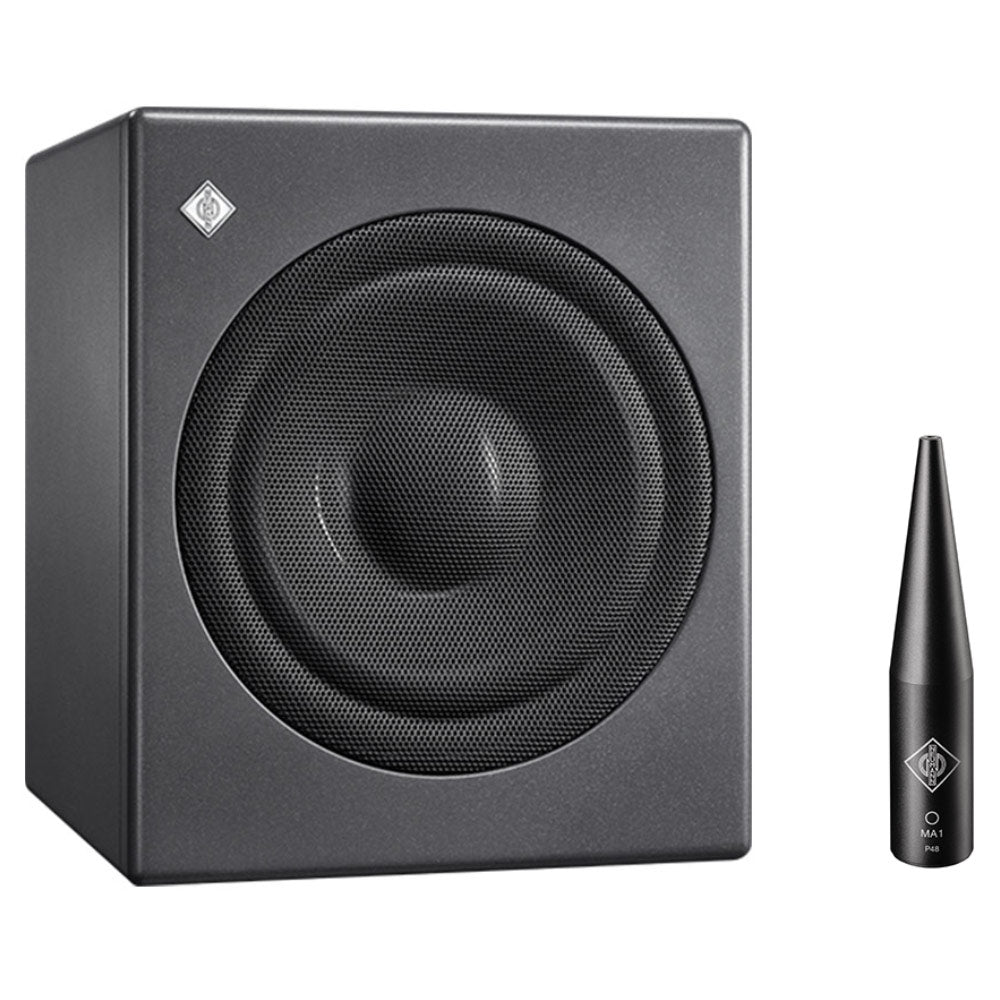

Neumann MONITOR ALIGNMENT KIT 1 - KH 750 DSP Subwoofer with MA 1 Calibration Mic and Software

Neumann's Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room - from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced calibration algorithms, jointly developed with the world's leading institute in audio processing, Fraunhofer IIS, guarantee an optimally adapted amplitude and phase correction for exact and reliable monitoring.

Features:

• Calibration algorithms jointly developed with Fraunhofer IIS
• For stereo setups with KH 80 DSP and all pairs of analog (non DSP-based) Neumann monitors using the KH 750 DSP subwoofer
• Individually calibrated measurement microphone
• Room adaptive target curve
• Phase and amplitude optimization for analog Neumann monitors
• For Mac and PC

RELIABLE MONITORING ANYWHERE
Neumann's Automatic Alignment is a dedicated tool for stereo sets of KH 80 DSP monitors with or without the KH 750 DSP as well as two non DSP-based KH-Line monitors connected to the analog outputs of a KH 750 DSP subwoofer. Unlike conventional correction software it is an integrated solution with novel algorithms, jointly developed with the Fraunhofer Institute for Integrated Circuits (IIS) specifically for Neumann studio monitors. No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors themselves. As a unique benefit, the software not only optimizes the amplitude response but also optimizes the phase. This provides highest accuracy in terms of tonality and impulse reproduction.

HOW IT WORKS
In a first step, acoustic data of the listening environment is gathered in a guided process. No special acoustic knowledge is required. Simply connect your Neumann monitors to the outputs of your audio interface or monitor controller. Additionally, your DSP-based KH-line monitors must also be connected to your computer's ethernet port. For multiple connections, a standard ethernet switch will do.

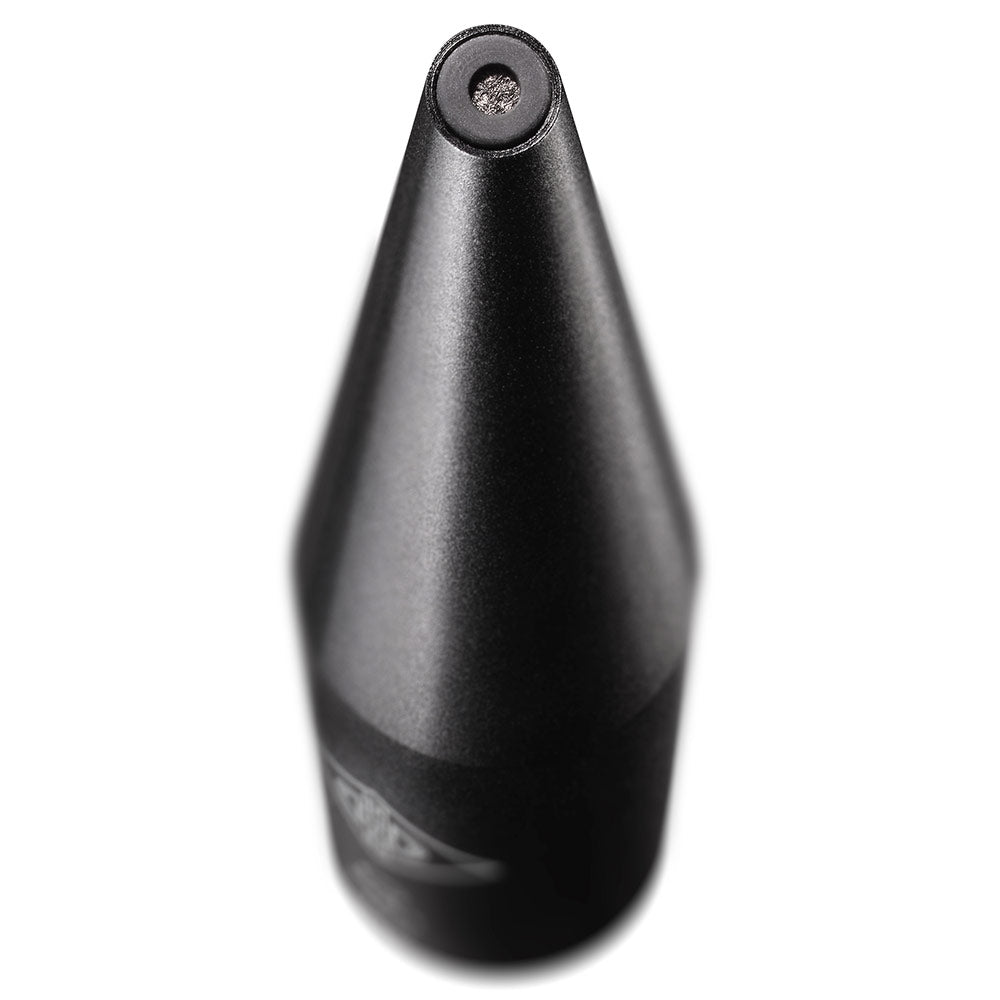

Now plug the measurement microphone into your microphone input. This microphone was specifically developed for this software and is individually calibrated by it. The software will guide you through the measurement process.

From the measured data, the software ascertains the room's acoustic properties. The individual correction parameters are generated according to a room-specific target curve calculated by the software. Neumann's decades of experience in calibrating monitoring systems in studio control rooms has been incorporated into this process. Of course, you can modify the target curve to your needs.

Additionally, the alignment process ensures an optimal summation in the low frequencies when a subwoofer is used.

All resulting correction parameters are stored and processed in the DSP-powered monitors. So there is nothing to worry about anymore, no plug-ins, no driver issues. And no additional cables, either: Once the alignment process is completed, the ethernet connections are not required anymore.

Using the KH 750 DSP subwoofer, stereo sets of analog KH-Line monitors, too, can be used with the Automatic Monitor Alignment Software. The KH 750 DSP has enough processing power to align the entire system including the two analog loudspeakers connected to its outputs. Additionally, KH 120, KH 310, and KH 420 loudspeakers profit from phase linearization of their built-in crossover filters! The result is increased clarity, a dry bass, and a time-correct, more accurate depiction of reverbs and acoustic spaces.

Hardware Requirements:

• 1 pair of KH DSP loudspeakers or 1 KH 750 DSP subwoofer in combination with a pair of analog (non-DSP based) KH loudspeakers

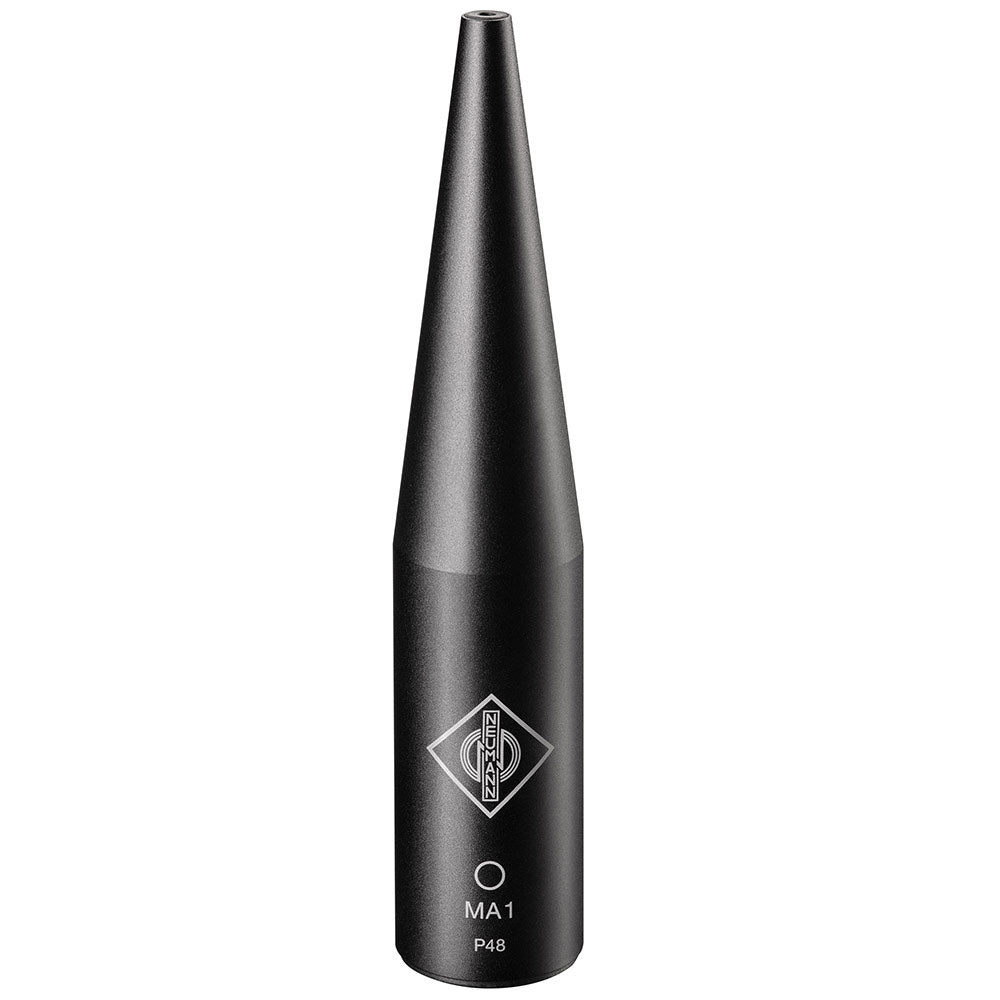

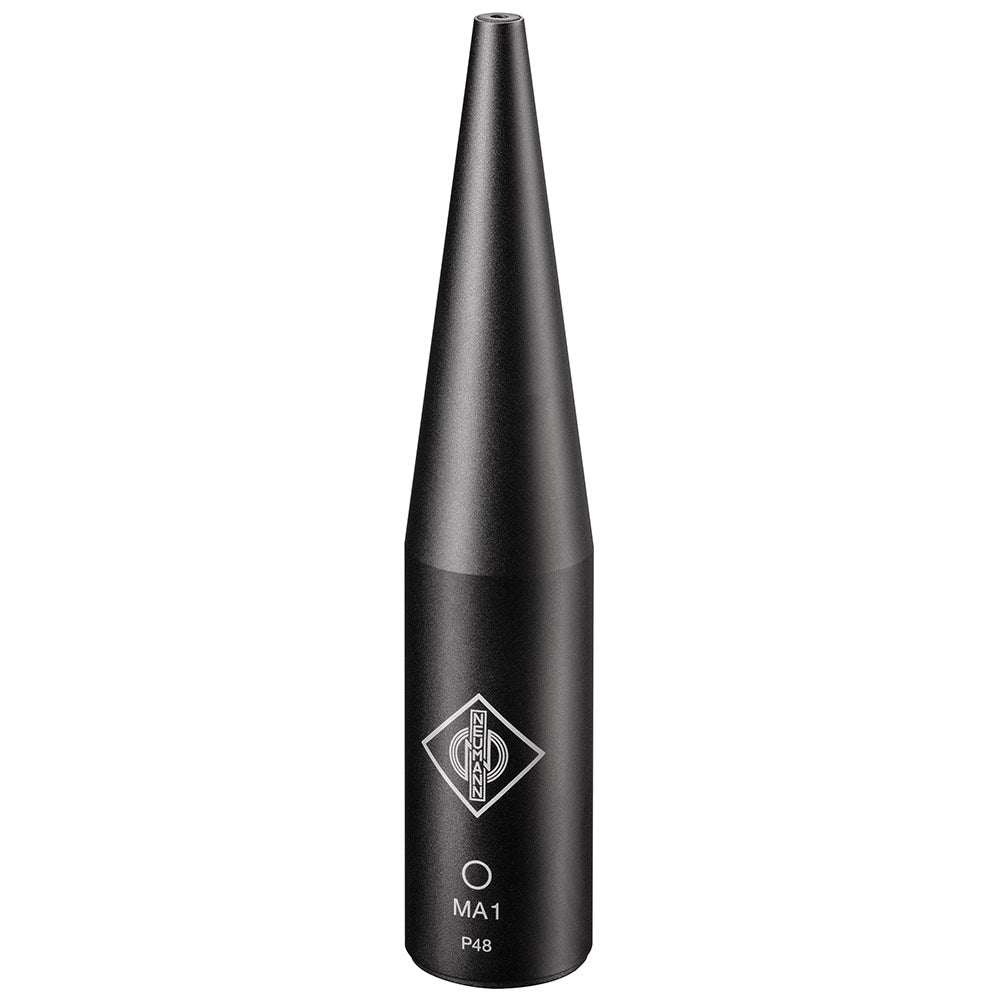

• Neumann MA 1 measurement microphone
• Computer (Windows 10 64 Bit and macOS 10.13, 10.14 or 10.15)
• Audio interface with balanced analog input with 48 V phantom power and 2 balanced analog outputs or digital AES3 output (only with KH 750 DSP)
• Network switch
• Screen resolution of 1280x720 px or higher

Software Requirements:

• Operating system: Windows 10 64 Bit and macOS 10.13, 10.14 or 10.15
• Neumann Automatic Monitor Alignment software
• ASIO driver (for Windows)

The following loudspeakers and subwoofers are network-enabled and can be controlled directly by the software:

• KH 80 DSP
• KH 750 DSP

The following loudspeakers are not network-enabled and need to be connected via a network-
enabled subwoofer in order to be included in the system setup.

• KH 120 A
• KH 120 D
• KH 310 A
• KH 310 D
• KH 420/KH 420 + DIM 1

The compact KH 750 DSP is the ideal choice for smaller rooms and smaller studio monitors. It has a unique and flexible Bass Manager (2.0/0.1), analog and digital inputs, four routing modes and adaptable acoustical controls to be used in many different configurations.

The optional Neumann.Control iPad® app gives access to many additional functions. This includes the possibility of aligning Neumann monitors, that are connected to the subwoofer, to the room using the patented "Guided Alignment" and controlling the entire stereo system. This also includes analog* monitors. Detailed information can be found below.

MORE ABOUT THE KH 750 DSP

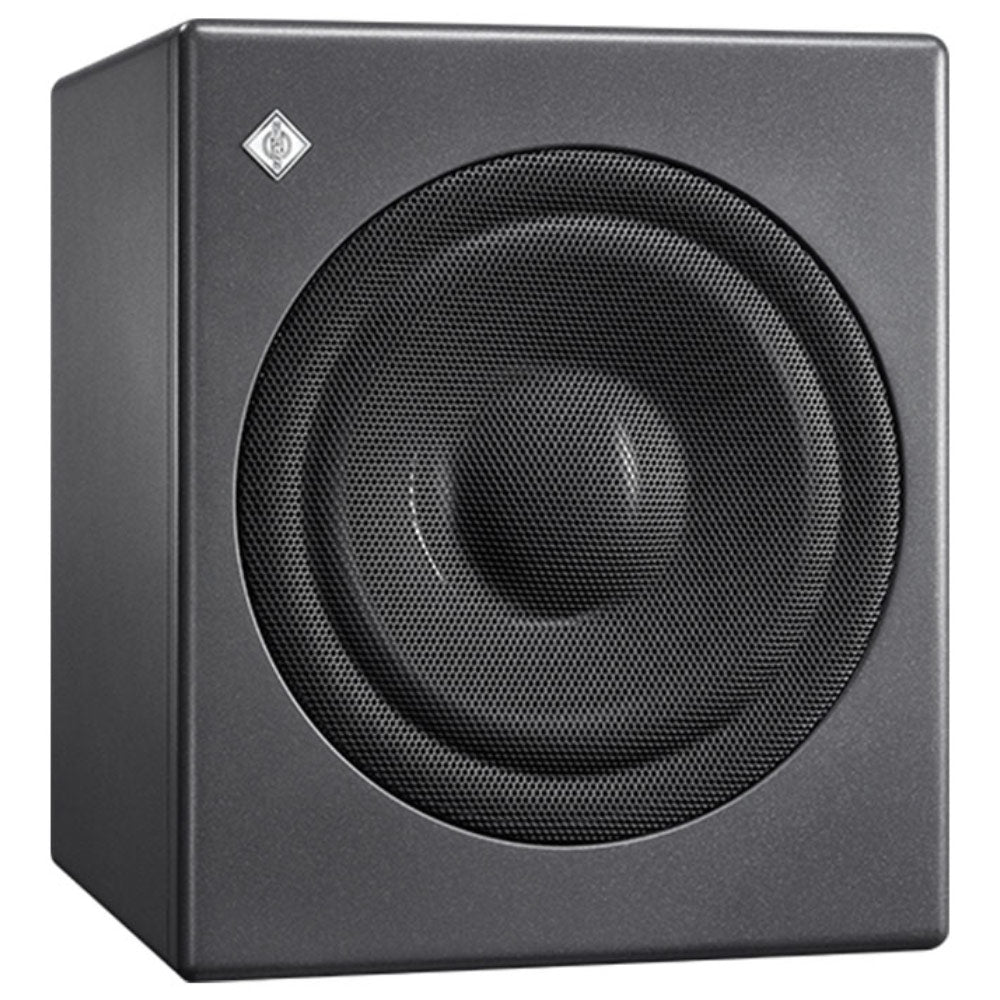

The newly designed 10" long-throw driver has a strong linear working magnet system with ELFF™ technology (Extremely Linear Force Factor™). As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The ultra-compact cabinet is a closed design which brings the fastest possible transient response.

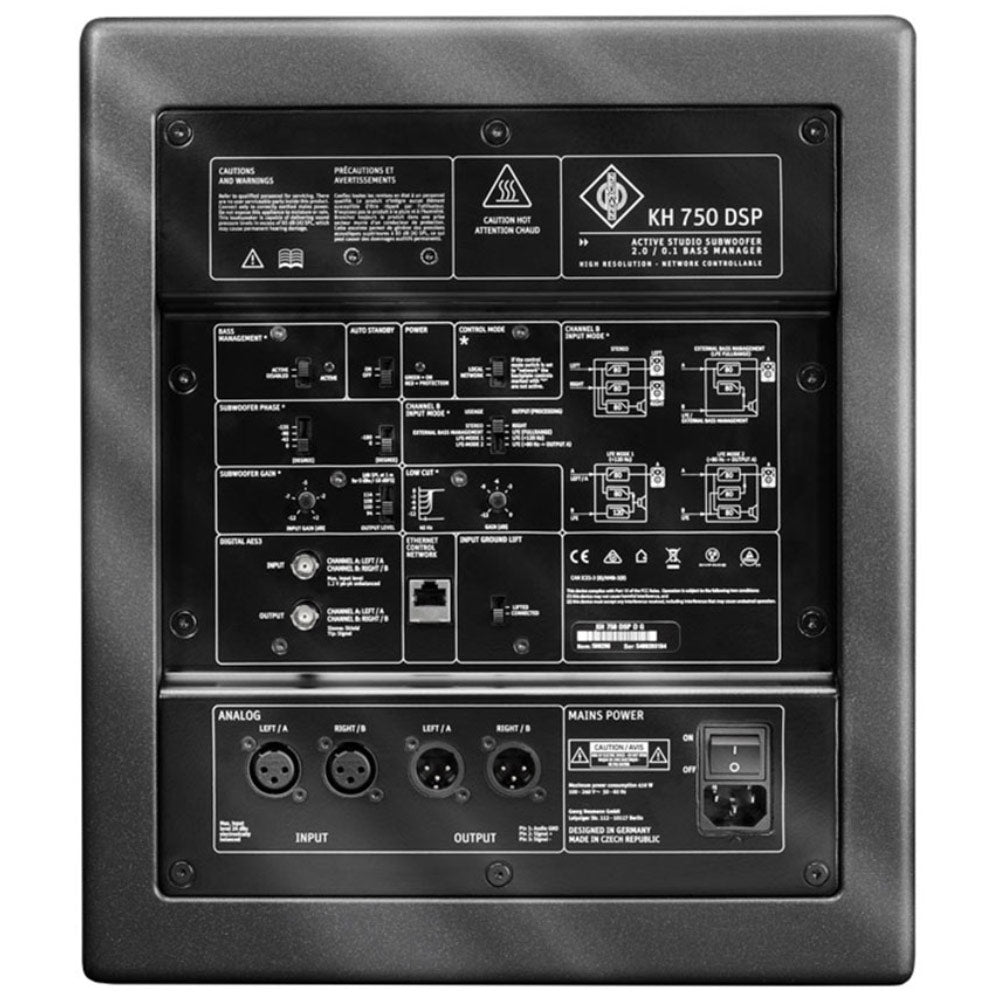

The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in the Neumann.Control iPad® app.

The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.

THE KH 750 DSP AND THE NEUMANN.CONTROL IPAD® APP
By combining the KH 750 DSP with the freely available iPad® app (version 3.0 or newer), the subwoofer becomes the intelligent control center of every Neumann stereo setup. In addition to the KH 80 DSP, the KH 120, KH 310 and KH 420** analog monitors now also benefit from the DSP power of the KH 750 DSP.

The iPad® connects to the subwoofer via a standard IP network with an Ethernet cable between the router and subwoofer. The stereo pair receives the analog audio signal directly from the subwoofer.
