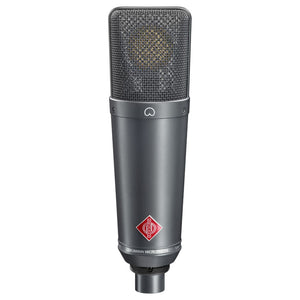

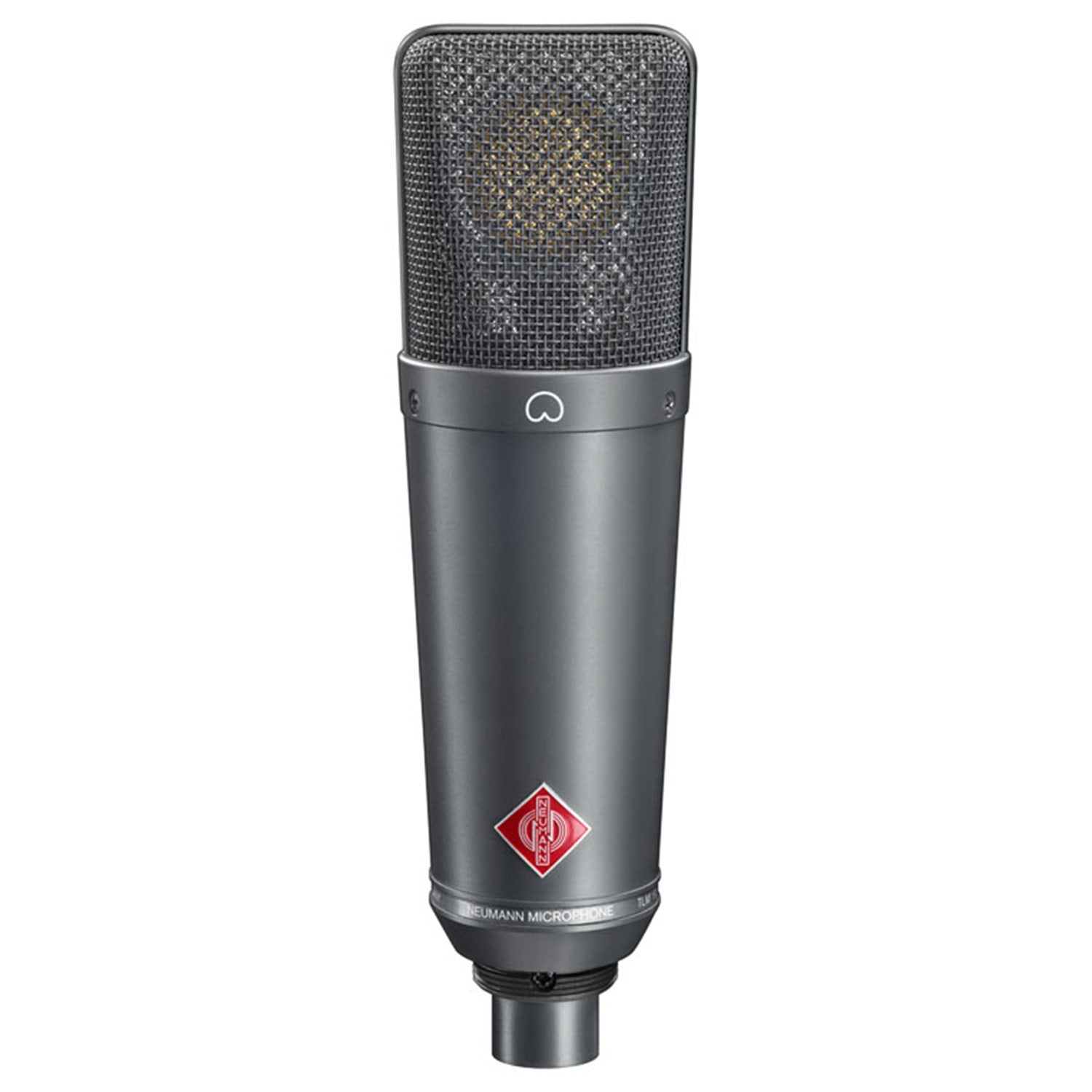

Neumann TLM 193 Cardioid Large Diaphragm Condenser Microphone

  • Dale #:

    NEUM-TLM193
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TLM 193* is a large diaphragm microphone with a cardioid polar pattern. With this microphone Neumann continues its long tradition, and is offering high end technology at an affordable price for musicians and the home recording studio. The microphone uses a transformerless circuit, featuring e... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

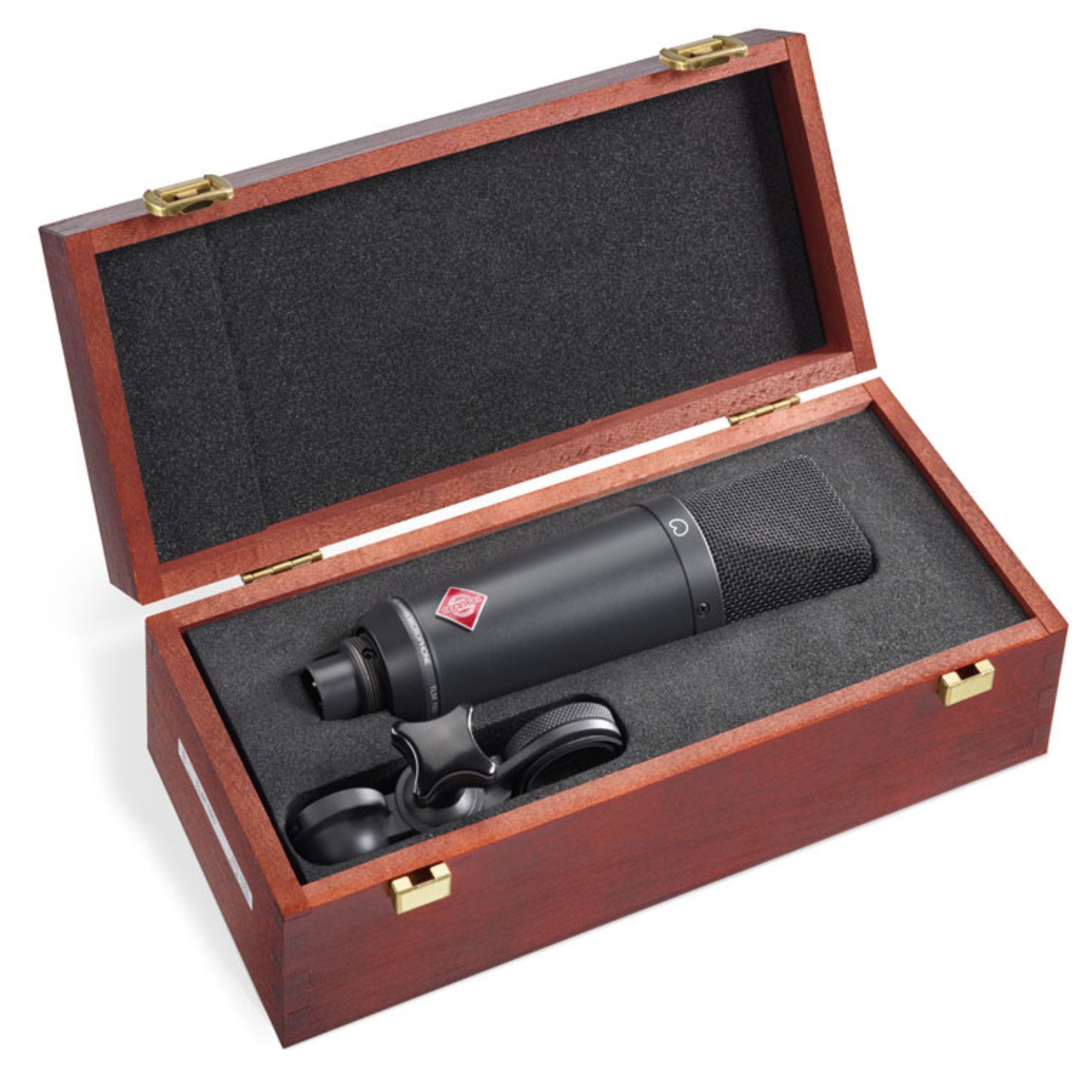

The TLM 193* is a large diaphragm microphone with a cardioid polar pattern. With this microphone Neumann continues its long tradition, and is offering high end technology at an affordable price for musicians and the home recording studio. The microphone uses a transformerless circuit, featuring extremely low self noise and large dynamic range. The polar response is very linear over a wide incidence angle. Thus, even signals coming from the side are reproduced faithfully and without coloration. The exposed surface of the microphone capsule is at ground potential, making it immune to typical interference and contamination. The microphone is supplied with a swivel mount.

Features

  • Large diaphragm cardioid microphone
  • Pressure-gradient transducer
  • Transformerless circuitry
  • Extremely low noise: 10 dB (A)

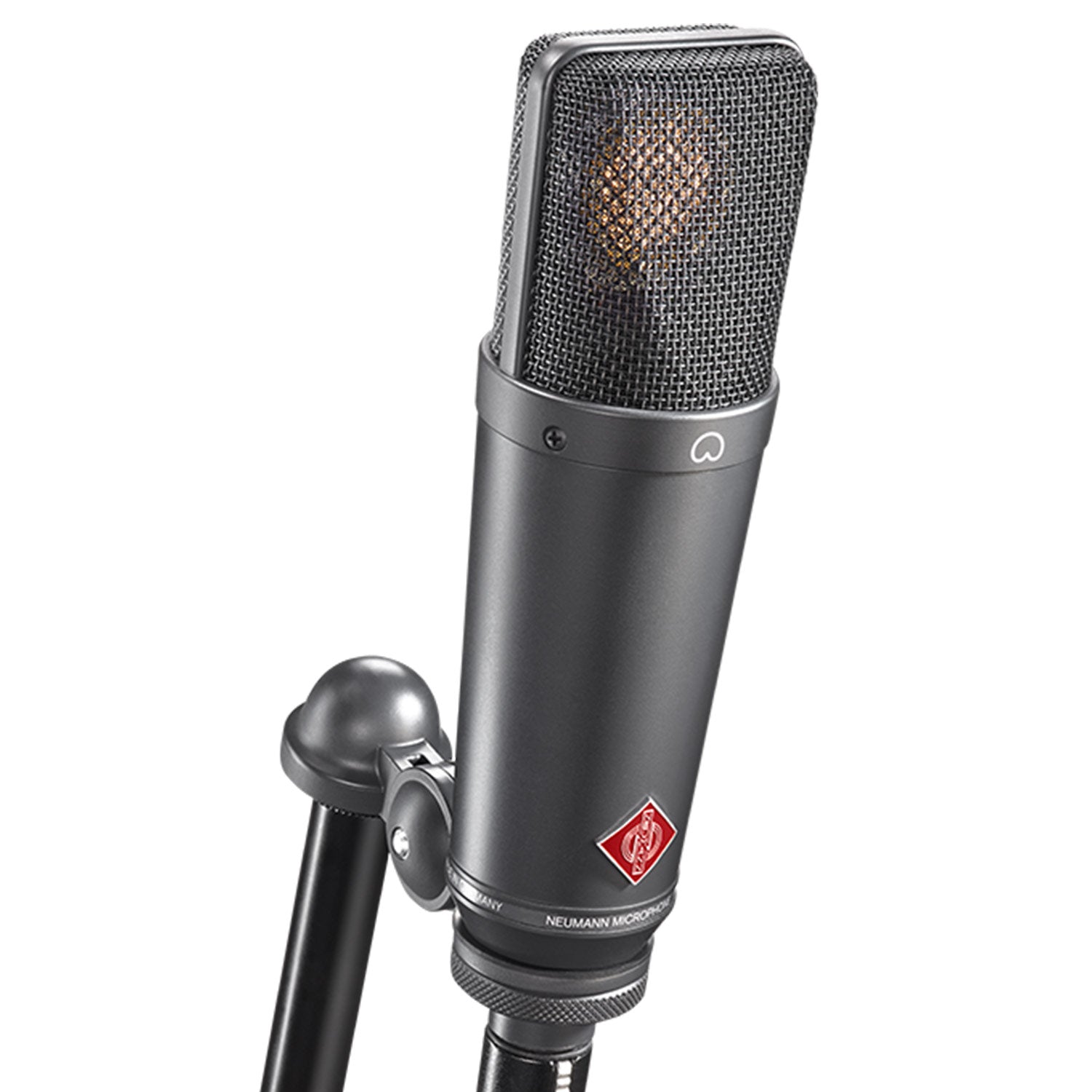

  • Includes swivel mount
  • The "plug and play" microphone for professional studios, musicians and homerecording applications
  • High-quality professional equipment for mid-size budgets

The TLM 193 is a microphone with cardioid characteristic for professional recording and live applications. It is the ideal microphone for professional productions, for musicians and project studios. The TLM 193 has a large diaphragm capsule with cardioid characteristic.
Acoustic features
The TLM 193 is addressed from the front, marked with the Neumann logo. The large diaphragm capsule inside the headgrille has a very smooth frequency response for all polar patterns over a wide acceptance angle. The curves are flat and parallel to the 0° frequency curve up to 10 kHz within a pickup angle of ± 100°. The TLM 193 differs from omnidirectional pressure transducers, where, due to physical reasons, the diffuse-field and free-field responses never agree. This microphone has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment, as more reflections arrive at the microphone from different directions. The acoustic information is not affected in its tonal quality when recorded by the microphone. This characteristic is achieved without resorting to corrective resonance effects. Therefore, the microphone maintains an excellent impulse response reproducing all transient phenomena of music and speech without coloration.
Electrical features

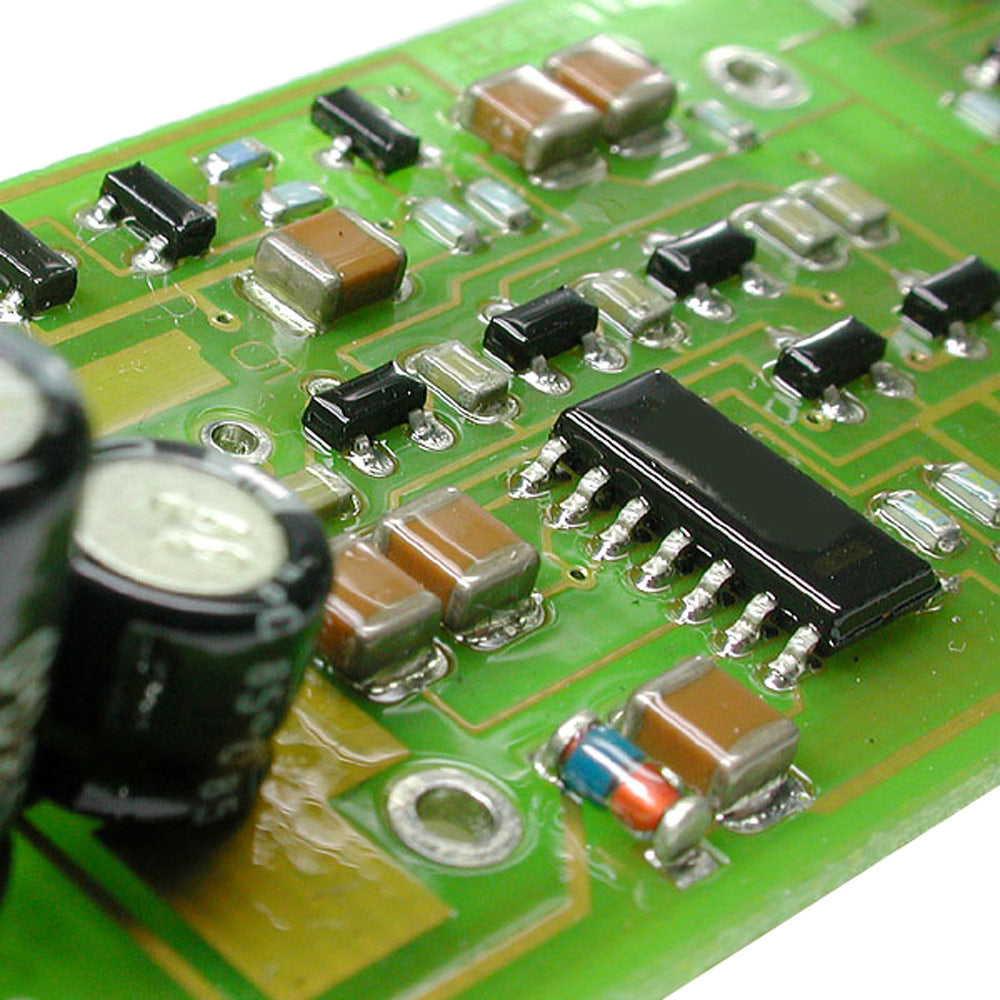

The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference, that may influence the balanced audio signal. Compared to other microphones the self noise level of the TLM 193 is considerably reduced. As it is capable of handling sound pressure levels up to 140 dB without distortion, the TLM 193 provides a dynamic range of 130 dB (A-weighted).
Operational safety
All exposed surfaces of the microphone capsule, including the diaphragms, are at ground potential. This technology makes them highly immune to electrical and atmospheric interference and contamination through microscopic dust particles. The capsule is elastically mounted to avoid any structure borne noise that could interfere with its operation. The frequency response of the TLM 193 amplifier is linear down to 20 Hz. Even very low bass signals are reproduced without coloration. This implies that the microphone becomes more sensitive to subsonic frequencies, from structure borne noise or pop and wind noise. To avoid any LF interference, we recommend to use the EA 1 elastic suspension, the PS 15 pop screen, or the WS 89 windscreen.

More +

Product Specs

Acoustical operating principlePressure gradient transducer
Directional patternCardioid
Frequency range20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohms18 mV/Pa
Rated impedance50 ohms
Rated load impedance1 kohms
Equivalent noise level, CCIR21 dB
Equivalent noise level, A-weighted10 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)73 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)84 dB
Maximum SPL for THD 0.5%140 dB
Maximum output voltage13 dBu
Dynamic range of the microphone amplifier (A-weighted)130 dB
Supply voltage (P48, IEC 61938)48 V ± 4 V
Current consumption (P48, IEC 61938)3 mA
Matching connectorsXLR3F
Weight480 g
Diameter49 mm
Length175 mm
