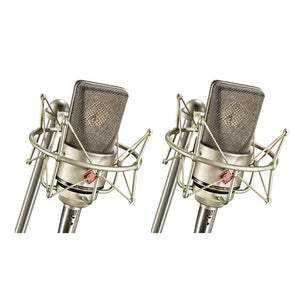

Neumann TLM103 Cardioid Condenser Microphone Stereo Set (Nickel)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Neumann TLM 103 Anniversary large-diaphragm cardioid condenser mic boasts a capsule drawn from the U 87 and transformerless circuitry - not to mention classic Neumann sound! The TLM 103 Anniversary is a great mic for any pro or project studio use and, due to its minimal self-noise, it's been used for classical recordings with a wide dynamic range, sampling (especially for very low amplitude sources), and Foley work. This mic is also robust enough for the live stage, as Jack White has employed the TLM 103 to mic amps in live situations.
Features- Stereo pair
- Nickel finish
- Large-diaphragm cardioid condenser microphone
- Pressure gradient transducer with with one-diaphragm capsule
- Transformerless circuitry
- Extremely low noise
- Includes swivel mount
- Minimal self-noise
- Frequency range: 20Hz-20kHz
- Rated impedance: 50 ohms
- Rated load impedance: 1 kohms
- Maximum SPL for THD 0.5%2: 138 dB
- Aluminum case and shockmount included
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Cardioid |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1000 ohms |
| Equivalent SPL CCIR 468-3 | 17.5 dB |
| Equivalent SPL DIN/IEC 651 | 7 dB-A |
| S/N ratio CCIR 468-3 | 76.5 dB |
| S/N ratio DIN/IEC 651 | 87 dB |
| Maximum SPL for THD 0.5% | 138 dB |
| Maximum output voltage | 13 dBu |
| Dyn. range of the mic. amplifier DIN/IEC 651 | 131 dB |
| Supply voltage | 48 V ± 4 V |
| Current consumption | 3 mA |
| Matching connector | XLR 3F |
| Weight | approx. 500 g |
| Diameter | 60 mm |
| Length | 132 mm |
The Neumann TLM 103 Anniversary large-diaphragm cardioid condenser mic boasts a capsule drawn from the U 87 and transformerless circuitry - not to mention classic Neumann sound! The TLM 103 Anniversary is a great mic for any pro or project studio use and, due to its minimal self-noise, it's been used for classical recordings with a wide dynamic range, sampling (especially for very low amplitude sources), and Foley work. This mic is also robust enough for the live stage, as Jack White has employed the TLM 103 to mic amps in live situations.
Features- Stereo pair
- Nickel finish
- Large-diaphragm cardioid condenser microphone
- Pressure gradient transducer with with one-diaphragm capsule
- Transformerless circuitry
- Extremely low noise
- Includes swivel mount
- Minimal self-noise
- Frequency range: 20Hz-20kHz
- Rated impedance: 50 ohms
- Rated load impedance: 1 kohms
- Maximum SPL for THD 0.5%2: 138 dB
- Aluminum case and shockmount included
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Cardioid |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1000 ohms |
| Equivalent SPL CCIR 468-3 | 17.5 dB |
| Equivalent SPL DIN/IEC 651 | 7 dB-A |
| S/N ratio CCIR 468-3 | 76.5 dB |
| S/N ratio DIN/IEC 651 | 87 dB |
| Maximum SPL for THD 0.5% | 138 dB |
| Maximum output voltage | 13 dBu |
| Dyn. range of the mic. amplifier DIN/IEC 651 | 131 dB |
| Supply voltage | 48 V ± 4 V |
| Current consumption | 3 mA |
| Matching connector | XLR 3F |
| Weight | approx. 500 g |
| Diameter | 60 mm |
| Length | 132 mm |
