Neumann TLM103 MT Cardioid Studio Condenser Microphone (Matte Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The new standard for home recording and the music industry. The mic for everyone who, despite budget limitations, does not want to do without the uncompromising Neumann sound. Cardioid directional characteristic and very low self-noise.
The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.
By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

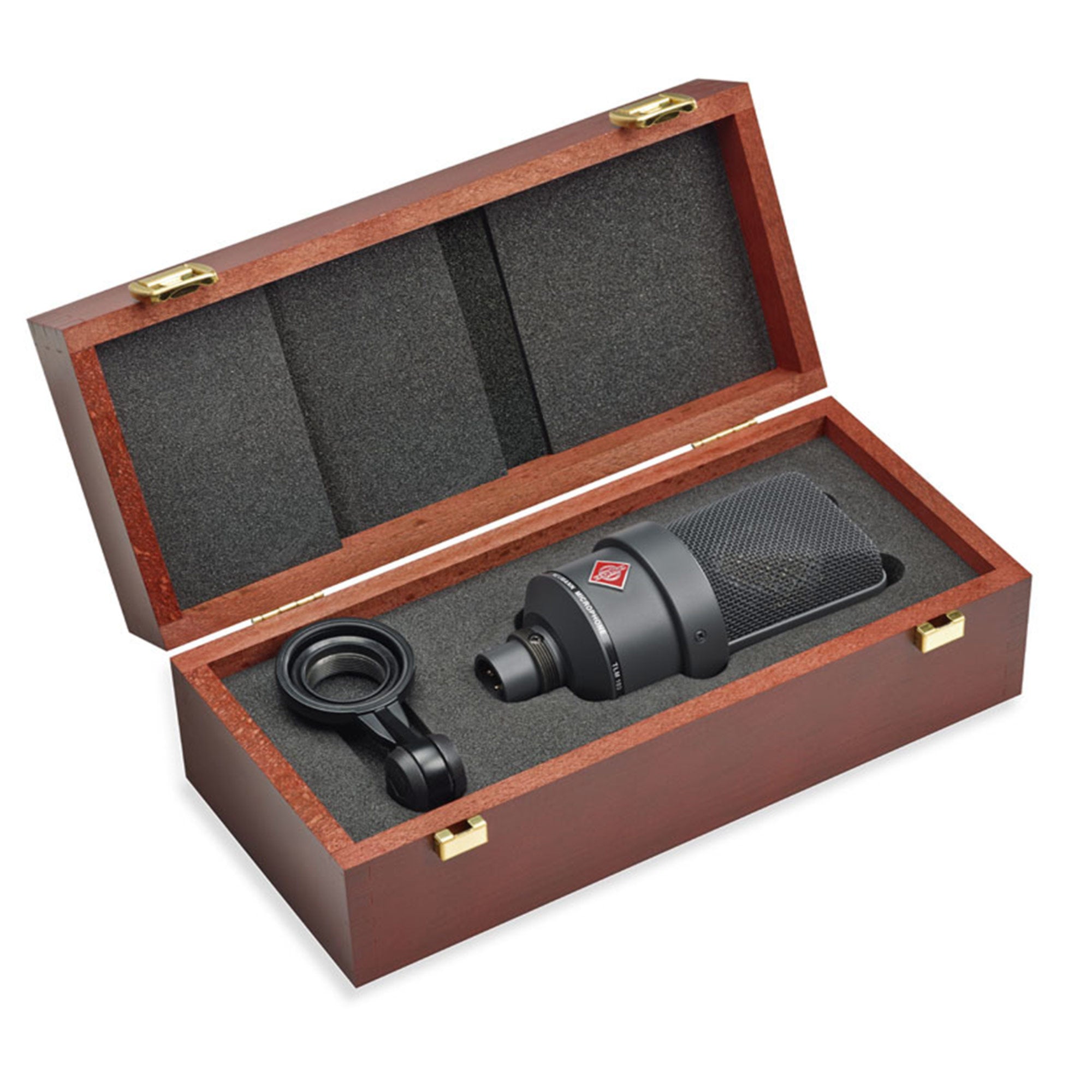

The TLM 103 is available in satin nickel and matte black. Delivery includes an SG 1 metal swivel mount and a wooden jeweler's box.
Features:
- Large diaphragm cardioid microphone
- Pressure gradient transducer with with one-diaphragm capsule
- Transformerless circuitry
- Extremely low noise: 7 dB-A
- Includes swivel mount
- Straightforward handling for homerecording and professional studios
- High-quality professional equipment for limited budgets
Acoustical operating principle | Pressure gradient transducer |
Directional pattern | Cardioid |
Frequency range | 20 Hz ... 20 kHz |
Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa |
Rated impedance | 50 ohms |
Rated load impedance | 1000 ohms |
Equivalent SPL CCIR 468-3 | 17.5 dB |
Equivalent SPL DIN/IEC 651 | 7 dB-A |
S/N ratio CCIR 468-3 | 76.5 dB |
S/N ratio DIN/IEC 651 | 87 dB |
Maximum SPL for THD 0.5% | 138 dB |
Maximum output voltage | 13 dBu |
Dyn. range of the mic. amplifier DIN/IEC 651 | 131 dB |
Supply voltage | 48 V ± 4 V |
Current consumption | 3 mA |
Matching connector | XLR 3F |
Weight | approx. 500 g |
Diameter | 60 mm |
Length | 132 mm |
