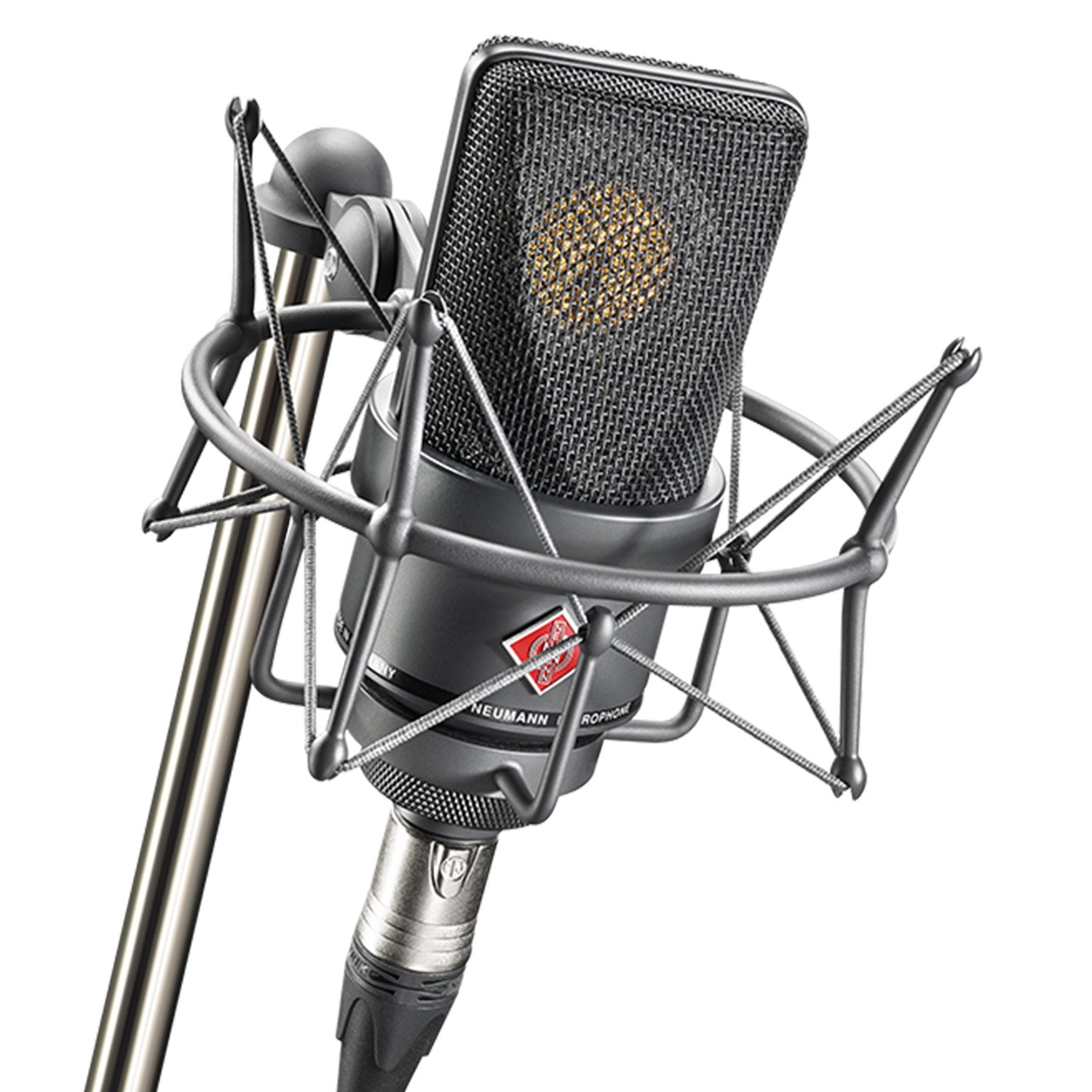

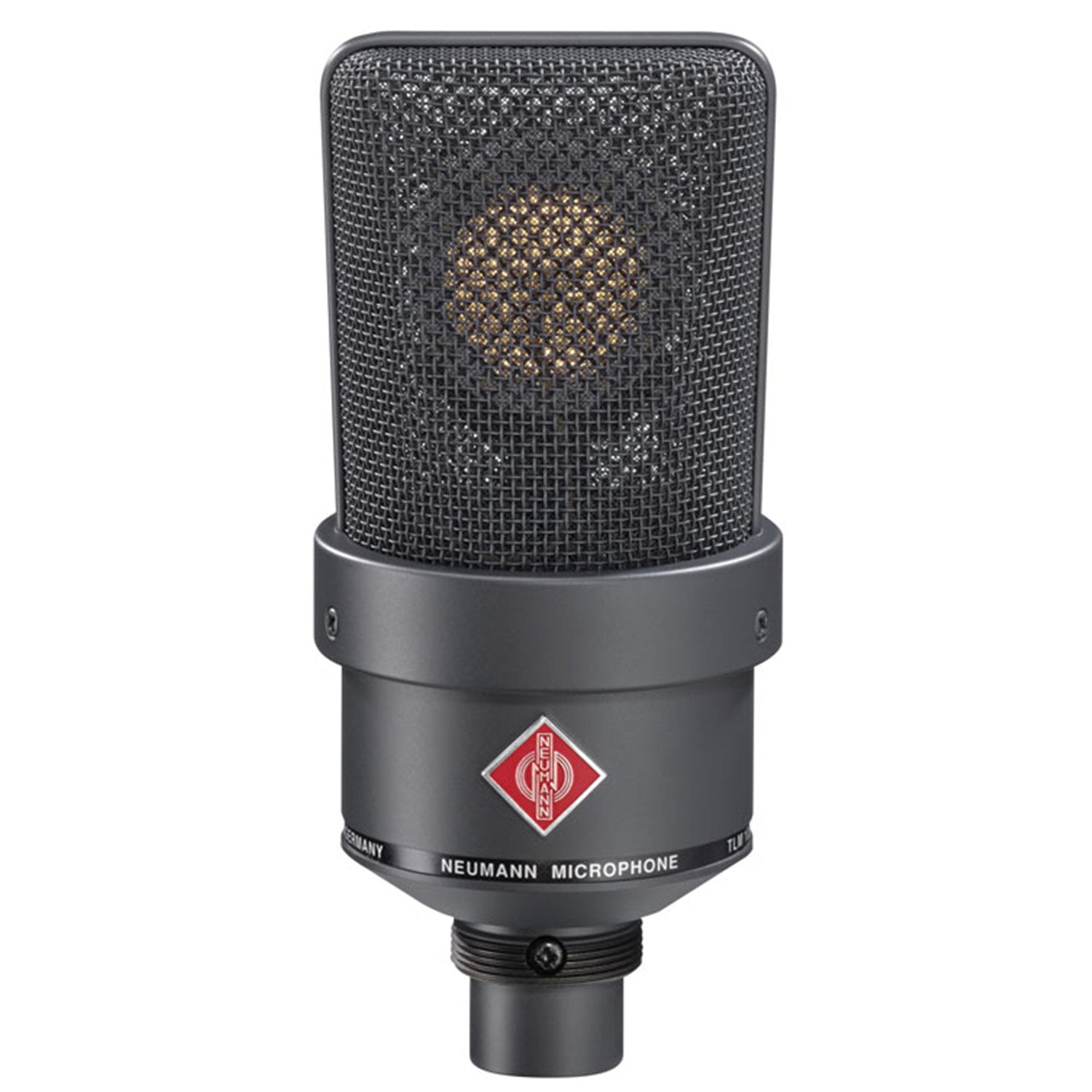

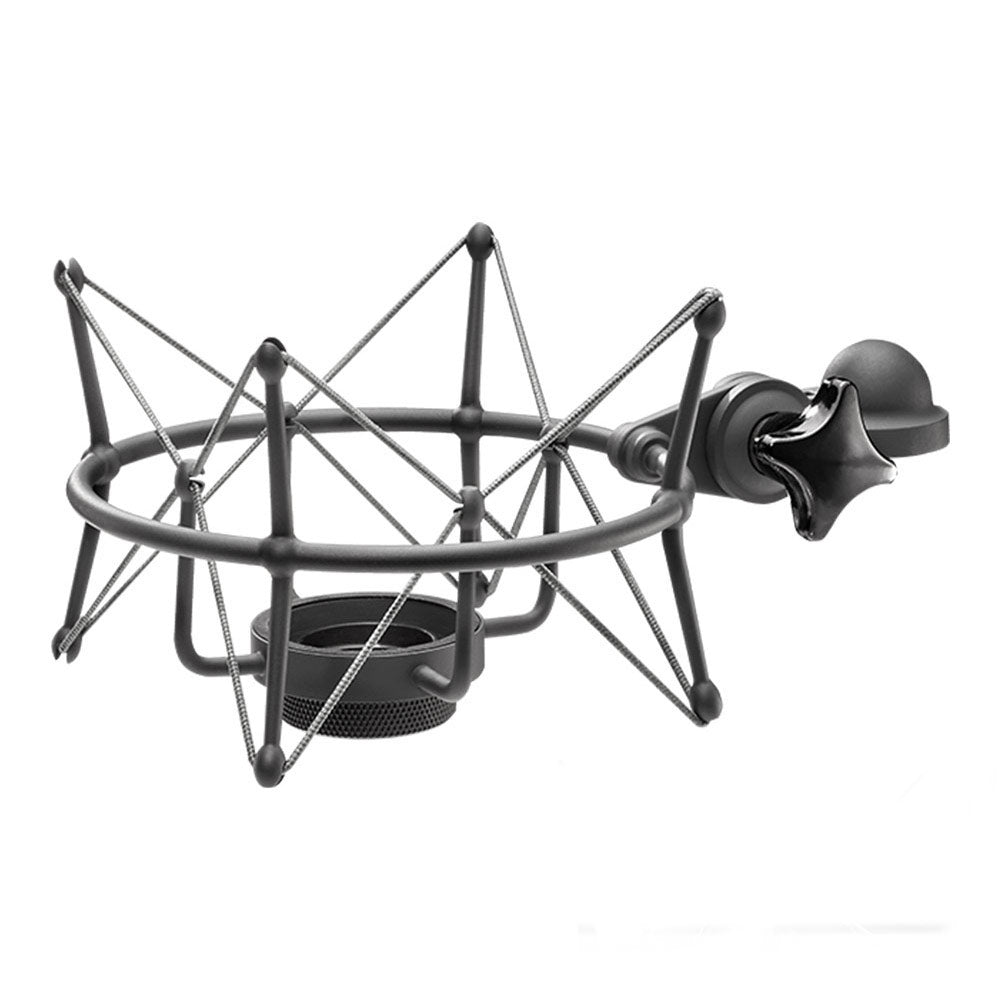

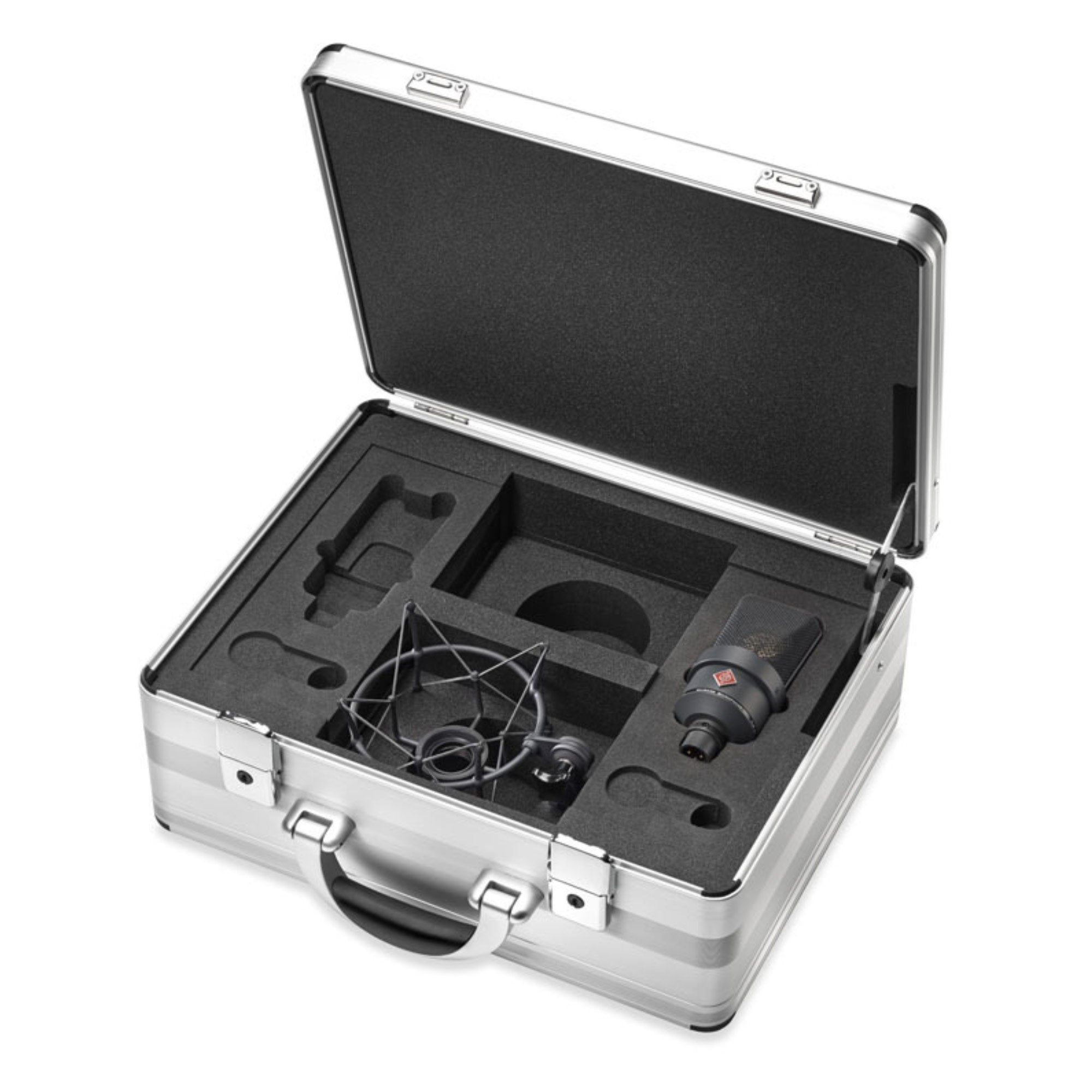

Neumann TLM103 MT SET Cardioid Condenser Microphone with Shockmount and Case (Matte Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The TLM 103* is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget. By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.
Features
- Large diaphragm cardioid microphone
- Pressure gradient transducer with with one-diaphragm capsule
- Transformerless circuitry
- Extremely low noise 7 dB-A
- Includes swivel mount
- Straightforward handling for homerecording and professional studios
- High-quality professional equipment for limited budgets
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Cardioid |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1000 ohms |
| Equivalent SPL CCIR 468-3 | 17.5 dB |
| Equivalent SPL DIN/IEC 651 | 7 dB-A |
| S/N ratio CCIR 468-3 | 76.5 dB |
| S/N ratio DIN/IEC 651 | 87 dB |
| Maximum SPL for THD 0.5% | 138 dB |
| Maximum output voltage | 13 dBu |
| Dyn. range of the mic. amplifier DIN/IEC 651 | 131 dB |
| Supply voltage | 48 V ± 4 V |
| Current consumption | 3 mA |
| Matching connector | XLR 3F |
| Weight | approx. 500 g |
| Diameter | 60 mm |
| Length | 132 mm |
The TLM 103* is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget. By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.
Features
- Large diaphragm cardioid microphone
- Pressure gradient transducer with with one-diaphragm capsule
- Transformerless circuitry
- Extremely low noise 7 dB-A
- Includes swivel mount
- Straightforward handling for homerecording and professional studios
- High-quality professional equipment for limited budgets
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Cardioid |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1000 ohms |
| Equivalent SPL CCIR 468-3 | 17.5 dB |
| Equivalent SPL DIN/IEC 651 | 7 dB-A |
| S/N ratio CCIR 468-3 | 76.5 dB |
| S/N ratio DIN/IEC 651 | 87 dB |
| Maximum SPL for THD 0.5% | 138 dB |
| Maximum output voltage | 13 dBu |
| Dyn. range of the mic. amplifier DIN/IEC 651 | 131 dB |
| Supply voltage | 48 V ± 4 V |
| Current consumption | 3 mA |
| Matching connector | XLR 3F |
| Weight | approx. 500 g |
| Diameter | 60 mm |
| Length | 132 mm |
