Neumann TLM103 SET Cardioid Condenser Microphone with Shockmount and Case (Nickel)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:NEUM-TLM103SET

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

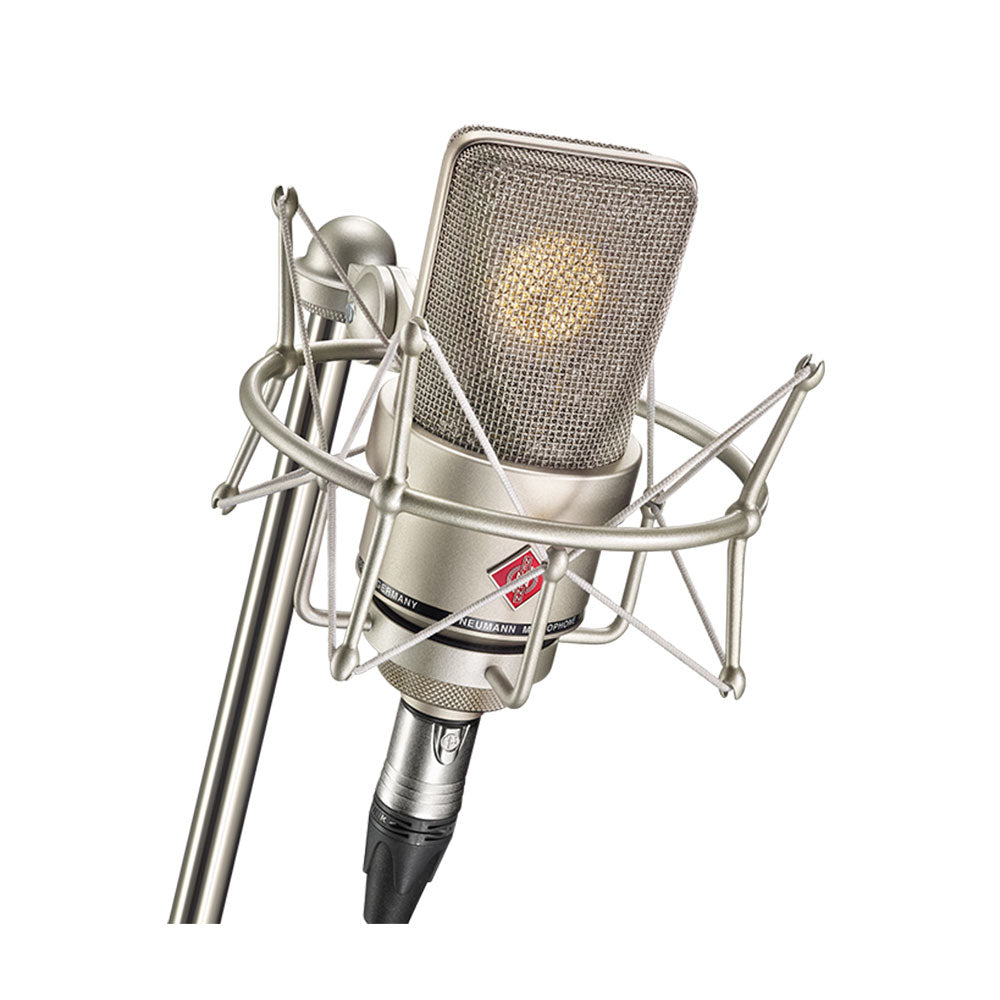

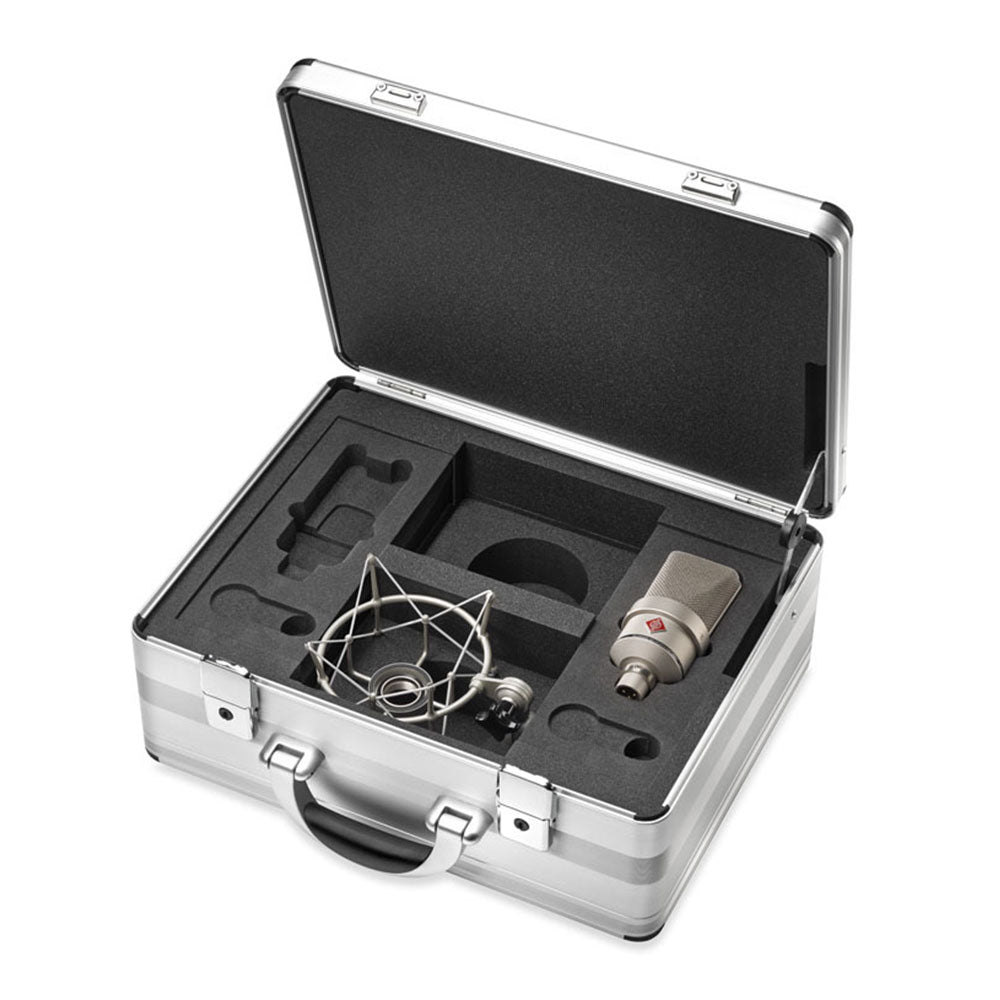

  • This set includes one Neumann TLM 103one EA1shock mount and a hard-shell case.

    The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

    Features

    • Large diaphragm cardioid microphone
    • Pressure gradient transducer with with one-diaphragm capsule
    • Transformerless circuitry
    • Extremely low noise: 7 dB-A
    • Includes swivel mount
    • Straightforward handling for home recording and professional studios
    • High-quality professional equipment for limited budgets
  • Acoustical operating principlePressure gradient transducer
    Directional patternCardioid
    Frequency range20 Hz ... 20 kHz
    Sensitivity at 1 kHz into 1 kohm23 mV/Pa
    Rated impedance50 ohms
    Rated load impedance1000 ohms
    Equivalent SPL CCIR 468-317.5 dB
    Equivalent SPL DIN/IEC 6517 dB-A
    S/N ratio CCIR 468-376.5 dB
    S/N ratio DIN/IEC 65187 dB
    Maximum SPL for THD 0.5%138 dB
    Maximum output voltage13 dBu
    Dyn. range of the mic. amplifier DIN/IEC 651131 dB
    Supply voltage48 V ± 4 V
    Current consumption3 mA
    Matching connectorXLR 3F
    Weightapprox. 500 g
    Diameter60 mm
    Length132 mm
