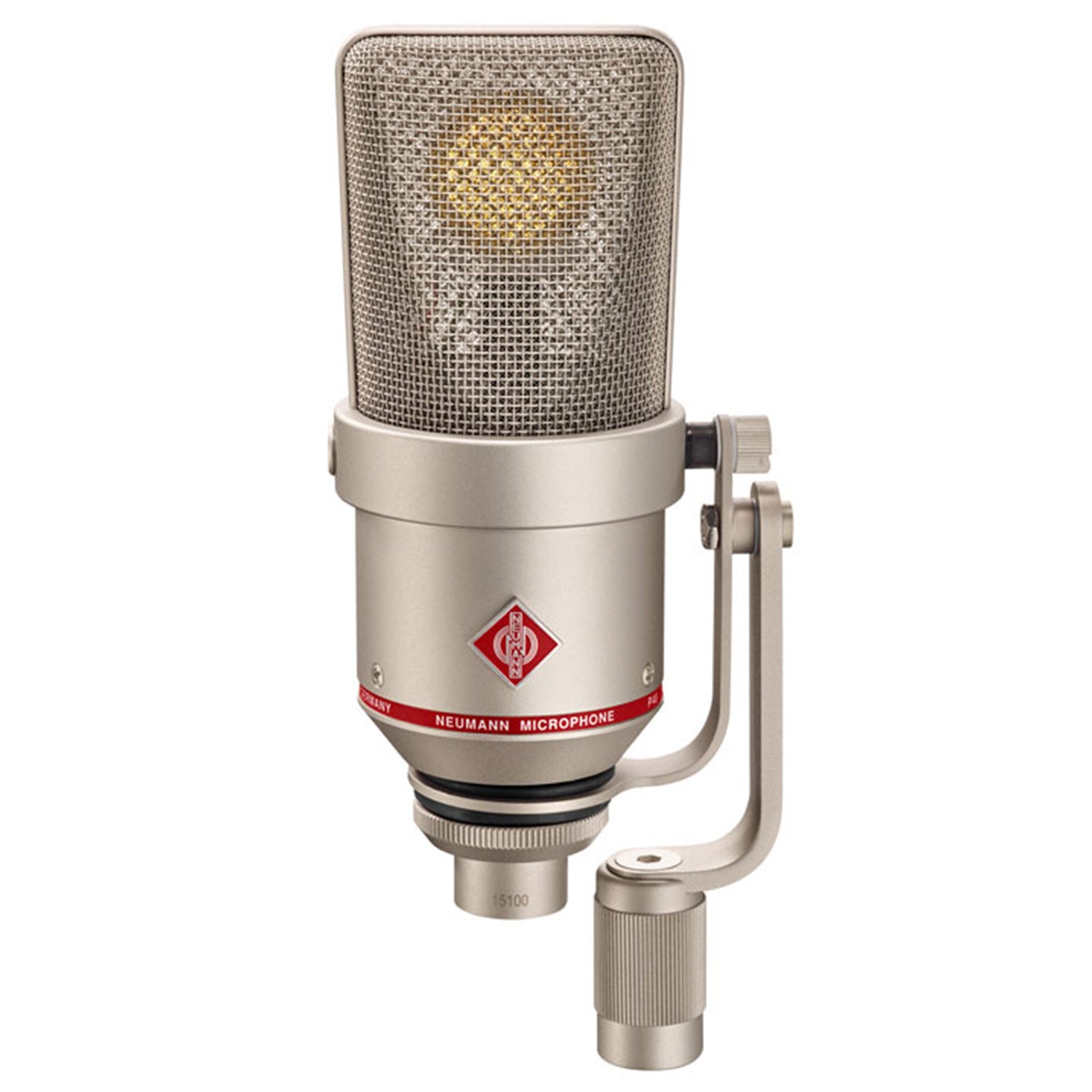

Neumann TLM170R Multi-Pattern Large Diaphragm Studio Condenser Microphone with Remote - Nickel
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The TLM 170 R* was the first microphone to use the successful fet 100 technology. Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range. Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked R, the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.
Features
- Local and remote controlled large diaphragm microphone
- Pressure-gradient transducer with double membrane capsule
- Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
- Patented circuitry for remote and local switching of directional characteristics
- Switchable low frequency roll-off and 10 dB preattenuation
- Tiltable, elastically suspended bracket mount
The TLM 170 R condenser microphone is a large diaphragm microphone with multiple polar patterns. Its sound has a very transparent characteristic, in contrast to some of our other microphones that have a distinct personality. Therefore, this microphone is used for many diverse applications in professional recording studios, in broadcasting, film and television, and for semiprofessional productions. The polar patterns can be selected either at the microphone itself, or controlled remotely through the special N 248 power supply.
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8 |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 8 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR1) | 26 dB |
| Equivalent noise level, A-weighted1) | 14 dB-A |
| Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) | 68 dB |
| Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) | 80 dB |
| Maximum SPL for THD 0.5%2) | 144 dB |
| Maximum SPL for THD 0.5% with preattenuation2) | 154 dB |
| Maximum output voltage | 10 dBu |
| Dynamic range of the microphone amplifier (A-weighted) | 130 dB |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 3 mA |
| Matching connector | XLR3F |
| Weight | 625 g |
| Diameter | 60 mm |
| Length | 152 mm |
The TLM 170 R* was the first microphone to use the successful fet 100 technology. Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range. Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked R, the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.
Features
- Local and remote controlled large diaphragm microphone
- Pressure-gradient transducer with double membrane capsule
- Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
- Patented circuitry for remote and local switching of directional characteristics
- Switchable low frequency roll-off and 10 dB preattenuation
- Tiltable, elastically suspended bracket mount
The TLM 170 R condenser microphone is a large diaphragm microphone with multiple polar patterns. Its sound has a very transparent characteristic, in contrast to some of our other microphones that have a distinct personality. Therefore, this microphone is used for many diverse applications in professional recording studios, in broadcasting, film and television, and for semiprofessional productions. The polar patterns can be selected either at the microphone itself, or controlled remotely through the special N 248 power supply.
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8 |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 8 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR1) | 26 dB |
| Equivalent noise level, A-weighted1) | 14 dB-A |
| Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) | 68 dB |
| Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) | 80 dB |
| Maximum SPL for THD 0.5%2) | 144 dB |
| Maximum SPL for THD 0.5% with preattenuation2) | 154 dB |
| Maximum output voltage | 10 dBu |
| Dynamic range of the microphone amplifier (A-weighted) | 130 dB |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 3 mA |
| Matching connector | XLR3F |
| Weight | 625 g |
| Diameter | 60 mm |
| Length | 152 mm |
