Description

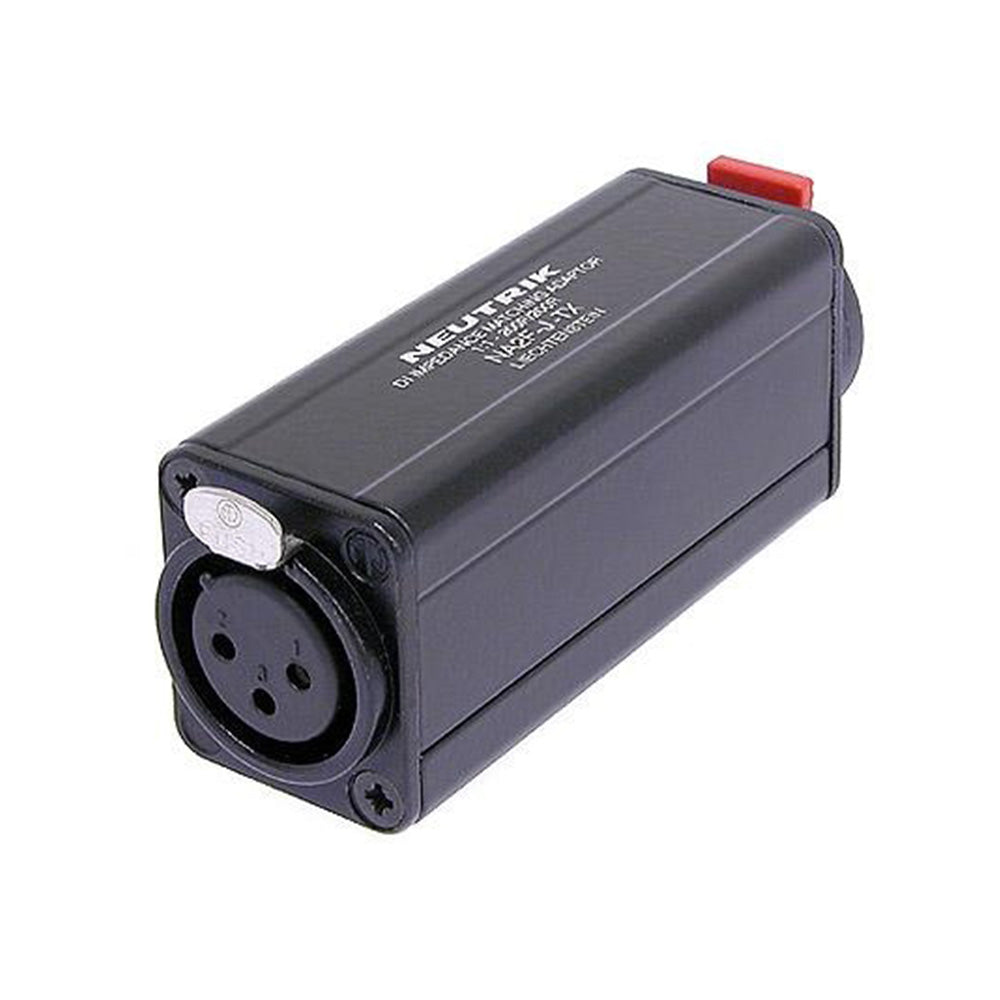

Miniature transformer balancing adapter, 3 pole XLR female - 1/4" jack, ground lifted.
Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required.
Features:
- The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
- Rugged aluminium extrusion housing for best reliability
Audio transformer | 1:1 |
Impedance ratio | 200:200 |
Source/load impedance in Ohm | 200/2k, (600/10k) |
Max. Input level (@ 50 Hz, 1% THD) | -3 dBu |
Miniature transformer balancing adapter, 3 pole XLR female - 1/4" jack, ground lifted.
Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required.
Features:
- The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
- Rugged aluminium extrusion housing for best reliability
Audio transformer | 1:1 |
Impedance ratio | 200:200 |
Source/load impedance in Ohm | 200/2k, (600/10k) |
Max. Input level (@ 50 Hz, 1% THD) | -3 dBu |
