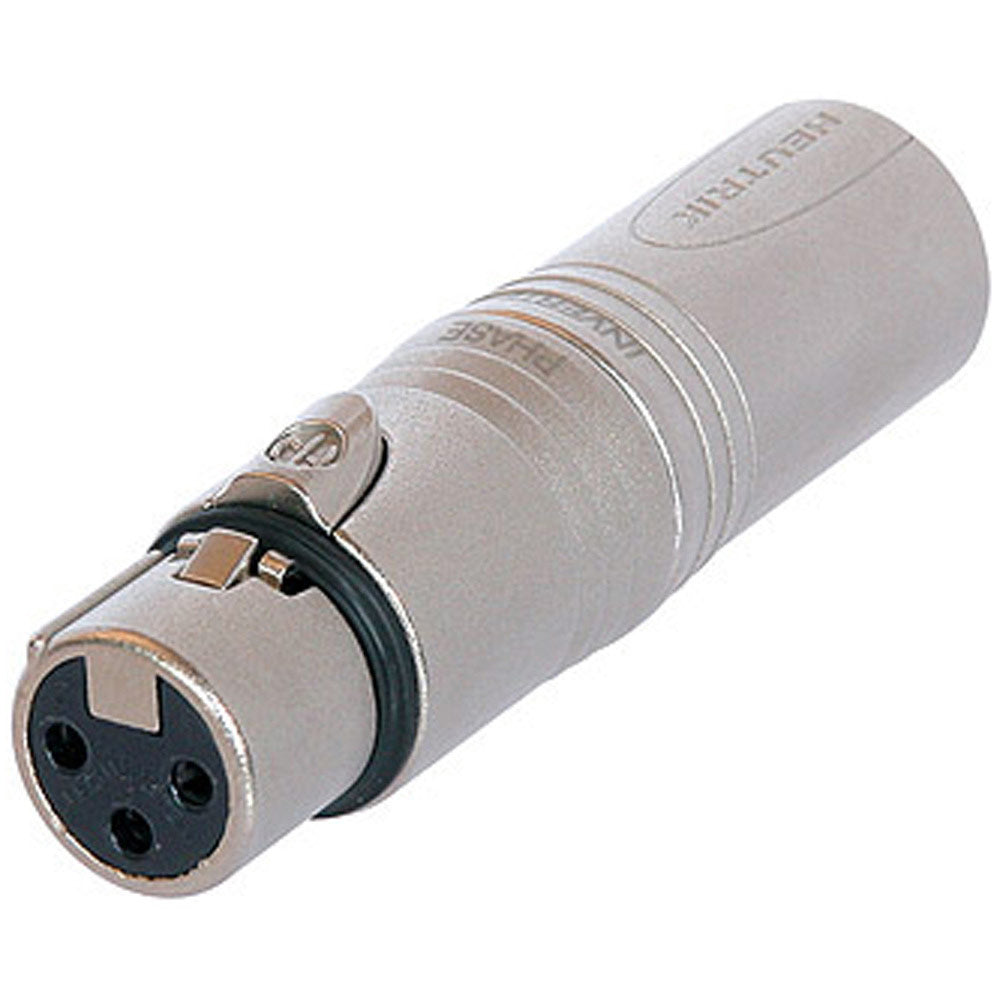

Neutrik NA3F5M XLR3F to XLR5M Adaptor



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:NEUT-NA3F5M

Shipping Charges Apply
  • 3 pole XLR female - 5 pole XLR male for lighting (DMX) applications

    Features

    • Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
    • Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
    • Professional look and compact space saving design, based on the XX Series
    • Rugged diecast shell for best reliability
  • Product
    TitleNA3F5M
    Connection Type Adapter
    Electrical
    Contact resistance= 3 mO (inner)
    Dielectric strength1,5 kVdc
    Insulation resistance> 2 GO
    Rated current per contact7,5 A
    Mechanical
    Insertion force < 20 N
    Withdrawal force< 20 N
    Lifetime> 1000 mating cycles
    Locking deviceLatch lock
    Material
    Contact plating2 µm Ag
    ContactsBronze (CuSn6) (female)
    InsertPolyamide (PA 6.6 30 % GR)
    ShellZinc diecast (ZnAl4Cu1)
    Shell platingNickel
    Environmental
    Temperature range-30 °C to +80 °C
