Description

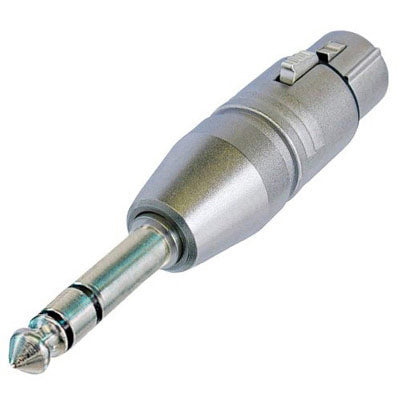

3 pole XLR female - Stereo 1/4 plug (Tip, Ring, Sleeve contact).
Features- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability.
| Product | |
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag/2 µm Ni |
| Contacts | Bronze (CuSn6) (XLR) |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
3 pole XLR female - Stereo 1/4 plug (Tip, Ring, Sleeve contact).
Features- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability.
| Product | |
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag/2 µm Ni |
| Contacts | Bronze (CuSn6) (XLR) |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
