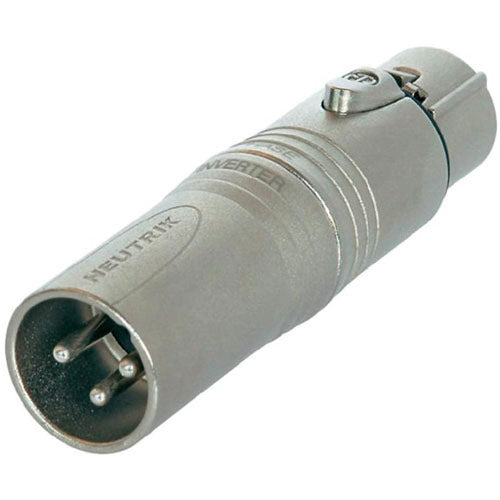

Neutrik NA3M5F 3-Pin XLR Male to 5-Pin XLR Female Adapter


  • Dale #:

    NEUT-NA3M5F
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

3 pole XLR male - 5 pole XLR female for lighting (DMX) applicationsFeatures Compact XLR 3 to 5 pole adapter for lighting (DMX) applications Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard Professional look and compact space saving design, based on the XX Series Ru... Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

3 pole XLR male - 5 pole XLR female for lighting (DMX) applications

Features

  • Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
  • Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability

More +

Product Specs

Connection TypeAdapter
Electrical
Contact resistance< 3 mΩ (inner)
Dielectric strength1,5 kVdc
Insulation resistance> 2 GΩ
Rated current per contact7,5 A
Mechanical
Insertion force< 20 N
Withdrawal force< 20 N
Lifetime> 1000 mating cycles
Locking deviceLatch lock
Material
Contact plating2 µm Ag
ContactsBrass (CuZn39Pb3)
InsertPolyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingNickel
Environmental
Temperature range-30 °C to +80 °C

More +
