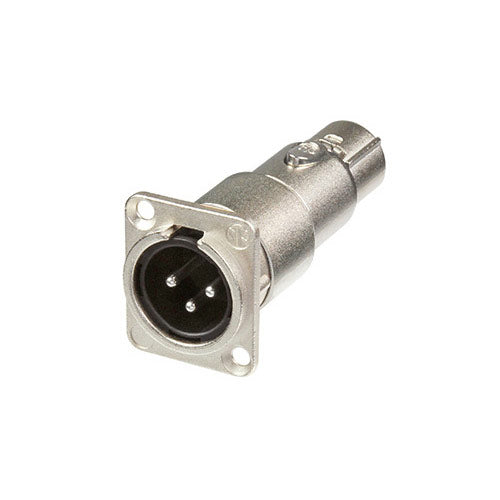

Neutrik NA3MDF XLR Male to XLR Female Feed Through Adapter
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NA3MDF XLR Male to XLR Female Feed Through Adapter
Sale price$10.07
Regular price$11.25
Description
XLR male-female feedthrough adapter for panel mount.
| Capacitance between contacts | 4 pF |
| Contact resistance | 5 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 G (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm_ |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
XLR male-female feedthrough adapter for panel mount.
| Capacitance between contacts | 4 pF |
| Contact resistance | 5 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 G (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm_ |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
