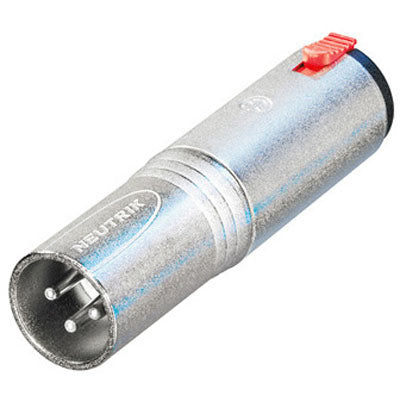

Neutrik NA3MJ 3 Pin Male XLR to 1/4" TRS Stereo Locking Adapter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Neutrik NA3MJ 3 Pin Male XLR to 1/4" TRS Stereo Locking Adapter
Sale price$13.36
Regular price$14.92
Description
3 pole XLR male - stereo 1/4 locking jack (Tip, Ring, Sleeve contact).
Features- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the XX XLR Series Rugged diecast shell for best reliability
| Product | |
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mOhms (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Jack) |
| Insulation resistance | > 2 GOhms |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) (XLR male) |
| Contacts | Bronze (CuBe2) (jack) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
3 pole XLR male - stereo 1/4 locking jack (Tip, Ring, Sleeve contact).
Features- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the XX XLR Series Rugged diecast shell for best reliability
| Product | |
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mOhms (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Jack) |
| Insulation resistance | > 2 GOhms |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) (XLR male) |
| Contacts | Bronze (CuBe2) (jack) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
