Description

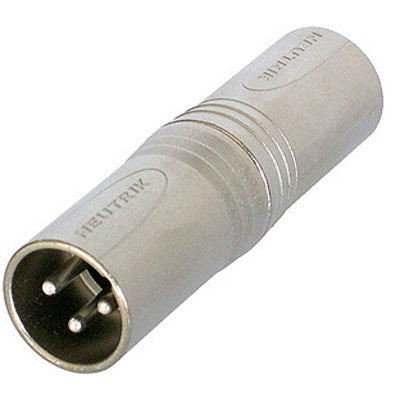

This Neutrik 3 Pin XLR Male to XLR Male Turnaround Adapter has a tough, die-cast exterior housing that protects terminations. It also features latch lock connectors to prevent cables from being accidentally disconnected. Professional look and compact space saving design, based on the XX Series Rugged diecast shell for best reliability
Product | |
Connector Type | Adapter |
Electrical | |
Contact resistance | ≤ 3 mOhms |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 2 GOhms |
Mechanical | |
Locking device | Latch lock |
Material | |
Contact plating | 2 µm Ag |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | gal Cu/Ni |
Environmental | |
Temperature range | -20 ¡C to +65 ¡C |
This Neutrik 3 Pin XLR Male to XLR Male Turnaround Adapter has a tough, die-cast exterior housing that protects terminations. It also features latch lock connectors to prevent cables from being accidentally disconnected. Professional look and compact space saving design, based on the XX Series Rugged diecast shell for best reliability
Product | |
Connector Type | Adapter |
Electrical | |
Contact resistance | ≤ 3 mOhms |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 2 GOhms |
Mechanical | |
Locking device | Latch lock |
Material | |
Contact plating | 2 µm Ag |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | gal Cu/Ni |
Environmental | |
Temperature range | -20 ¡C to +65 ¡C |
