Description

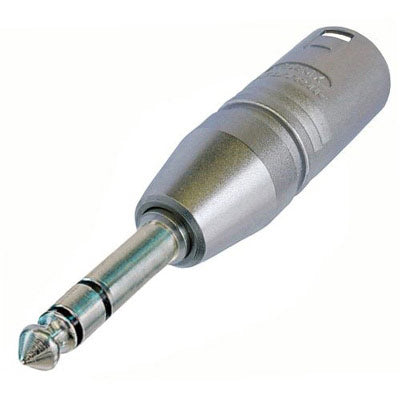

3 pole XLR male - stereo 1/4 plug (Tip, Ring, Sleeve contact)
Features- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability
Product | |
Connector Type | Adapter |
Electrical | |
Contact resistance | ≤ 3 mOhms (XLR) |
Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Plug) |
Insulation resistance | > 2 GOhms |
Mechanical | |
Locking device | Latch lock |
Material | |
Contact plating | 2 µm Ag/2 µm Ni |
Contacts | Brass (CuZn39Pb3) (XLR) |
Contacts | Brass (CuZn39Pb3) (plug) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | gal Cu/Ni |
Environmental | |
Temperature range | -20 ¡C to +65 ¡C |
