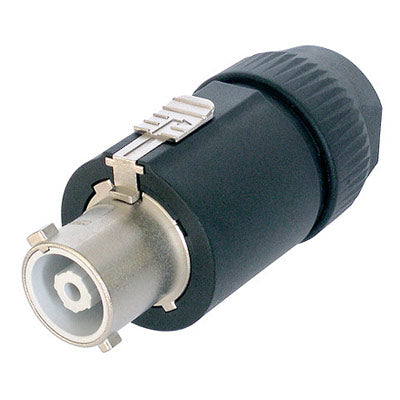

Neutrik NAC3FC-HC Powercon 32 Amp Female High Current Cable Connector with Screw Terminals - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 32 Amp PowerCon is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Termination on both cable and panel types is via screw-type terminals for stranded wires 2.5 to 6.0 sq.mm (AWG 14-10). Cable diameter range 8.0-20.0mm. Panel hole cutout 30.0mm diamater.
Features:- 250 V ac, 32 Amp single-phase (for ambient temperatures up to 35ÎçC)
- Premating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- Cable O.D. Range: 8 - 20 mm
- Wiring with screw-type terminals for wires 2.5 to 6.0 mmÎ_ (AWG 14 - 10)
- Excellent cable handling and protection
- Extremely robust and reliable
- VDE, UL, cUL and JET approved
The Neutrik circular connector program is a range of metal, multi-pole connectors specifically designed for industrial applications. These series provide a variety of male and female cable connectors and receptacles that can be terminated by soldering and crimping or to printed circuit boards. An easy to use and reliable quick-lock system ensures a perfect connection and cannot be released accidentally. The circular connectors offer Neutrik unique chuck type strain relief and reinforced housing for robust dependability. The Neutrik industrial connector range also features a unique power connector for single phase applications up to 32 Amps.
| Product | |
| Connector Type | PowerCon |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3 mohms |
| Dielectric strength | 4 kVdc |
| Insulation resistance | > 10 Gohms (initial) |
| Rated current per contact | 32 A (30A for cUL) |
| Rated voltage | 250 V |
| Mechanical | |
| Cable O.D. | 8 - 20 mm |
| Lifetime | > 1000 mating cycles |
| Wire size | 2.5 - 6 mm_ |
| Wire size | 14 - 10 AWG |
| Wiring | screw terminals |
| Locking device | Quick Lock |
| Material | |
| Bushing | Polyamide (PA 6 15% GR) |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 25 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Approvals | UL,VDE,JET |
| Flammability | UL 94 HB |
| Protection class | IP 20 (mated) |
| Savety requirements | EN/IEC 61984 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 ¡C to +70 ¡C |
The 32 Amp PowerCon is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Termination on both cable and panel types is via screw-type terminals for stranded wires 2.5 to 6.0 sq.mm (AWG 14-10). Cable diameter range 8.0-20.0mm. Panel hole cutout 30.0mm diamater.
Features:- 250 V ac, 32 Amp single-phase (for ambient temperatures up to 35ÎçC)
- Premating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- Cable O.D. Range: 8 - 20 mm
- Wiring with screw-type terminals for wires 2.5 to 6.0 mmÎ_ (AWG 14 - 10)
- Excellent cable handling and protection
- Extremely robust and reliable
- VDE, UL, cUL and JET approved
The Neutrik circular connector program is a range of metal, multi-pole connectors specifically designed for industrial applications. These series provide a variety of male and female cable connectors and receptacles that can be terminated by soldering and crimping or to printed circuit boards. An easy to use and reliable quick-lock system ensures a perfect connection and cannot be released accidentally. The circular connectors offer Neutrik unique chuck type strain relief and reinforced housing for robust dependability. The Neutrik industrial connector range also features a unique power connector for single phase applications up to 32 Amps.
| Product | |
| Connector Type | PowerCon |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3 mohms |
| Dielectric strength | 4 kVdc |
| Insulation resistance | > 10 Gohms (initial) |
| Rated current per contact | 32 A (30A for cUL) |
| Rated voltage | 250 V |
| Mechanical | |
| Cable O.D. | 8 - 20 mm |
| Lifetime | > 1000 mating cycles |
| Wire size | 2.5 - 6 mm_ |
| Wire size | 14 - 10 AWG |
| Wiring | screw terminals |
| Locking device | Quick Lock |
| Material | |
| Bushing | Polyamide (PA 6 15% GR) |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 25 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Approvals | UL,VDE,JET |
| Flammability | UL 94 HB |
| Protection class | IP 20 (mated) |
| Savety requirements | EN/IEC 61984 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 ¡C to +70 ¡C |
