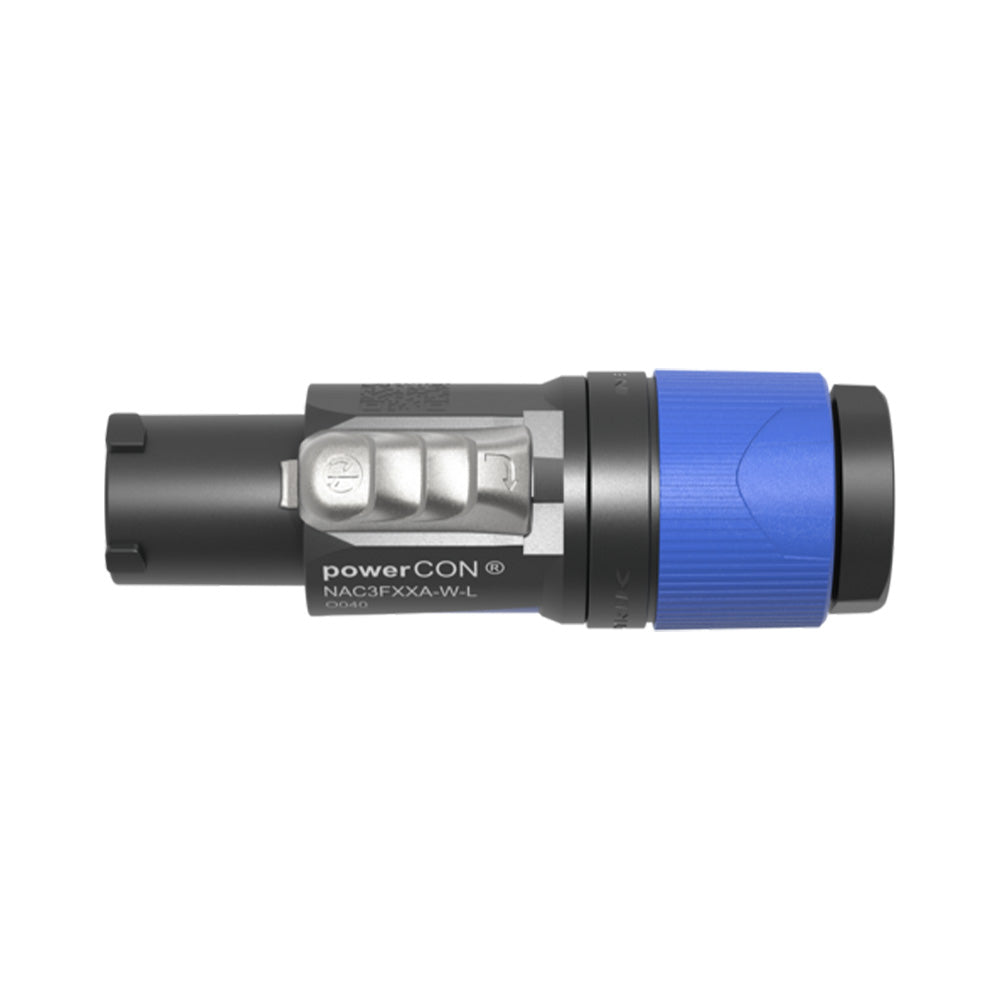

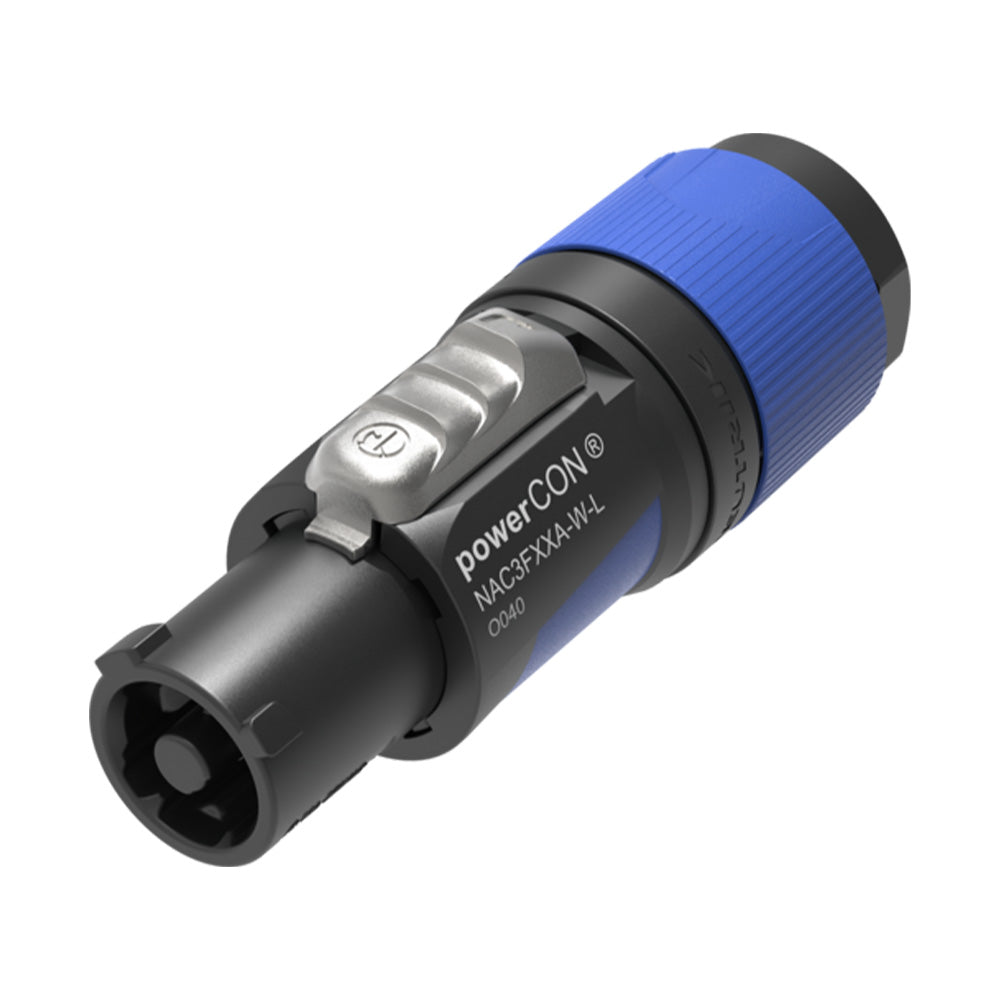

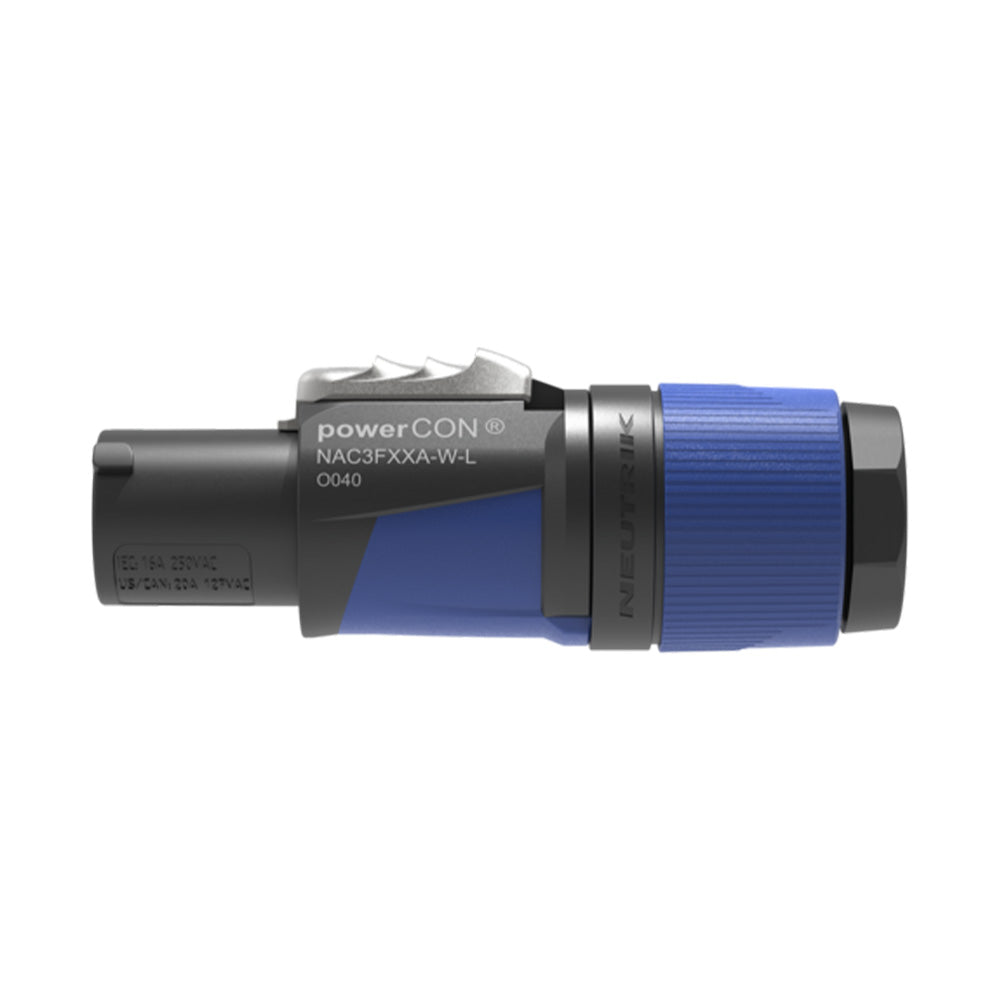

Neutrik NAC3FXXA-W-L - PowerCON Locking AC Mains Input Cable Connector (Blue)
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description
Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Features:
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Ergonomic design with slip-proof two-component molded housing
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
| Title | NAC3FXXA-W-L |
| Connector series | powerCON blue/grey |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10 G½ (initially) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC, CBC |
| Mechanical | |
| Cable O.D. | 10 Ð 16 mm |
| Lifetime | Typically 5'000 mating cycles |
| Wiresize (mm_) | 1.5 Ð 2.5 mm_ |
| Wiresize (AWG) | 14 Ð 12 AWG |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 ¡C to +80 ¡C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
