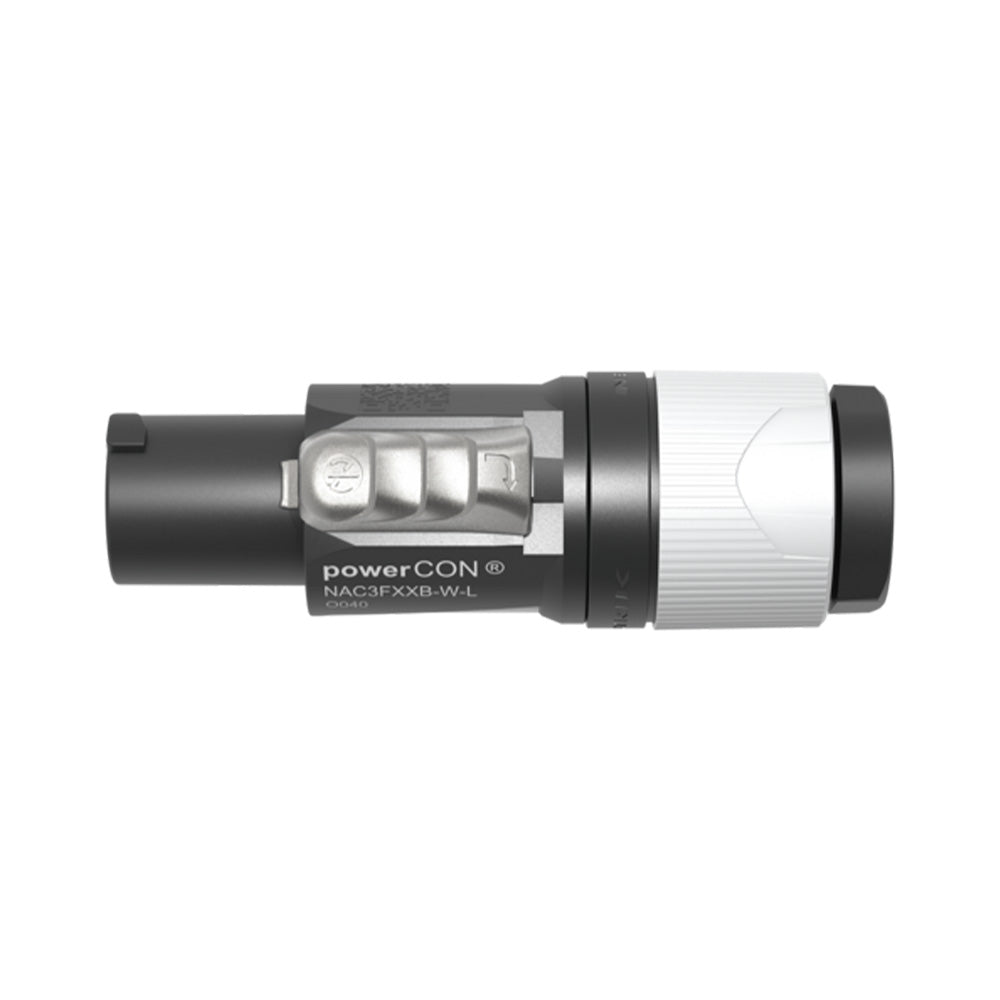

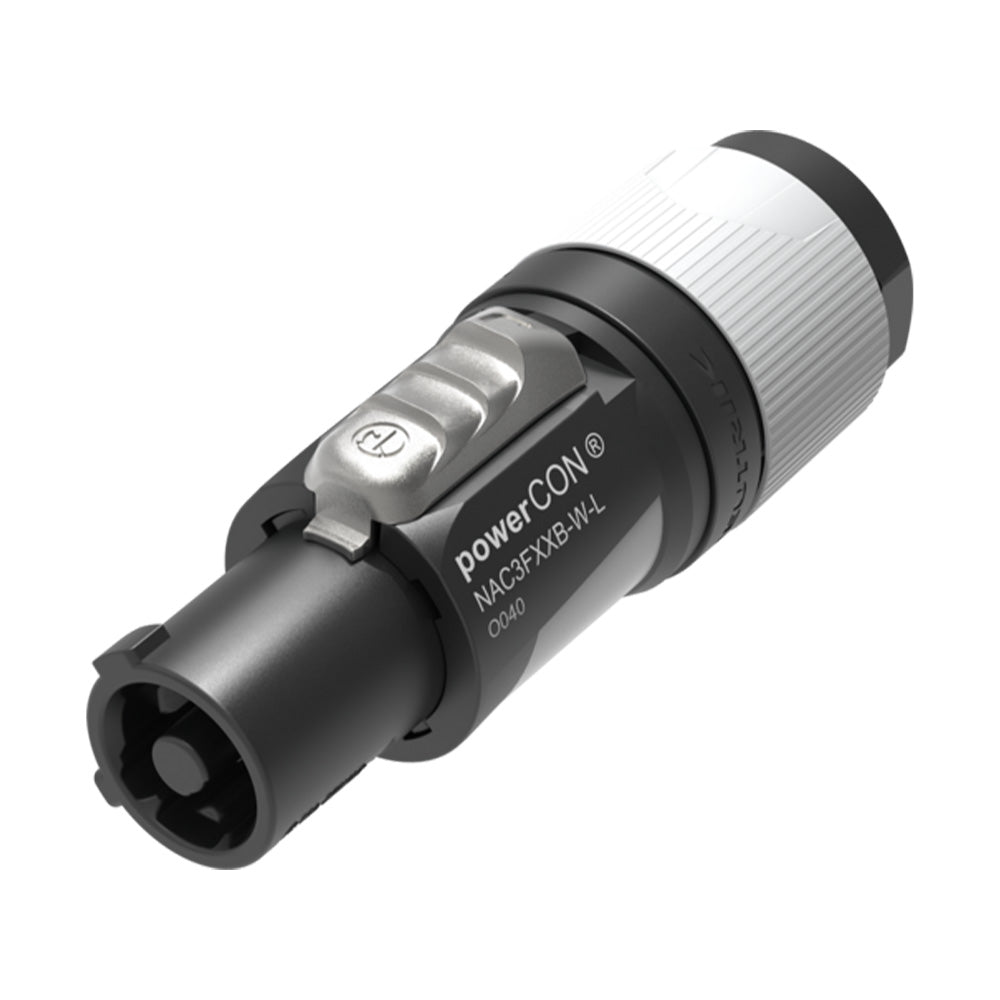

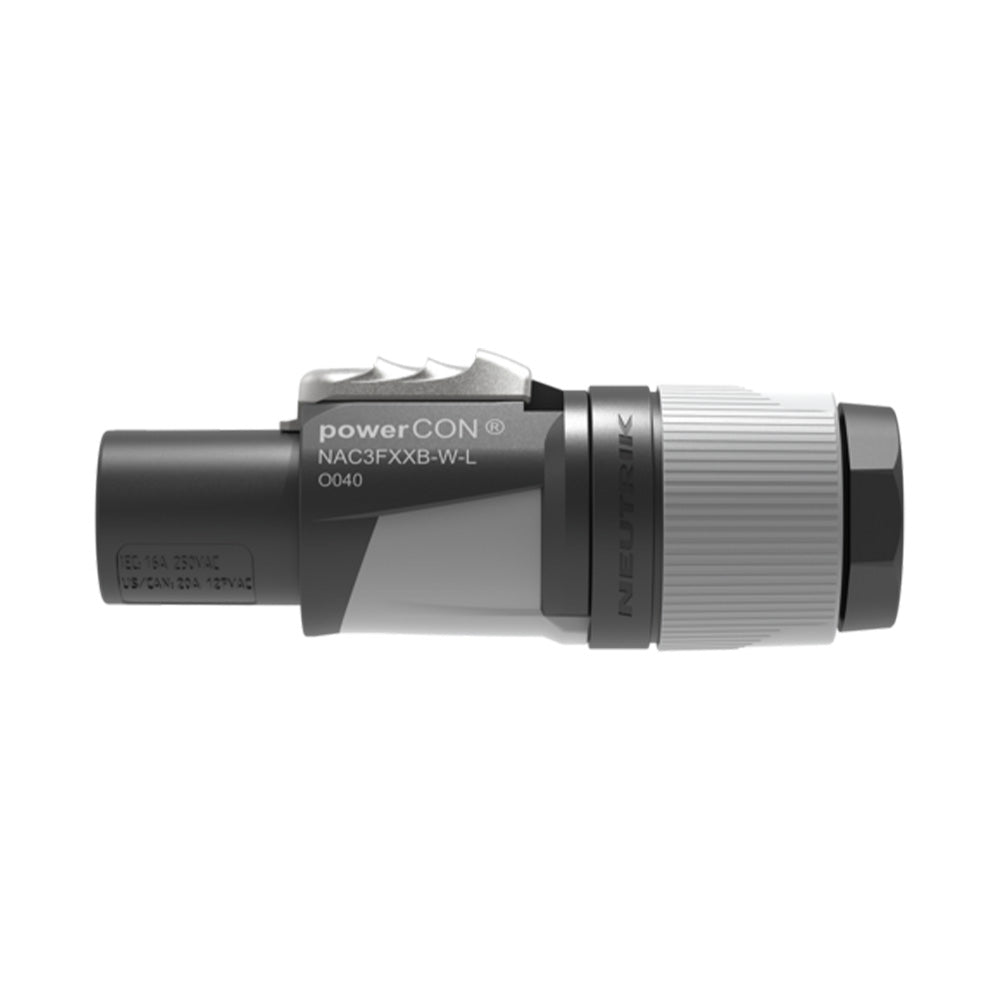

Neutrik NAC3FXXB-W-L - PowerCON Locking AC Mains Output Cable Connector (Gray)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 10 - 16 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Features:
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Ergonomic design with slip-proof two-component molded housing
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
| Title | NAC3FXXB-W-L |
| Connector series | powerCON blue/grey |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10 G½ (initially) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC, CBC |
| Mechanical | |
| Cable O.D. | 10 Ð 16mm |
| Lifetime | Typically 5'000 mating cycles |
| Wiresize (mm_) | 1.5 Ð 2.5 mm_ |
| Wiresize (AWG) | 14 Ð 12 AWG |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 ¡C to + 80 ¡C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
