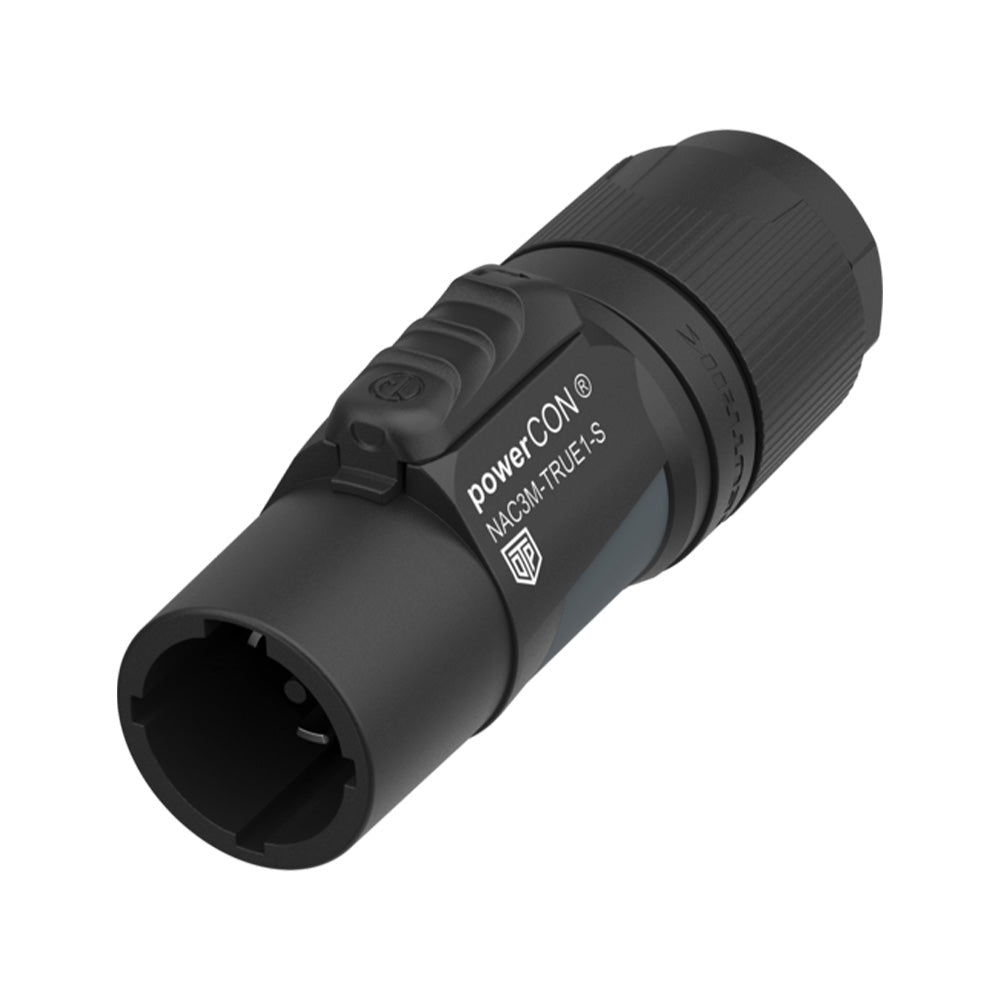

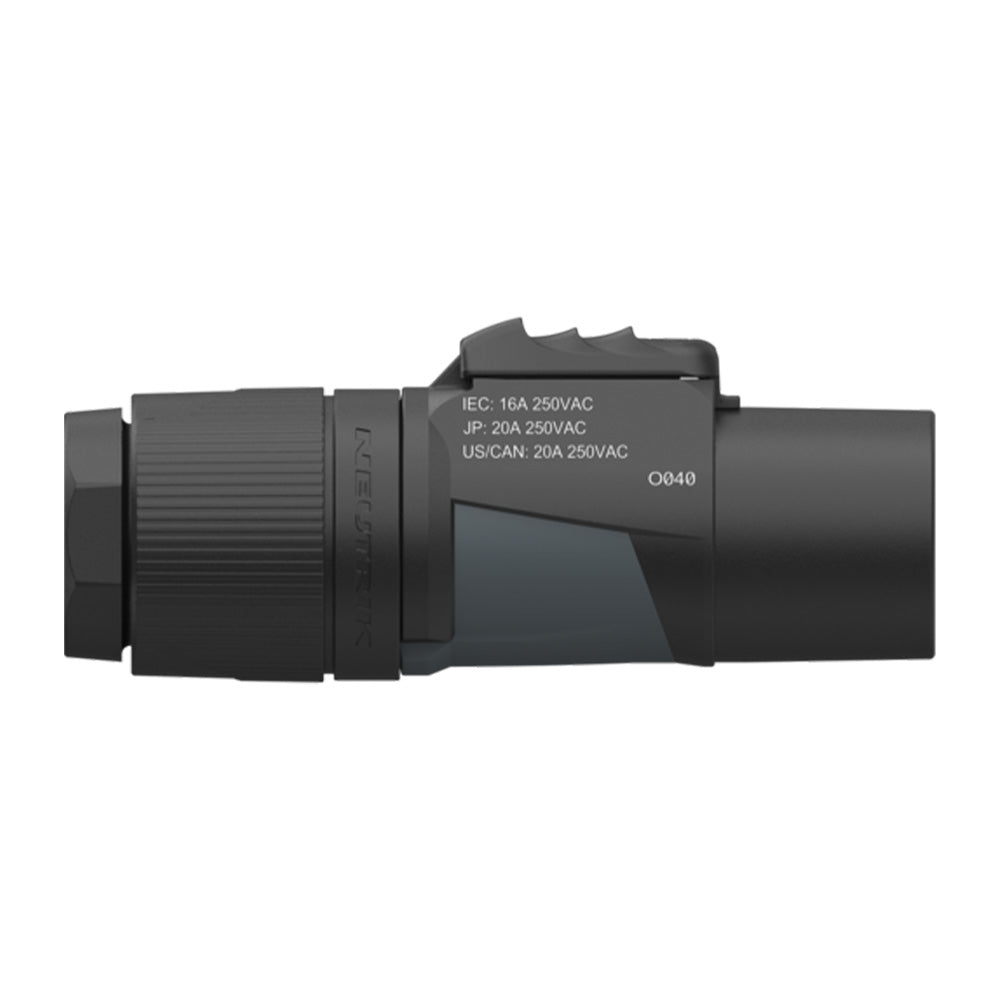

Neutrik NAC3M-TRUE1-S - powerCON TRUE1 Male Cable Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
| Product | |
| Title | NAC3M-TRUE1-S |
| Product family | powerCON¨ TRUE1 |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | >0.1G½ (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | 16 A / 250 V AC according to EN IEC 60320-1 |
| Rating America | 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 |
| Mechanical | |
| Cable O.D. | 6 - 12 mm (0.23 Ð 0.47 inches) |
| Lifetime | > 5000 mating cycles |
| Wiresize (mm_) | 1.0 Ð 2.5mm_ |
| Wiresize (AWG) | 14 AWG |
| Material | |
| Contact plating | 2 _m Ag |
| Locking element | Polyamide (PA 66) |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 66) |
| Shell | Polyamide (PA 66) |
| Strain relief | Polyketon |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 65 / 67 (mated or with closed caps) |
| UV resistance | F1 rated material withstands UV exposure |
| Temperature range | -30¡C to +80¡C according to IEC 61984 -5¡C to +40¡C according to IEC 60320-1 |
