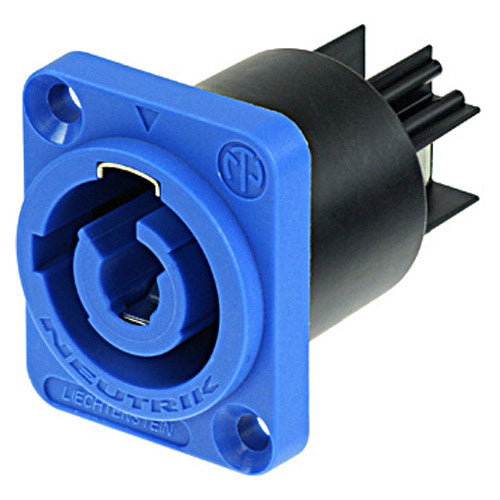

Neutrik NAC3MPA-1 powerCON Connector - Power In (Blue)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Air tight chassis connector, A-type for power-in, flat tab terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features:
- Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
- High current capacity, rated at 20A / 250V ac
- Fast and easy locking system
- Extremely robust and reliable
- Excellent cable retention
- UL, C-UL recognized components
- VDE and SEV approved
| Product | |
| Connector Type | PowerCon |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc |
| Insulation resistance | 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 20 A |
| Rated voltage | 250 V |
| Mechanical | |
| Lifetime | 1000 mating cycles |
| Wiring | flat tabs for 3/16" (FASTON¨ 4.8 x 0.5 mm) or soldering |
| RW / Straight | no |
| Locking device | Quick Lock |
| Mounting direction | front |
| Chassis shape | D |
| Coding | A-type for power inlet (color coding blue) |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuNiSi0.2) |
| Locking element | Steel Ck67 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Environmental | |
| Approvals | UL,VDE,Electroswiss |
| Flammability | UL 94 V-0 |
| Protection class | IP 20 (mated) |
| Savety requirements | EN/IEC 61984 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
