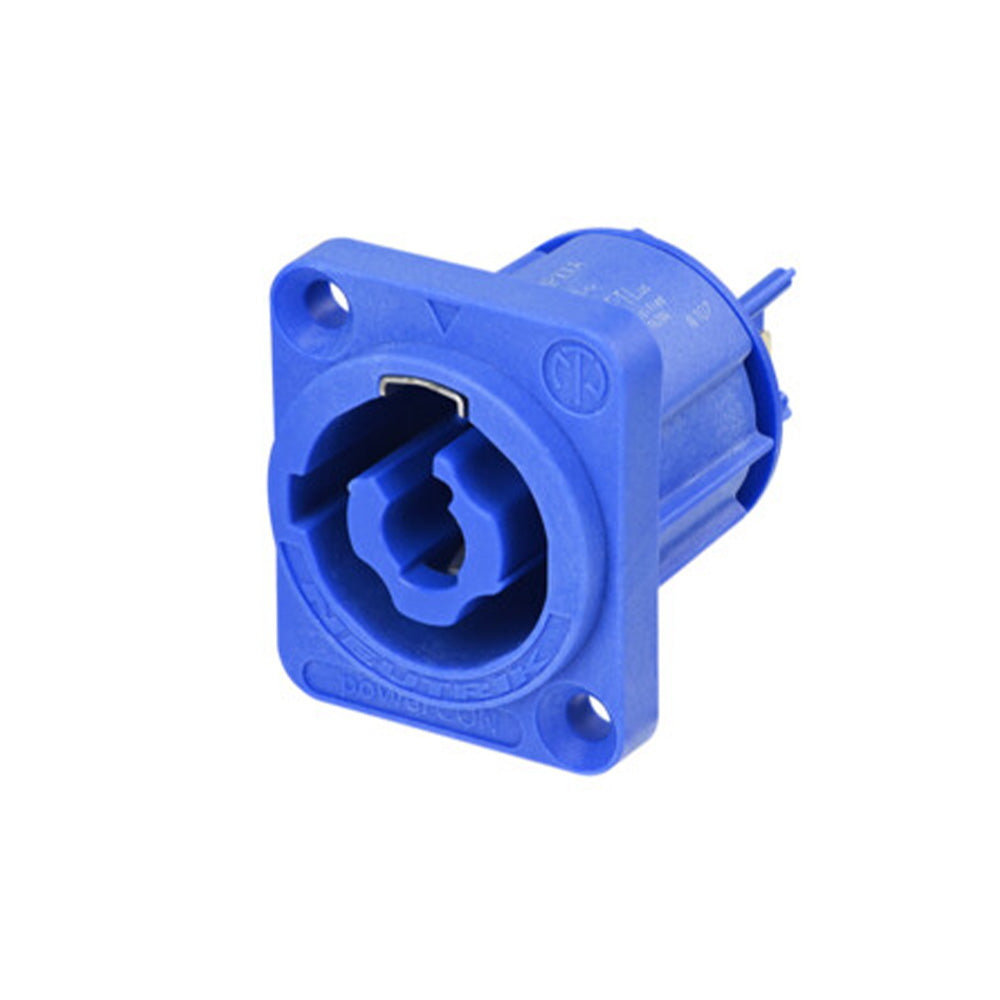

Neutrik NAC3MPXXA - powerCON XX D Series Receptacle (Blue with Tab Terminals)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.
Appliance inlet connector, 3/16" flat tab terminals, blue
The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- Lockable single phase connector
- Certified according to IEC 60320-1 and UL 60320-1
- 3 contacts for line, neutral and premating safety ground
- Certified according to UL-1977, and CAN/CSA-C22.2 No. 182.3
- Drop-in replacement for NAC3MPA-1; mates to NAC3FCA and NAC3FCA-1 cable connectors
- Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Extremely robust and reliable
- IEC 62368-1 compliant
- UL94 V-0 materials
| Title | NAC3MPXXA |
| Gender | male |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 10 G½ (initial) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC EN 61984: 20 A 250 V AC |
| Rating USA | UL 60320-1:20 A 127 V AC UL 1977: 20 A 250 V AC |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | 2,5 mm_ |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Copper Alloy |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 20 |
| Temperature range | -30 ¡C to +80 ¡C |
