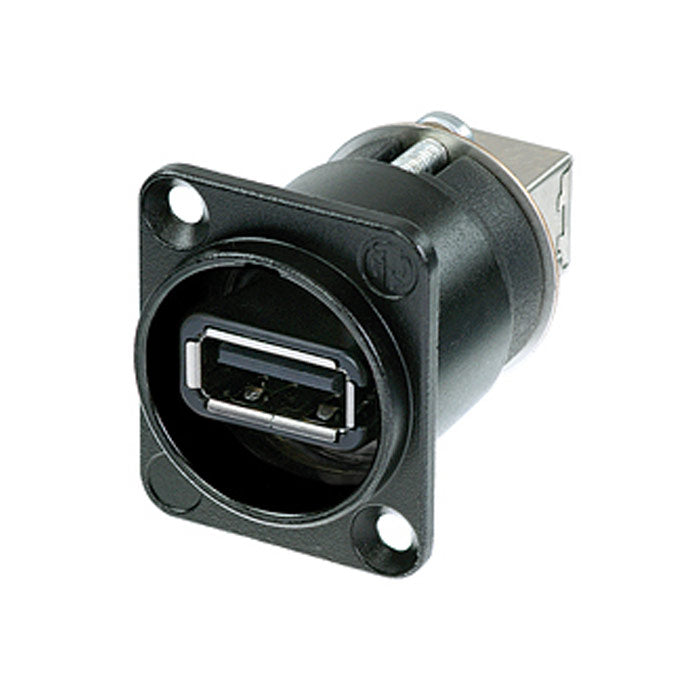

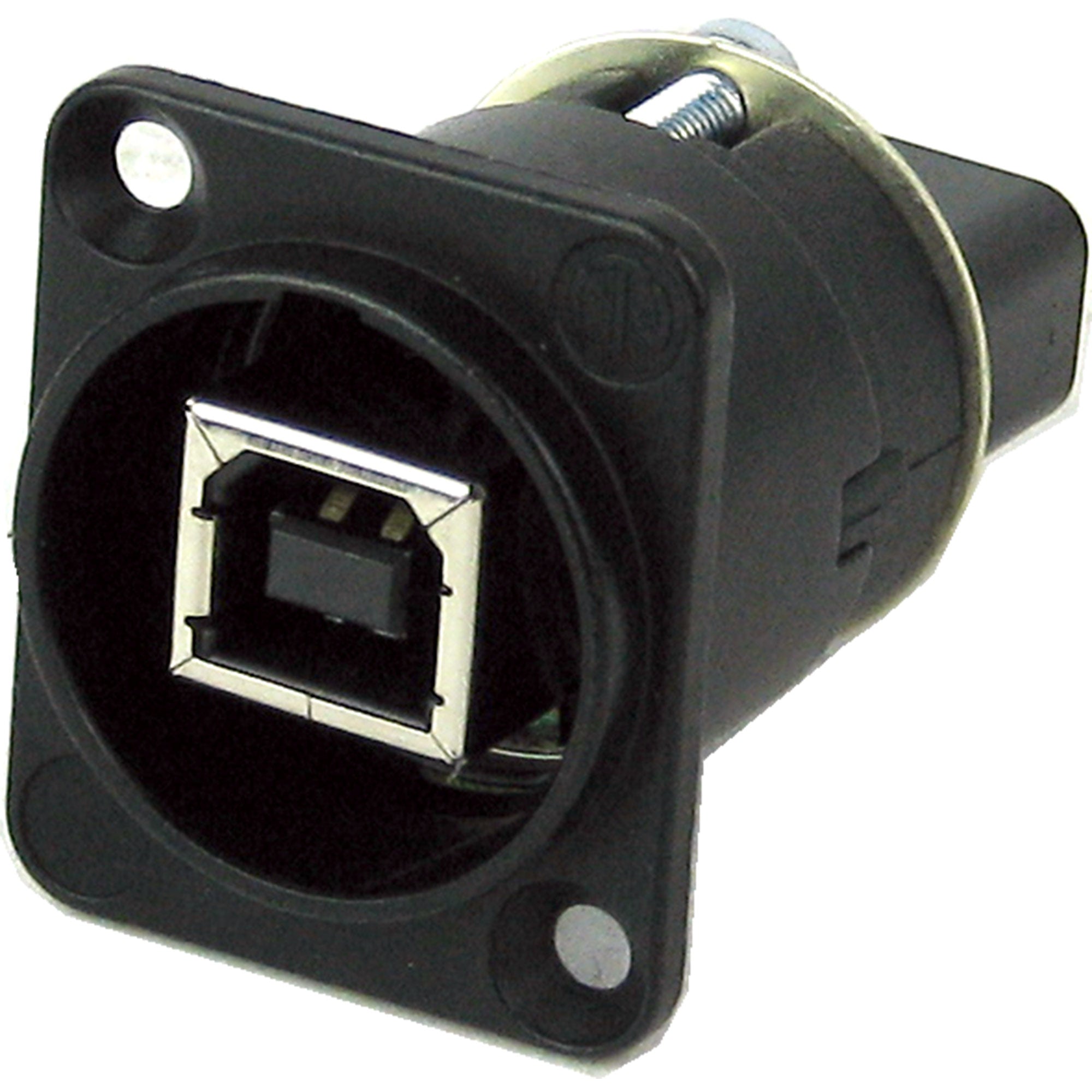

Neutrik NAUSB-W-B Reversible USB A to B Feedthrough Receptacle - Black


  • Dale #:

    NEUT-NAUSBWB
  • Availability:

    Usually ships in 1 - 2 Days
  • This item usually ships within 1-2 days after order placement either from our fulfillment center or directly from the manufacturer.

Description

Reversible USB genderchanger (type A and B), black D-housing. Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, solves this problem.... Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Reversible USB genderchanger (type A and B), black D-housing. Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, solves this problem. Panel-mounting recessed USB connectors, housed in a metal D-series size shell.

The front of the connector insert is flush with the housing, to minimise risk of damage. The insert is an A-B adapter type, with A-type female on the front and B-type female at the rear, however this can be reversed if required. There is an optional screen to chassis grounding. It is dust and water resistant to IP65 when mated with Neutrik USB cables NKUSB-* (new product, to be introduced mid 2010). Available with nickel (NAUSB-W) or black plated (NAUSB-W-B) shells.Features:
  • Ideal for audio networking and integration of computerbased equipment into audio systems
  • Dust and water resistant acc. to IP65 safety standard in combination with NKUSB-*
  • Optional screen to chassis grounding
  • USB 2.0 gender changer type A-B (B-A)
  • Reversible insert offering type A or B on front or rear end
  • Universally accepted standard D-shape housing
  • Removable screen to chassis grounding.

More +

Product Specs

Product
Connector TypeAdapter
Genderfemale
Electrical
Standard complianceUSB 2.0
Mechanical
Mounting directionfront
Chassis shapeD
Material
Contact platingAu
ContactsBrass (CuZn39Pb3)
InsertPBTP 15 % GR
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Environmental
FlammabilityUL 94 V-0
Standard complianceUSB 2.0 specifications
Temperature range-25 °C to +85 °C

More +
