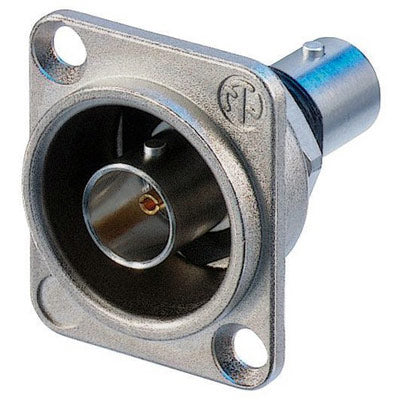

Neutrik NBB75DFI Receptacle - BNC - D Style - Feedthrough - Isolated - Nickel
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The bulkhead connector offers a true 75 ohms design for serial and digital (HD) signals . The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Isolated bulkhead jack, feedthroughin nickel D-shape housing
Features
- Gold plated center contact
- True 75 ohms design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Recessed bulkhead jack
- Color coding possible
| Connector Type | BNC 75 Ohm |
| Gender | female |
| Electrical | |
| Signal Type | HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV |
| Contact resistance | <=3 mohms(inner) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 ohms |
| Insulation resistance | > 5 Gohms |
| Rated voltage | 500 V |
| VSWR | <=1.03 /> 37 dB up to 1 GHz |
| <=1.05 /> 32 dB up to 2 GHz | |
| <=1.08 /> 28 dB up to 3 GHz | |
| Mechanical | |
| Cable retention force | > 50 N |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonet |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contacts | Brass (CuZn39Pb3) (Ground contact) |
| Contacts | Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) |
| Insert | Teflon PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell | Polyacetal Polyacetal (POM) (Insulation Sheell) |
| Shell plating | Optalloy¨ |
| D-Shape housing | Zinc diecast (ZnAl4Cu1) gal Ni plating |
| Environmental | |
| Standard compliance | IEC 6016908, MIL 348A |
The bulkhead connector offers a true 75 ohms design for serial and digital (HD) signals . The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Isolated bulkhead jack, feedthroughin nickel D-shape housing
Features
- Gold plated center contact
- True 75 ohms design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Recessed bulkhead jack
- Color coding possible
| Connector Type | BNC 75 Ohm |
| Gender | female |
| Electrical | |
| Signal Type | HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV |
| Contact resistance | <=3 mohms(inner) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 ohms |
| Insulation resistance | > 5 Gohms |
| Rated voltage | 500 V |
| VSWR | <=1.03 /> 37 dB up to 1 GHz |
| <=1.05 /> 32 dB up to 2 GHz | |
| <=1.08 /> 28 dB up to 3 GHz | |
| Mechanical | |
| Cable retention force | > 50 N |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonet |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contacts | Brass (CuZn39Pb3) (Ground contact) |
| Contacts | Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) |
| Insert | Teflon PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell | Polyacetal Polyacetal (POM) (Insulation Sheell) |
| Shell plating | Optalloy¨ |
| D-Shape housing | Zinc diecast (ZnAl4Cu1) gal Ni plating |
| Environmental | |
| Standard compliance | IEC 6016908, MIL 348A |
