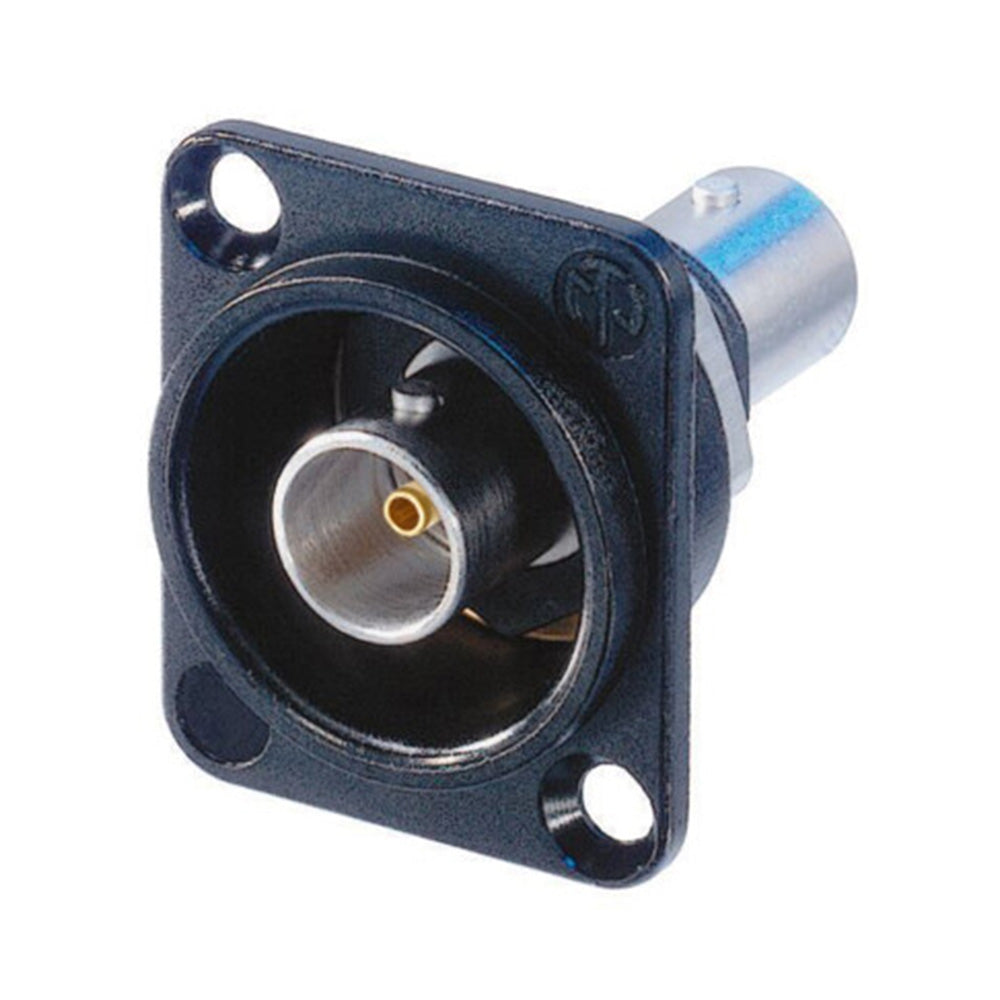

Neutrik NBB75DFIB-P - Isolated D-Size 75-Ohm BNC Feed-Thru Receptace (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
solated BNC chassis connector, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy)
Neutrik's BNC chassis connectors offer a true 75 ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use in a D-shape housing (audio industry standard).
Features:
- Gold plated cage type center contact
- True 75 ohm design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
- Color coding possible
| Title | NBB75DFIB-P |
| Connection Type | BNC 75 ½ |
| Gender | female |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ² 3 m½ (inner) |
| Contact resistance | ² 2 m½ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 ½ |
| Insulation resistance | > 5 G½ |
| Rated voltage | <50 V |
| VSWR | ²1.03/>37 dB up to 1 GHz ²1.05/>32 dB up to 2 GHz ²1.08/>28 dB up to 3 Ghz |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonett |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Contacts | Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Polyacetal (POM) (Insulation Sheell) |
| Shell plating | Optalloy¨ |
| D-Shape housing | Zinc diecast (ZnAl4Cu1) gal black chrome plating |
| Temperature range | -30 ¡C to +85 ¡C |
