Neutrik NBB75DFIX D Series UHD BNC Feed-Thru Connector (Nickel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

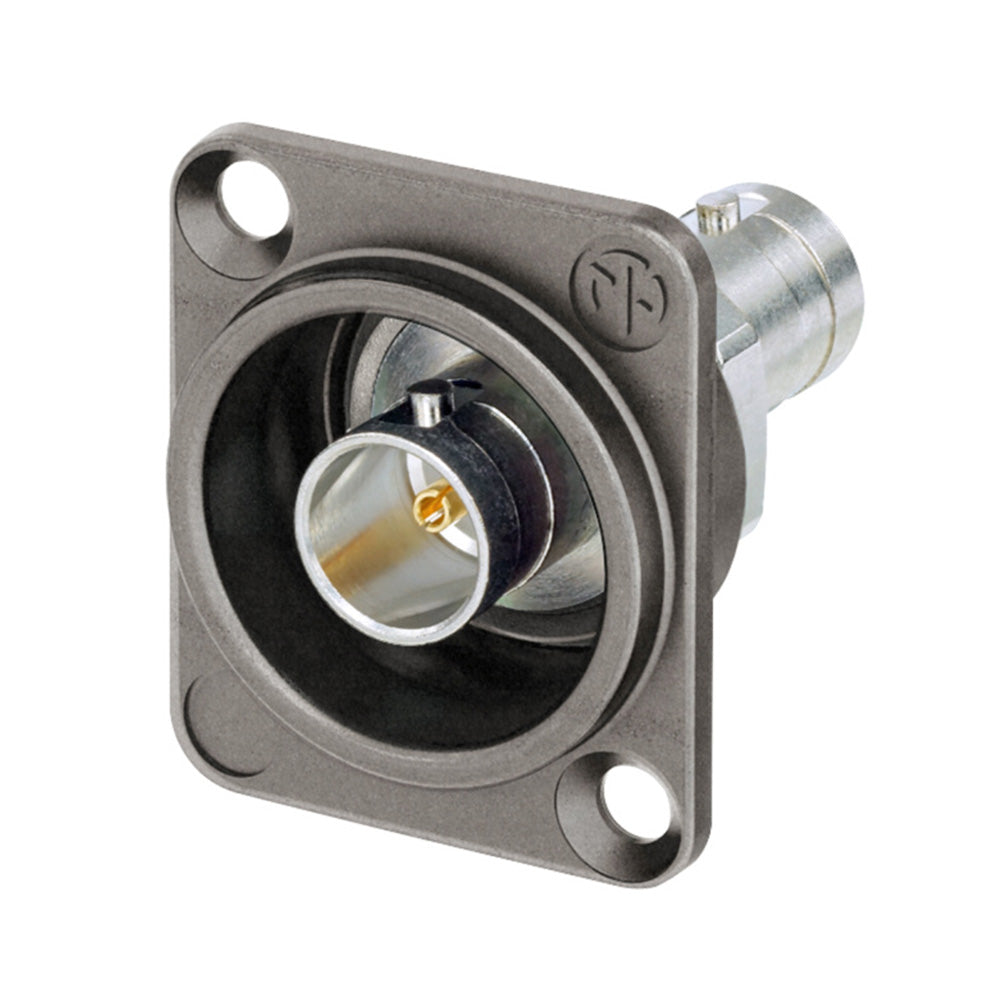

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing. Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.
Features:
- Optimized gold plated cage type center contact for UHD signals as 4K or 8K
- Swiss antraloy plating
- Grounded panel mount
- Standard D-shape housing provides flush mounting and protection from damage
- Color coding possible
- Fully compatible with conventional BNC cable connectors
Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
| Connection Type | BNC 75 ½ |
| Gender | female |
| Contact resistance | ² 3 m½ (inner) |
| Contact resistance | ² 2 m½ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 ½ |
| Insulation resistance | > 5 G½ |
| Rated voltage | < 50 V |
| VSWR | ²1.06 />30 dB up to 6 GHz ²1.13 />24 dB up to 12 GHz ²1.22 />20 dB up to 18 Ghz |
| Signal type | UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Insert | PTFE |
| Shell | Polyacetal (POM) (insulation shell) |
| Shell plating | Antraloy |
| D-shape housing | Zinc diecast (ZnAl4Cu1) |
| Temperature range | -30 ¡C to +85 ¡C |
Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing. Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.
Features:
- Optimized gold plated cage type center contact for UHD signals as 4K or 8K
- Swiss antraloy plating
- Grounded panel mount
- Standard D-shape housing provides flush mounting and protection from damage
- Color coding possible
- Fully compatible with conventional BNC cable connectors
Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
| Connection Type | BNC 75 ½ |
| Gender | female |
| Contact resistance | ² 3 m½ (inner) |
| Contact resistance | ² 2 m½ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 ½ |
| Insulation resistance | > 5 G½ |
| Rated voltage | < 50 V |
| VSWR | ²1.06 />30 dB up to 6 GHz ²1.13 />24 dB up to 12 GHz ²1.22 />20 dB up to 18 Ghz |
| Signal type | UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Insert | PTFE |
| Shell | Polyacetal (POM) (insulation shell) |
| Shell plating | Antraloy |
| D-shape housing | Zinc diecast (ZnAl4Cu1) |
| Temperature range | -30 ¡C to +85 ¡C |
