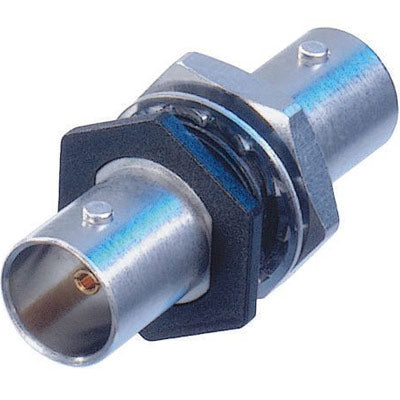

Neutrik NBB75FI Isolated 75 Ohm BNC Feedthrough Receptacle with Plastic Threads - Nickel
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The bulkhead connector offers a true 75 ohms design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use. Isolated bulkhead jack, feedthrough.
Features:- Gold plated center contact
- True 75 ohms design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Extra wide fastening nut avoids damaging the plastic thread
| Product | |
| Connector Type | BNC 75 Ohm |
| Gender | Female |
| Electrical | |
| Signal Type | HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV |
| Contact resistance | ≤ 3 mohms (inner) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 ohms |
| Insulation resistance | > 5 Gohms |
| Rated voltage | 500 V |
| VSWR | ≤ 1.03 /> 37 dB up to 1 GHz, ≤ 1.05 /> 32 dB up to 2 GHz, ≤ 1.08 /> 28 dB up to 3 GHz |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonett |
| Mounting direction | Front |
| Chassis shape | 12.7 mm |
| Material | |
| Contacts | Brass (CuZn39Pb3) (Ground contact) |
| Contacts | Brass (CuZn39Pb3/CuBe), 0.2 µm AuCo (Center contact) (Center contact) |
| Insert | Teflon PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell | Polyacetal (POM) (Insulation Sheell) |
| Shell plating | Optalloy |
| Labeling | No |
